4.19.3 Monitoring Structure

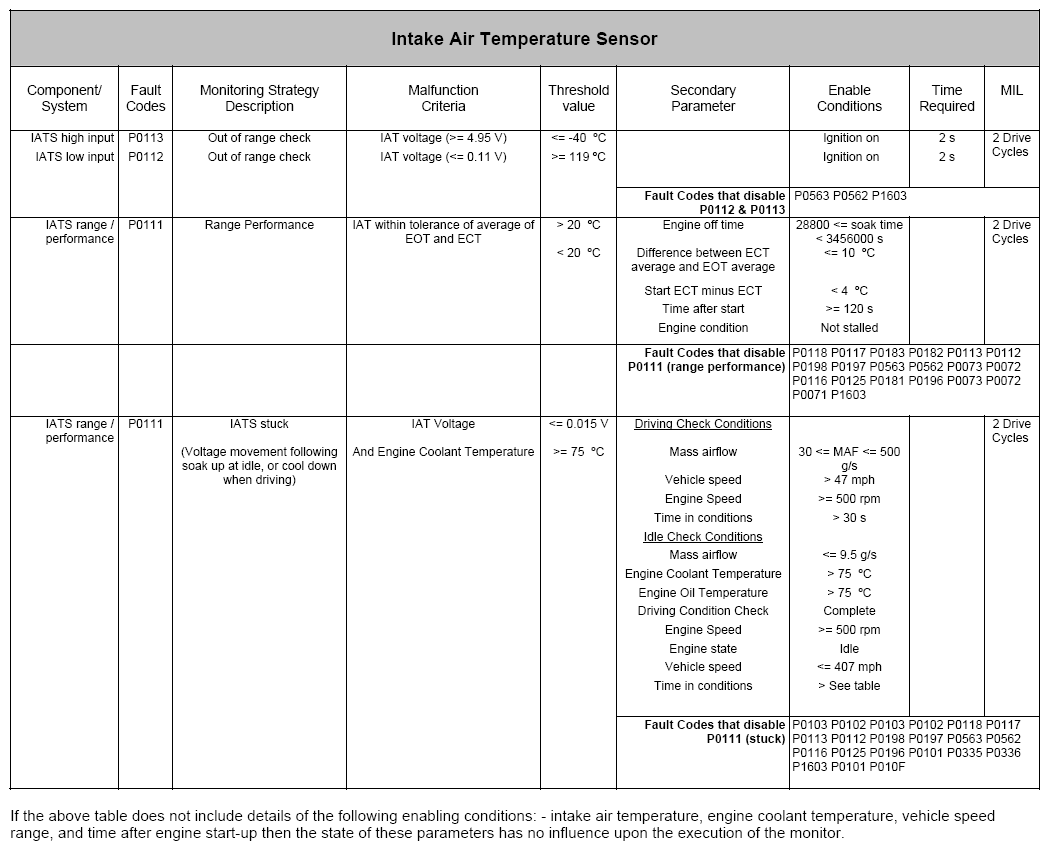

Fig 1: Intake Air Temperature Sensor (Diagnostic Trouble Codes P0111, P0112, P0113)
Courtesy of JAGUAR CARS, INC.
Fig 2: Intake Air Temperature Sensor Range Performance
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
