On Board Diagnostics - 4.2L V8
›
4 Onboard Monitoring
›
4.4 Secondary Air System (AIR) Monitoring
›
4.4.3 Monitoring Structure
4.4.3 Monitoring Structure

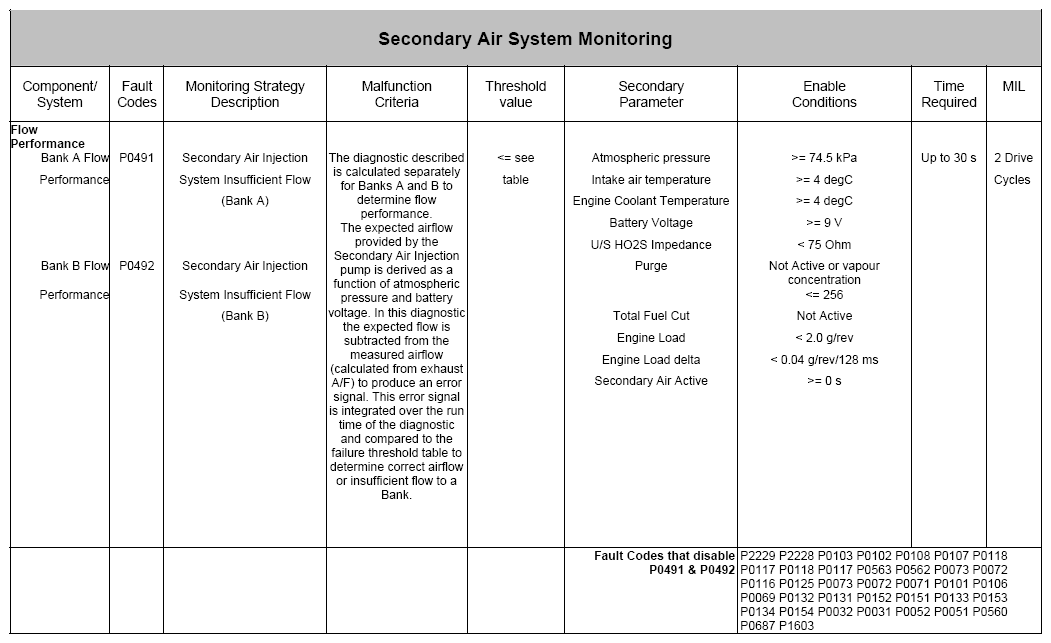

Fig 1: Secondary Air System Monitoring (Diagnostic Trouble Codes P0491, P0492 - 1 Of 2)
Courtesy of JAGUAR CARS, INC.

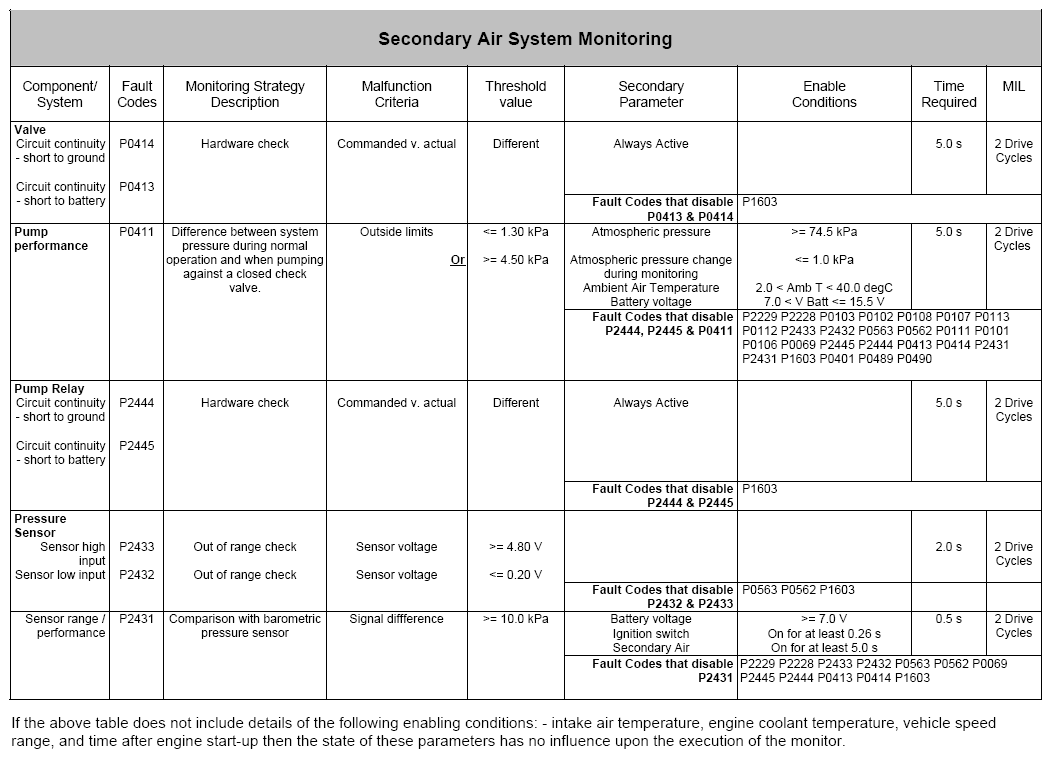

Fig 2: Secondary Air System Monitoring (Diagnostic Trouble Codes P0411, P0413, P0414, P2431, P2432, P2433, P2444, P2445 - 2 Of 2)
Courtesy of JAGUAR CARS, INC.

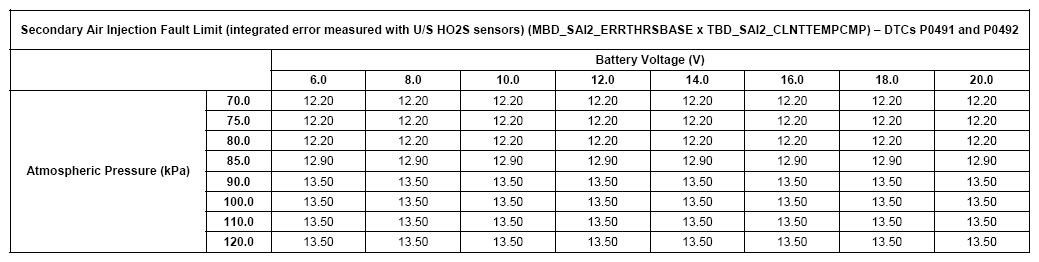

Fig 3: Secondary Air Injection Fault Chart
Courtesy of JAGUAR CARS, INC.
