On Board Diagnostics - 5.0L V8
›
2 Introduction
›
2.1 Inputs and Outputs
2.1 Inputs and Outputs

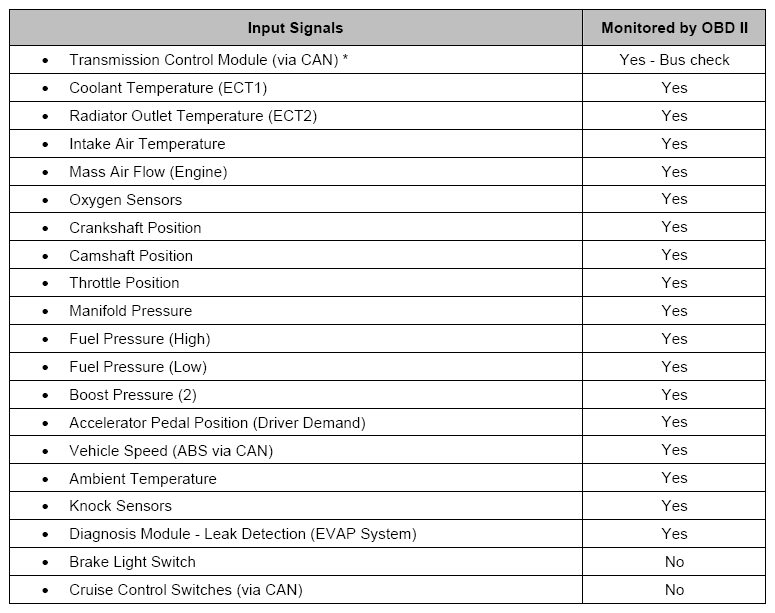

Fig 1: Input Signals Chart (1 Of 2)
Courtesy of JAGUAR CARS, INC.

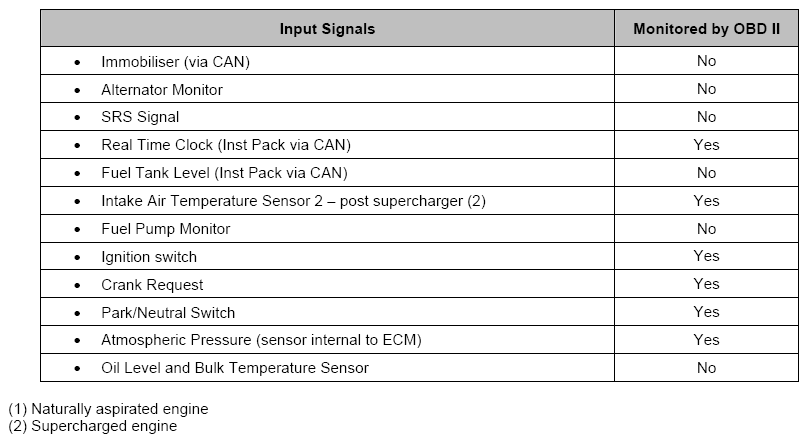

Fig 2: Input Signals Chart (2 Of 2)
Courtesy of JAGUAR CARS, INC.

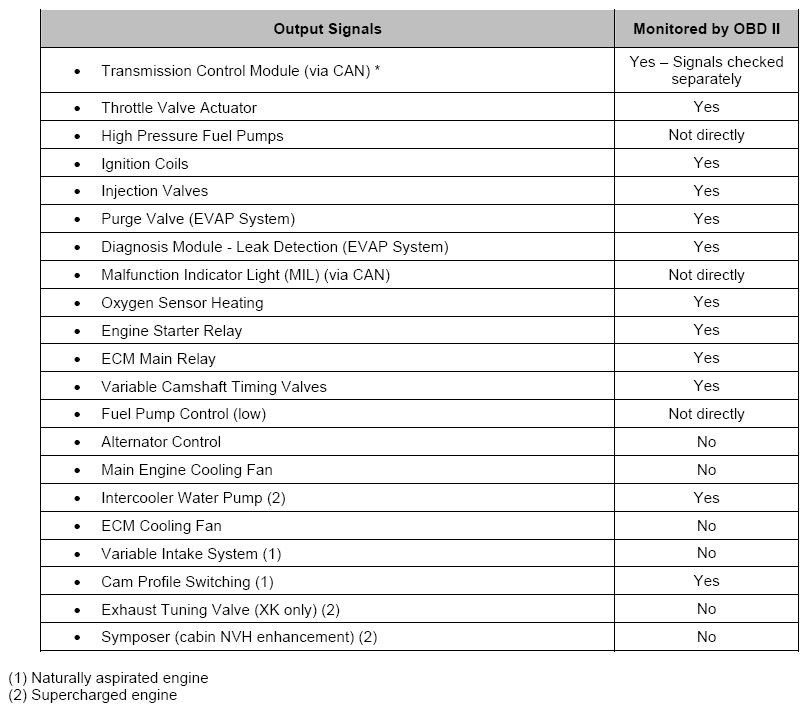

Fig 3: Output Signals Chart
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
