4.1.2 Monitoring Structure

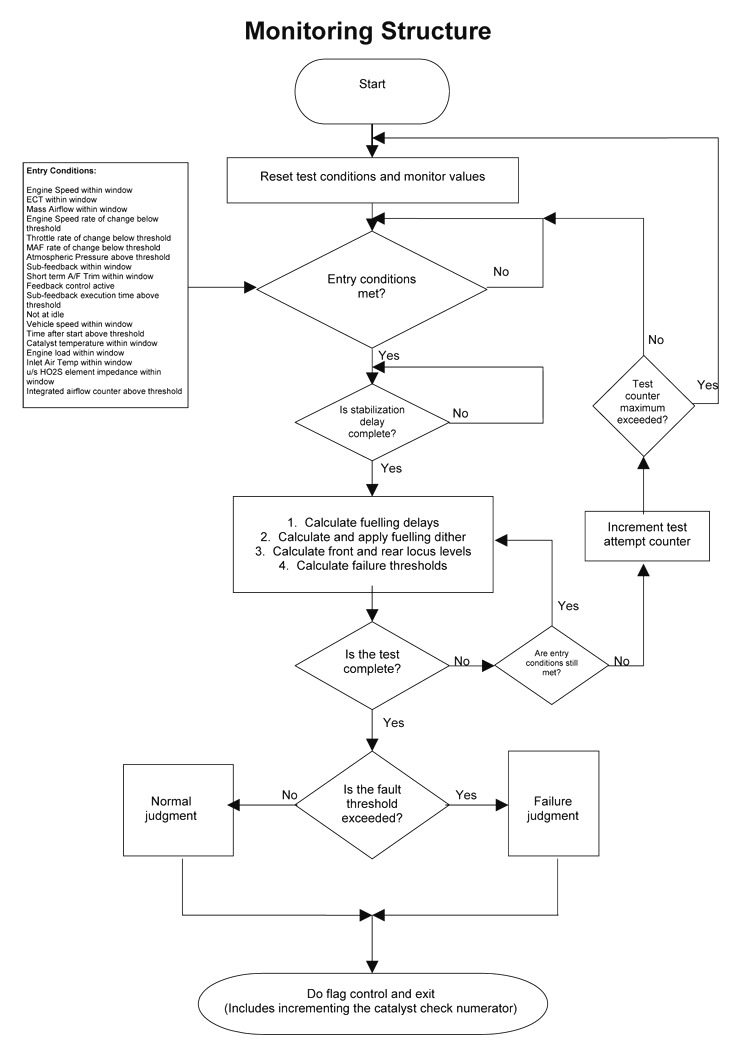

Fig 1: Monitoring Structure
Courtesy of JAGUAR CARS, INC.

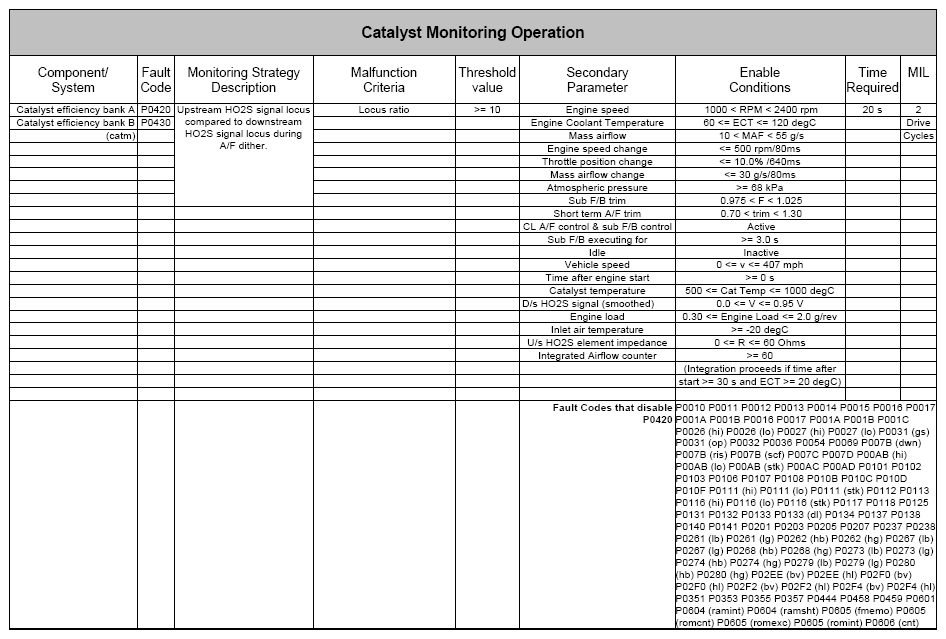

Fig 2: Catalyst Monitoring Operation (1 Of 2) (P0420, P0430)
Courtesy of JAGUAR CARS, INC.

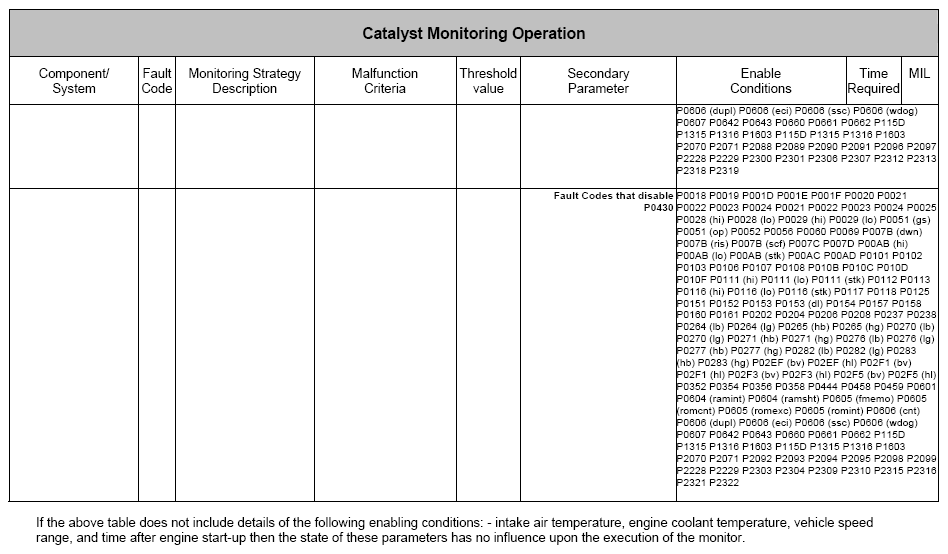

Fig 3: Catalyst Monitoring Operation (2 Of 2)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
