On Board Diagnostics - 5.0L V8
›
4 Onboard Monitoring
›
4.30 Controller Area Network System
›
4.30.1 Monitoring Structure
4.30.1 Monitoring Structure

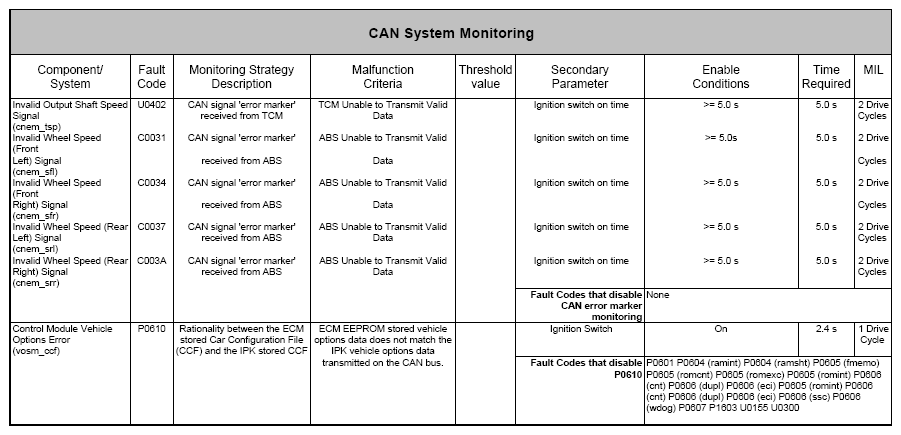

Fig 1: CAN System Monitoring (C003A, C0031, C0034, C0037, P0610, U0402)
Courtesy of JAGUAR CARS, INC.

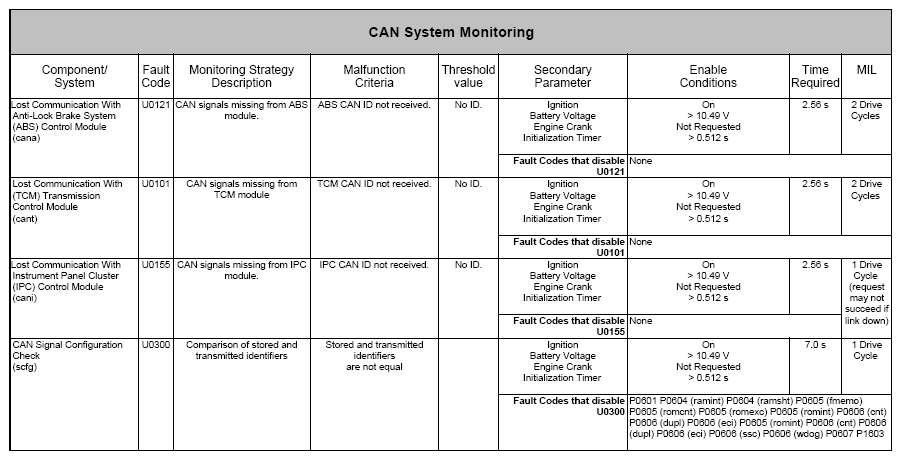

Fig 2: CAN System Monitoring (U0101, U0121, U0155, U0300)
Courtesy of JAGUAR CARS, INC.

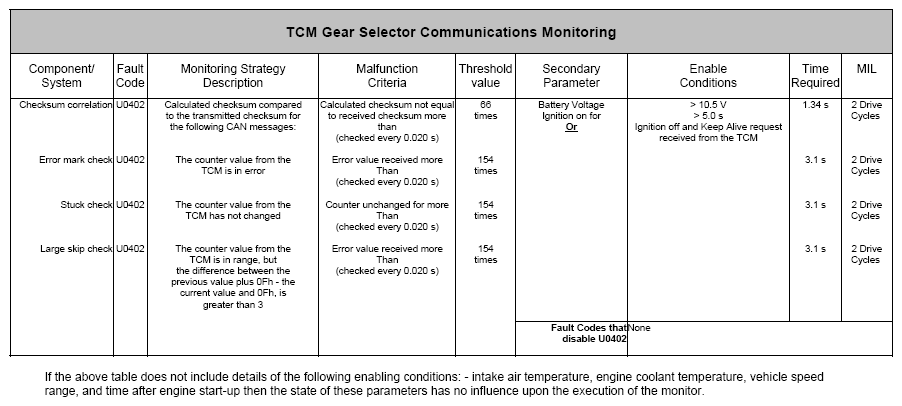

Fig 3: TCM Gear Selector Communications Monitoring (U0402)
Courtesy of JAGUAR CARS, INC.
