Adaptive Speed Control Module Adjustment (G1870613): Check

NOTE: This procedure details how to adjust the speed control sensor vertically. There is no horizontal adjustment required.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Front Bumper Cover (Removal and Installation).
NOTE: Make sure that the vehicle is standing on a level surface.

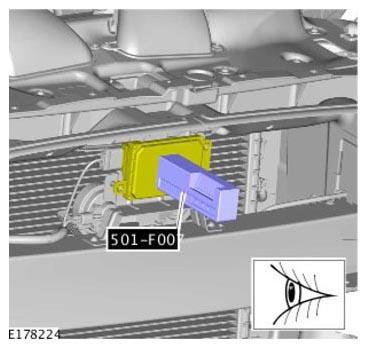

Using the special tool, check the speed control sensor is level, (+/- 0.5 degree).

Special Tool(s): 501-F007
