Hood Switch Replacement (SSM71781)
Publication date: 2014-07-31Reference number: SSM71781
Supersedes refnos: JTB00339NAS1, JTB00339NAS2, JTB00339V3
HOOD SWITCH REPLACEMENT
TECHNICAL SERVICE BULLETIN
Reference Number(s): JTB00339v3, Date of Issue:
July 31, 2014
Superceded Bulletin(s): JTB00339v2/2014, Date of Issue:
March 11, 2014
| JAGUAR: | 2012-2014 XJ Range (X351) |
| SECTION: | 501-00 |
| VIN: | V22230-V62119 |
NOTE:
This reissue replaces all previous versions. Please destroy all previous versions. Only refer to the electronic version of this Technical Bulletin in TOPIx.
This bulletin supersedes TSB JTB00339v2/2014 dated 11 MAR 2014, which should either be destroyed or clearly marked to show it is no longer valid (e.g. with a line across the page). Only refer to the electronic version of this Technical Bulletin in TOPIx.
This bulletin supersedes TSB JTB00339v2/2014 dated 11 MAR 2014, which should either be destroyed or clearly marked to show it is no longer valid (e.g. with a line across the page). Only refer to the electronic version of this Technical Bulletin in TOPIx.
AFFECTED VEHICLE RANGE
XJ Range (X351)
Model Year: 2012-2014
VIN: V22230-V62119
MARKETS
All
CONDITION SUMMARY
Situation: A customer may report a concern that the hood open warning light is illuminated.
This version has been issued for a change to the VIN Range.
Cause: Hood open switch failure, illuminating warning light on the instrument cluster. Suggested Customer Concern Code L19.
Action: Should a customer express concern, follow the Service Instruction outlined below.
PARTS
PARTS
| C2D35424 | Hood Latch | Quantity: 1 |
TOOLS
No Tools Required
WARRANTY
NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to TOPIx to obtain the latest repair time.
NOTE:
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
WARRANTY
| DESCRIPTION | SRO | TIME (HOURS) | CONDITION CODE | CAUSAL PART |
|---|---|---|---|---|
| Hood Open Switch Renew | 86.65.99 | 0.3 | 42 | C2D5991 |
NOTE:
Normal Warranty policies and procedures apply.
SERVICE INSTRUCTION
- Open the hood.

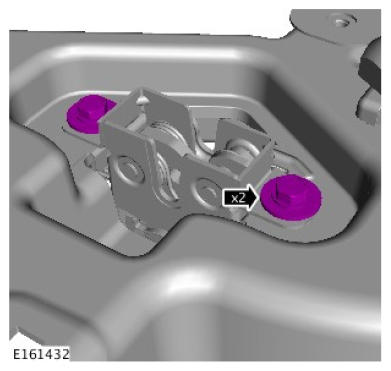

- Remove the two bolts.

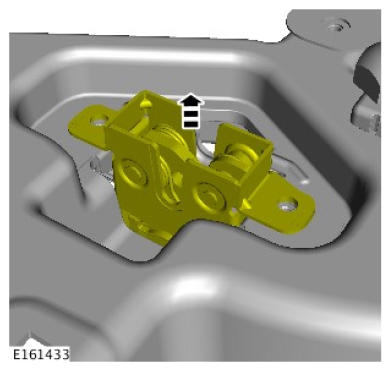

- Lift the hood catch upwards to allow access to the spacer.

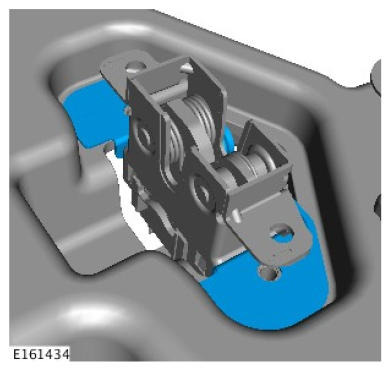

- Remove the spacer.

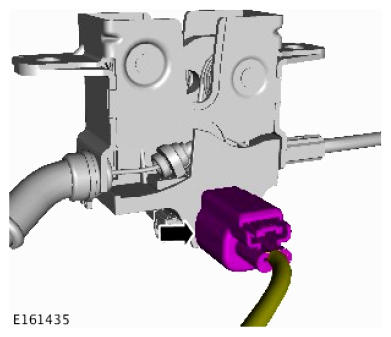

- Disconnect the electrical connector.

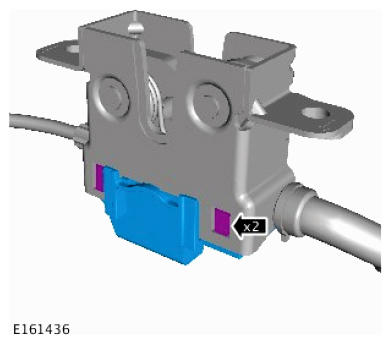

- Release the two clips.

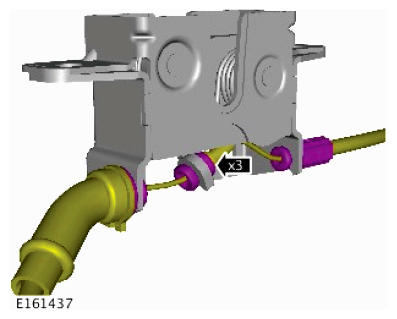

- Release the hood cable.NOTE: On the new latch assembly the switch element is now integrated.
- To install reverse the removal procedure.
