Second Generation 'Smart Key Health CHECK' Function On SDD (SSM71985)

Publication date: 2014-10-01
Reference number: SSM71985

SECOND GENERATION 'SMART KEY HEALTH CHECK' FUNCTION ON SDD

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM71985, Date of Issue: 01-Oct-2014

JAGUAR:	XK/X150, F-TYPE/X152, XJ/X351, XF/X250
CATEGORY:	Diagnostic Software Hardware

SERVICE INFORMATION

Symptom 000101 Diagnostic Concerns

Attachments Smart Key Health Check Quick Reference Guide v2b.pdf (Smart Key Health Check Quick Reference Guide v2b.pdf)

Content

UPDATED

Version 2 of the PDF attachment has been expanded to include screenshots and text that further clarifies the functionality and behavior of this application.

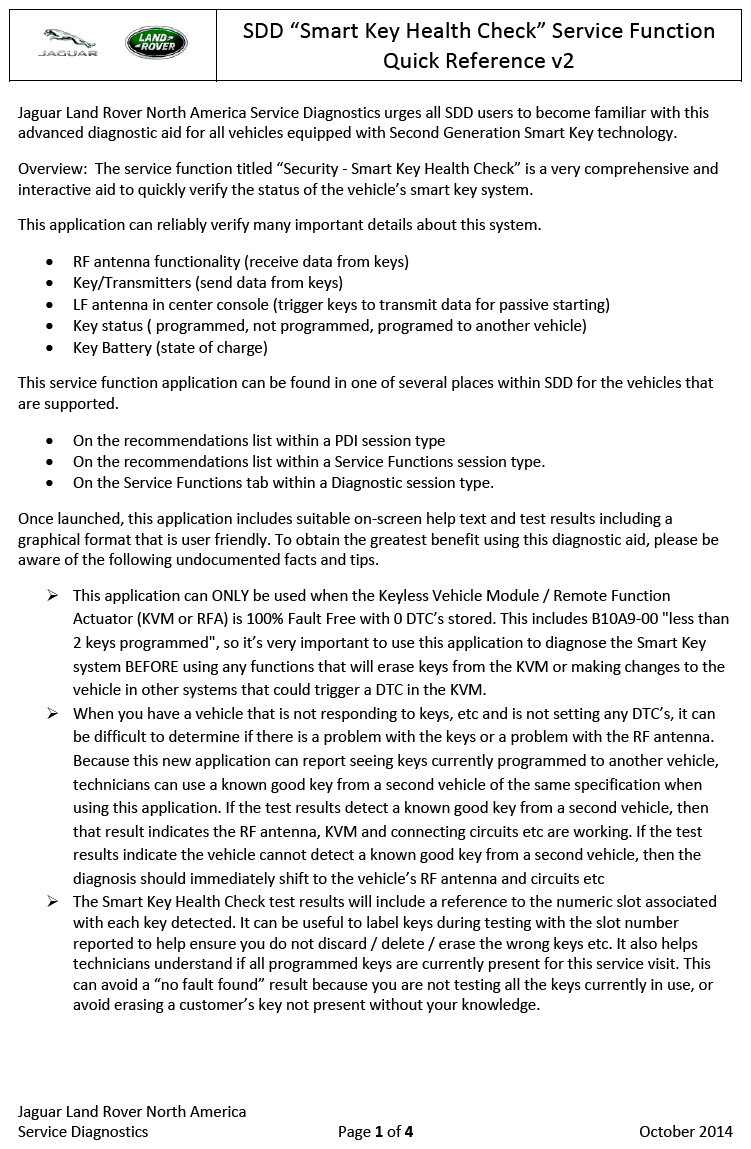

Jaguar Land Rover North America Service Diagnostics urges all SDD users to become familiar with this advanced diagnostic aid for all vehicles equipped with Second Generation Smart Key technology.

OVERVIEW

The service function titled "Security - Smart Key Heath Check" is a very comprehensive and interactive aid to quickly verify the status of the vehicle's smart key system.

This application can reliably verify many important details about this system.

RF antenna functionality (receive data from keys)
Key/Transmitters (send data from keys)
LF antenna in center console (trigger keys to transmit data for passive starting)
Key status (programmed, not programmed, programed to another vehicle)
Key Battery (state of charge)

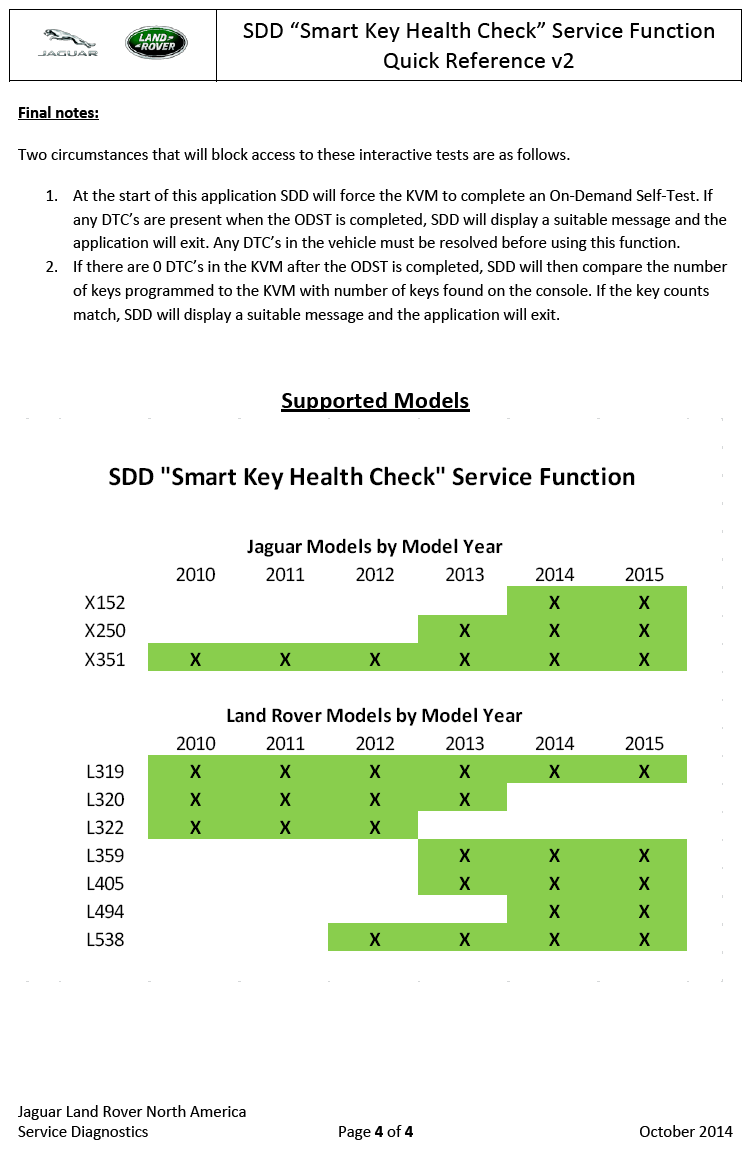

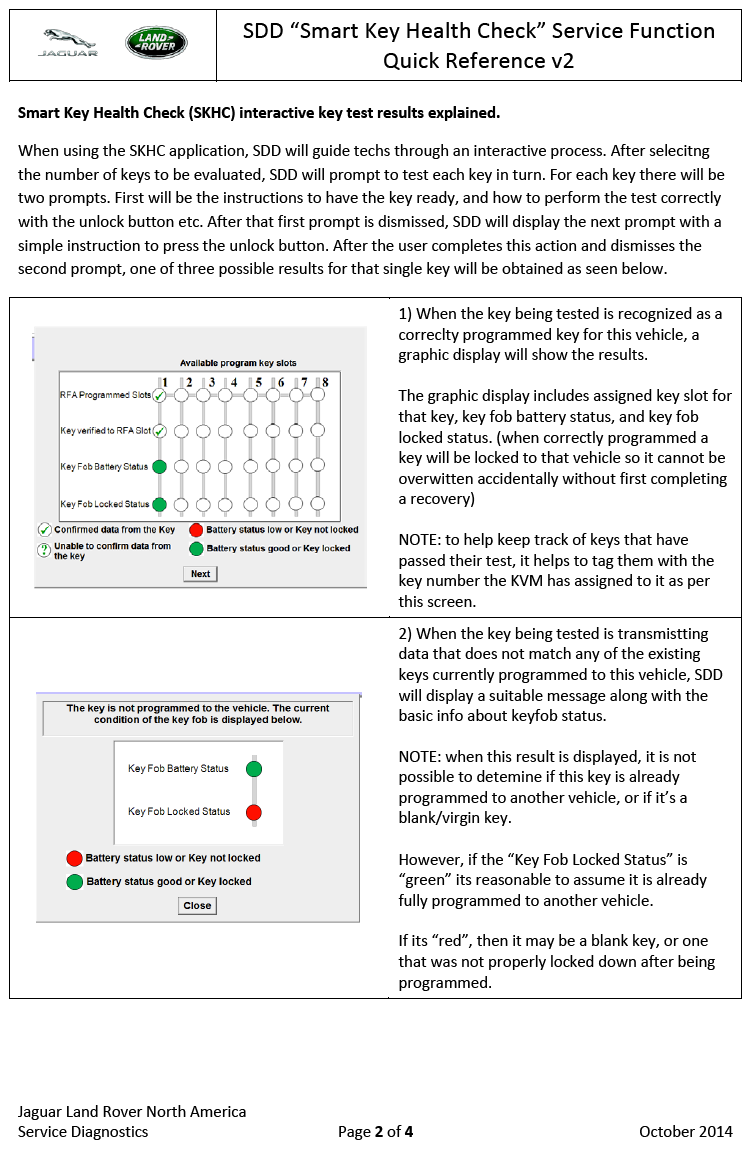

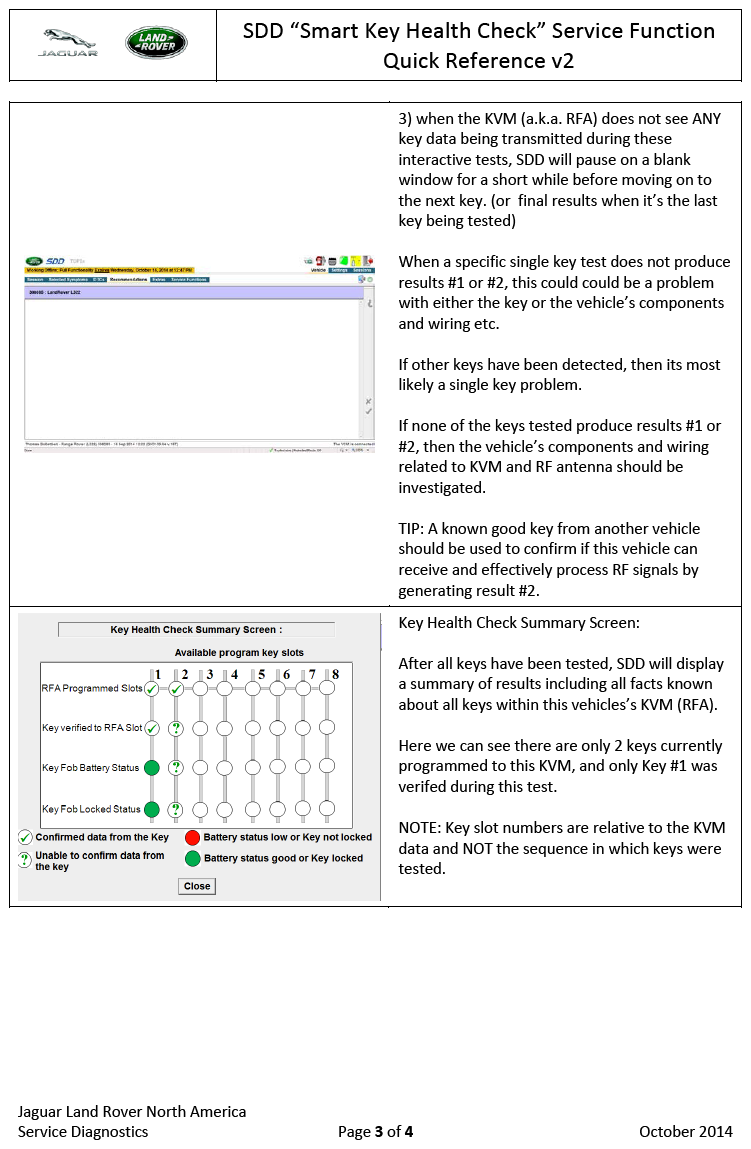

For complete details please see the attached PDF file.
