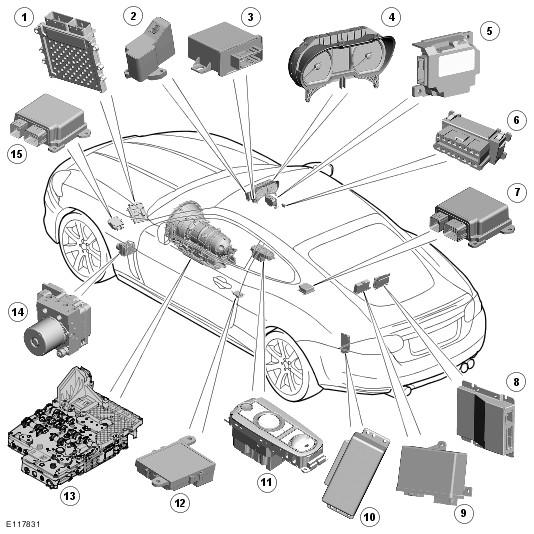

Component Location - High Speed Can Bus
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | ECM (engine control module) |
| 2 | Steering column lock |
| 3 | Adaptive front lighting module |
| 4 | Instrument cluster |
| 5 | Adaptive speed control module |
| 6 | Diagnostic socket |
| 7 | RCM (restraints control module) |
| 8 | ADCM (active damping control module) |
| 9 | EPB (electric park brake) module |
| 10 | DLM (differential locking module) |
| 11 | JaguarDrive selector module |
| 12 | Occupancy sensor module |
| 13 | TCM (transmission control module) |
| 14 | ABS module |
| 15 | Pedestrian protection system module |
