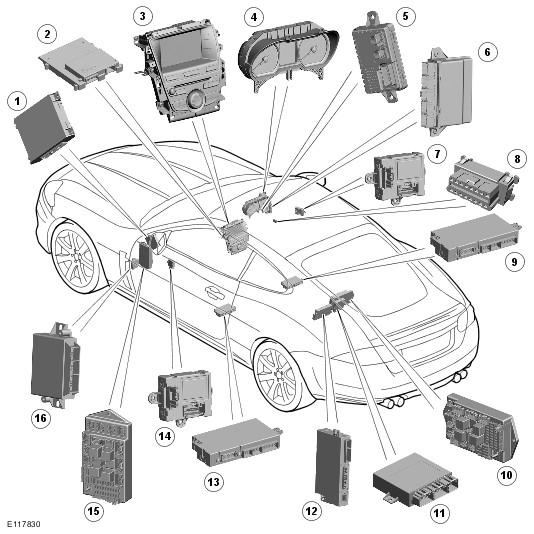

Component Location - Medium Speed Can Bus
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | ATC module |
| 2 | Information and entertainment module |
| 3 | Integrated control panel |
| 4 | Instrument cluster |
| 5 | Seat climate control module |
| 6 | Keyless vehicle module |
| 7 | Driver door module |
| 8 | Diagnostic socket |
| 9 | Driver seat module |
| 10 | AJB (auxiliary junction box) |
| 11 | TPMS (tire pressure monitoring system) module |
| 12 | Convertible top control module (convertible vehicle only) |
| 13 | Passenger seat module |
| 14 | Passenger door module |
| 15 | CJB |
| 16 | Parking aid module |
