Component Location - Most Bus
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

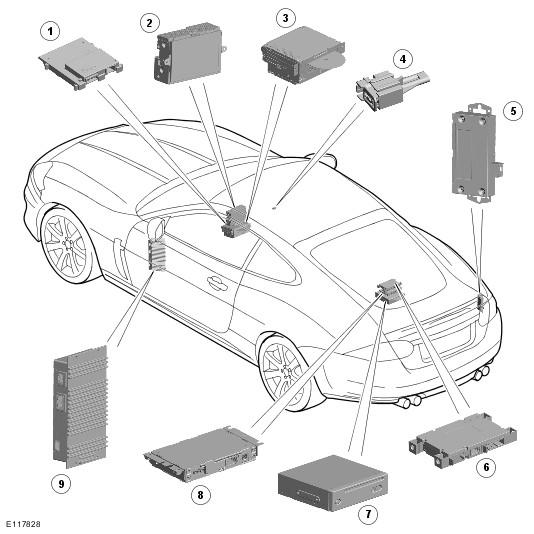

| Item Number | Description |
|---|---|
| 1 | Information and entertainment module |
| 2 | TSD (touch screen display) |
| 3 | Integrated audio module |
| 4 | Software download socket |
| 5 | Auxiliary USB (universal serial bus) unit |
| 6 | Cellular phone module |
| 7 | Navigation computer |
| 8 | SDARS/DAB (satellite digital audio radio service/digital audio broadcasting) module (where fitted) |
| 9 | Audio amplifier |
