Removal And Installation: Removal

  1. Remove the cover and disconnect the battery ground cable.

    For additional information, Refer To: BATTERY, MOUNTING AND CABLES (Specifications).

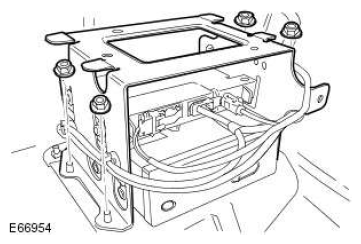

  2. G11523962

    Release the navigation system module bracket.

    • Remove the 4 nuts.

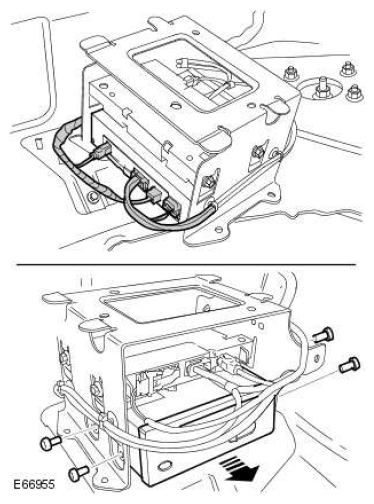

  3. G11523963

    Remove the navigation system module.

    • Disconnect the 4 electrical connectors.
    • Remove the 4 Torx bolts.
