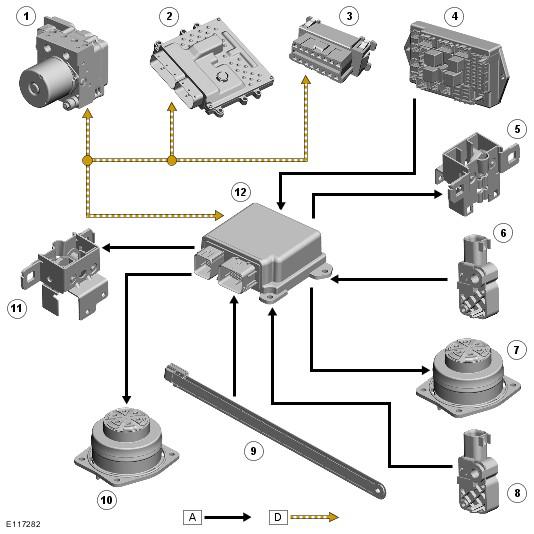

Control Diagram
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D = High speed controller area network (CAN) bus
| Item Number | Description |
|---|---|
| 1 | ABS (anti-lock brake system) module |
| 2 | ECM (engine control module) |
| 3 | Diagnostic socket |
| 4 | AJB (auxiliary junction box) |
| 5 | Hood latch |
| 6 | Accelerometer |
| 7 | Hood actuator |
| 8 | Accelerometer |
| 9 | PCS |
| 10 | Hood actuator |
| 11 | Hood latch |
| 12 | Pedestrian protection system control module |
