Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. For additional information, refer to: BATTERY DISCONNECT AND CONNECT .
  3. For additional information, refer to: COWL VENT SCREEN .
  4. CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

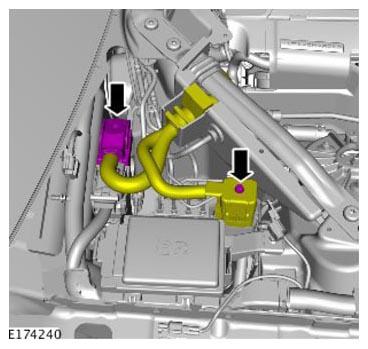

    G11308728

    Torque Specification: 3.5 Nm

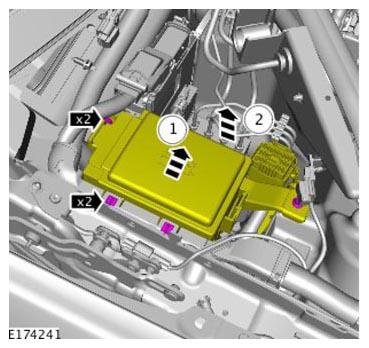

  5. G11308729

    Torque Specification: 4 Nm

  6. CAUTION:
    • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
    • If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

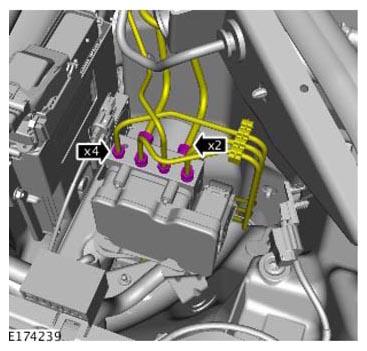

    G11308730

    Torque Specification: 17 Nm

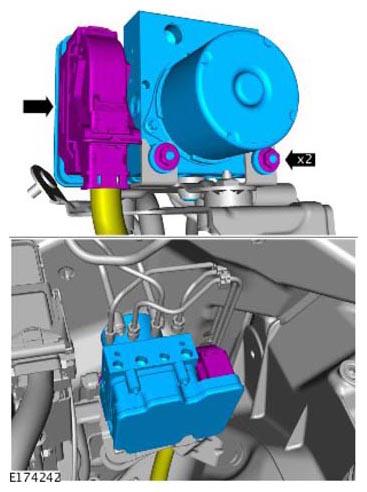

  7. G11308731

    Torque Specification: 8 Nm

    • Loosen but do not remove the 2 nuts.
