Cooling Module (G2218804): Removal

WARNING: Be prepared to collect escaping coolant.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Refer to: SUPPLEMENTARY RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Recover the air conditioning (A/C) refrigerant.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
Disconnect the startup battery ground cable.
Refer to: 12V SYSTEM DISCONNECT .
Remove the front compartment left trim panel.
Refer to: FRONT COMPARTMENT LEFT TRIM PANEL .
Remove the front compartment right trim panel.
Refer to: FRONT COMPARTMENT RIGHT TRIM PANEL .
Remove the front bumper.
Refer to: FRONT BUMPER .
Drain the cooling system.
Refer to: ELECTRIC DRIVE COOLING SYSTEM DRAIN AND FILL .
Drain the cooling system.
Refer to: CLIMATE CONTROL COOLING SYSTEM DRAIN AND FILL .
Drain the cooling system.
Refer to: ELECTRIC VEHICLE BATTERY COOLANT DRAINING AND FILLING .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

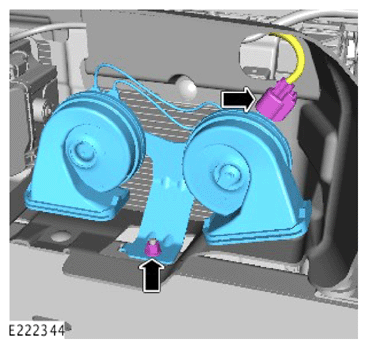

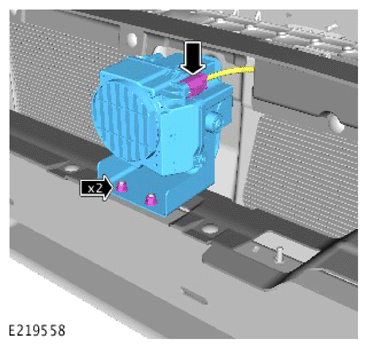

Remove the horn.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the speaker.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

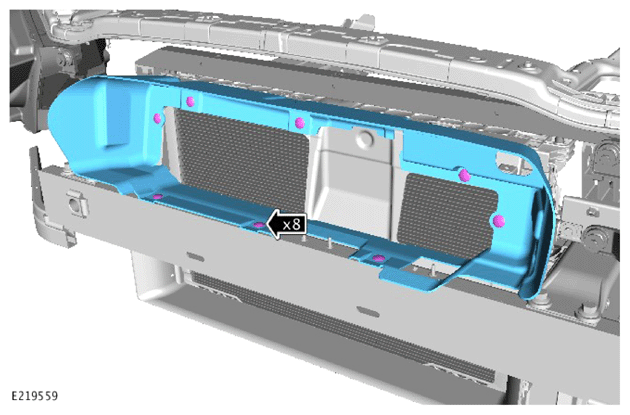

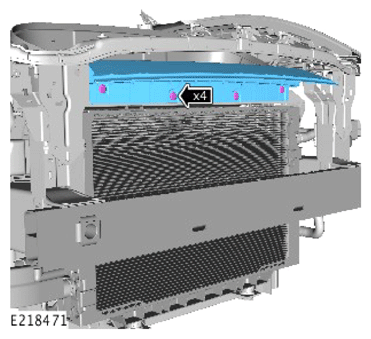

Remove the cooling module air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the front loadspace finisher panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

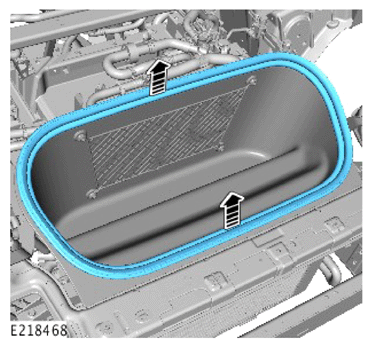

Remove the front loadspace weatherstrip seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

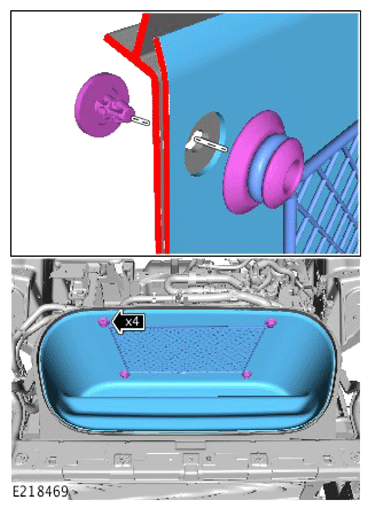

Remove the front loadspace liner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

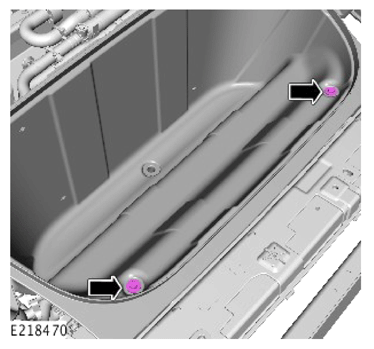

Remove the 2 front loadspace retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

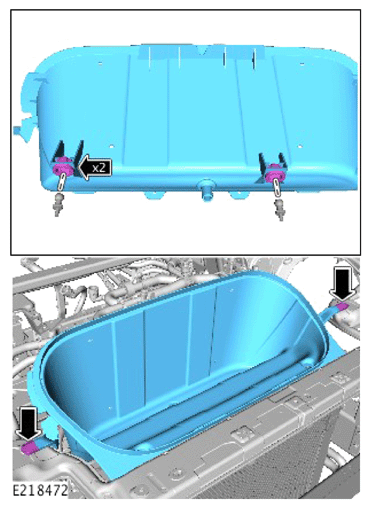

Remove the front loadspace.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

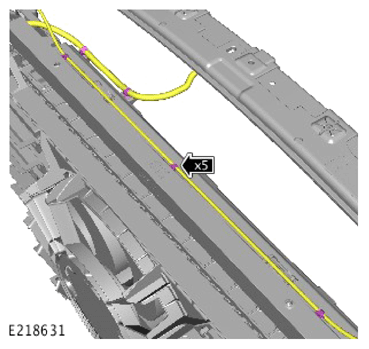

Release the cable and wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

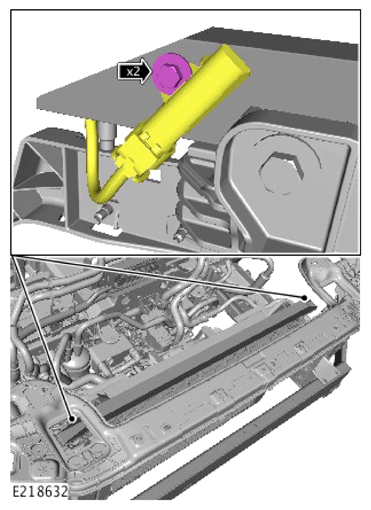

Remove the sensor retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

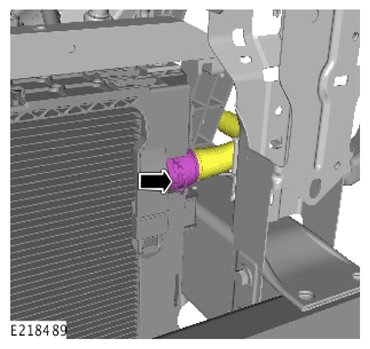

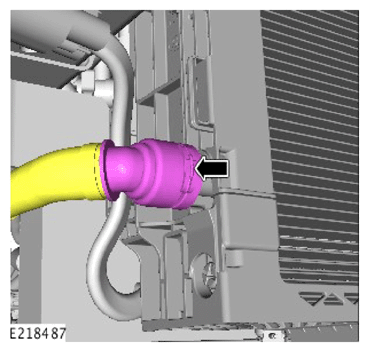

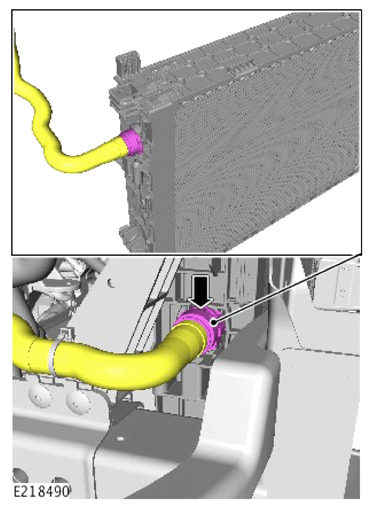

Disconnect the right side lower coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

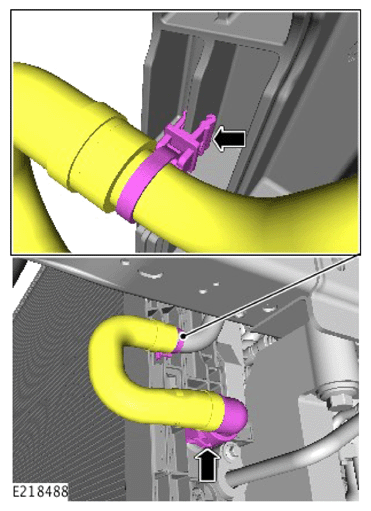

Disconnect the left side lower coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

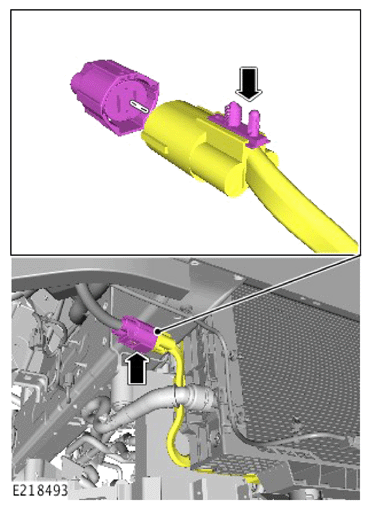

Disconnect the left side upper coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the right side upper coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release and disconnect the cooling fan electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

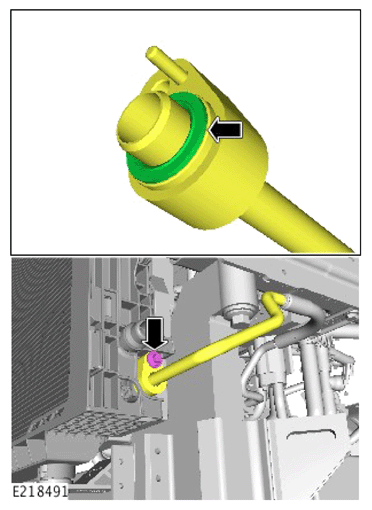

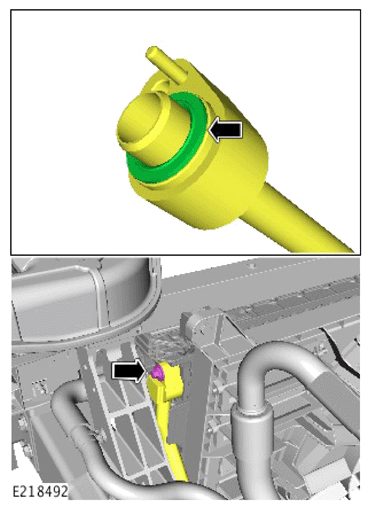

- Disconnect the upper A/C pipe.
- Remove and discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the lower A/C pipe.
- Remove and discard the seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

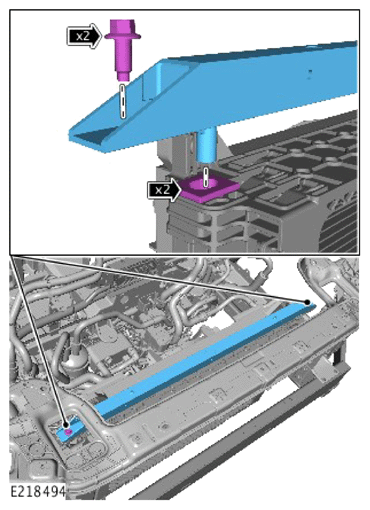

Remove the cooling module upper mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

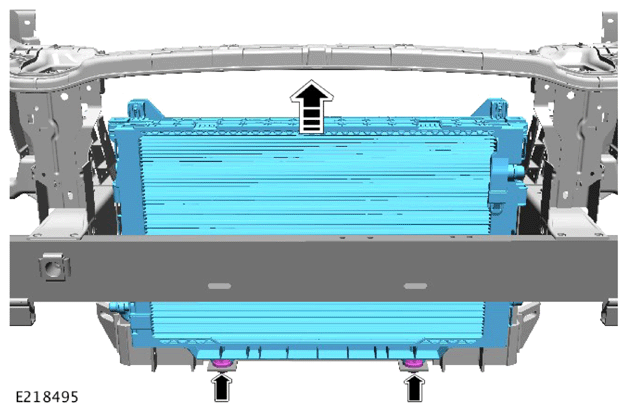

Remove the cooling module.
