Evaporative Emissions System: Maintenance

Replace charcoal canister filter after first 18, 000 miles of operation and every 12, 000 miles thereafter. Install new filter and position it evenly around entire bottom of canister.

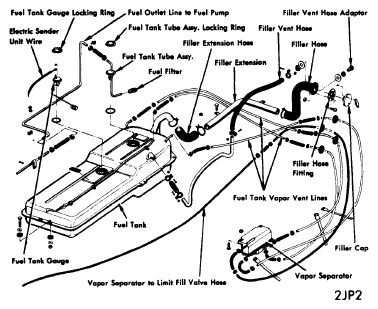

Fig 1: FUEL TANK & VENT LINES 1972 WAGONEER

G09325275

Courtesy of CHRYSLER GROUP, LLC

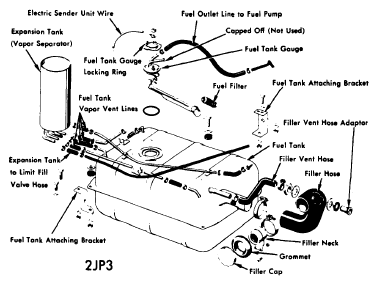

Fig 2: FUEL TANK & VENT LINES 1972 CJ-5 & 6

G09325276

Courtesy of CHRYSLER GROUP, LLC

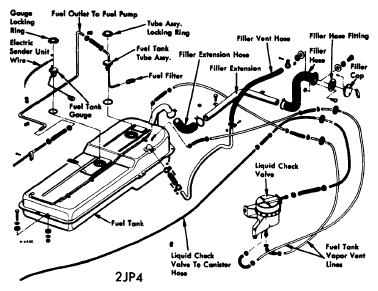

Fig 3: FUEL TANK & VENT LINES 1973-74 CHEROKEE & WAGONEER

G09325277

Courtesy of CHRYSLER GROUP, LLC

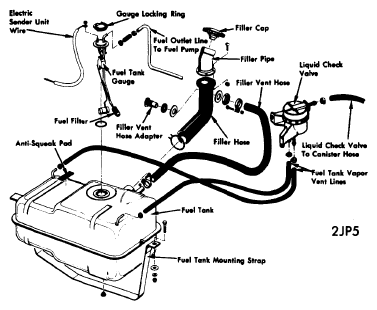

Fig 4: FUEL TANK & VENTS LINES 1973-74 TRUCK

G09325278

Courtesy of CHRYSLER GROUP, LLC

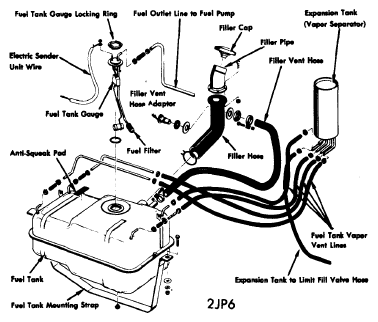

Fig 5: FUEL TANK & VENT LINES 1972 TRUCK

G09325279

Courtesy of CHRYSLER GROUP, LLC

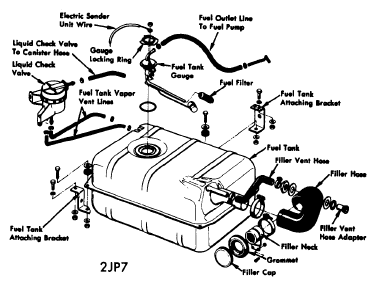

Fig 6: FUEL TANK & VENT LINES 1973-74 CJ-5 & 6.

G09325280

Courtesy of CHRYSLER GROUP, LLC

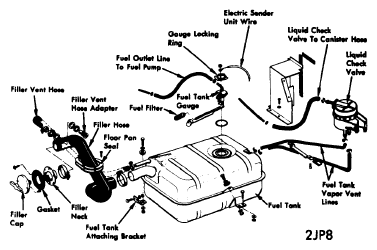

Fig 7: FUEL TANK & VENT LINES 1973 COMMANDO

G09325281

Courtesy of CHRYSLER GROUP, LLC
