Window Regulator & Motor
- Remove carpet and tailgate access cover plate. Remove retainers attaching regulator arms to channel. Disengage regulator arm pins from channel and raise glass.
- Carefully support glass in raised position. If regulator attaching screws are covered by sector gears, disconnect motor drive from gear regulator. Grasp regulator arm as far outboard as access hole will allow.

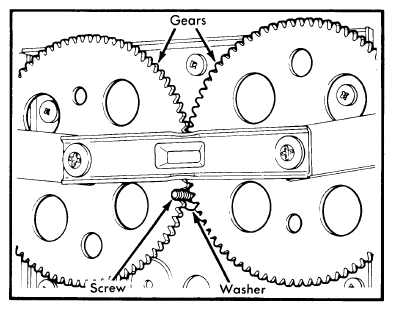

- Push down on arm until holes in sector gears align with attaching screws and motor. Hold regulator in this position and wedge a 1/4" screw between meshing teeth. Remove regulator attaching screws, regulator and motor. Release spring tension by using a large screwdriver to snap spring from under tension bracket.
- To install, reverse removal procedure.

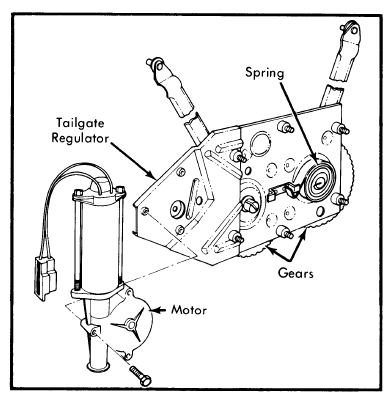

Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
