Power Door Locks: Testing: Switch

Test switches for continuity using an ohmmeter. Connect ohmmeter across terminals as shown in Fig 1. Continuity should exist between terminals in all positions.

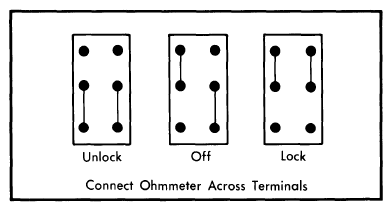

Fig 1: Checking Switch For Continuity

Courtesy of CHRYSLER GROUP, LLC
