MOTORCRAFT Solid State Ignition (SSI): Overhaul: Distributor: Reassembly

Reverse disassembly procedure, being sure to coat brass surface of rotor with silicone grease. If sensor or vacuum unit was replaced, check ignition timing.

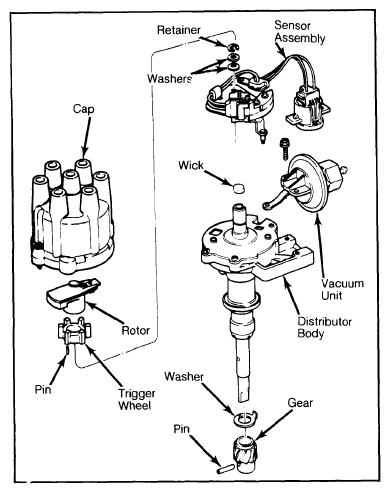

Fig 1: Exploded View Of Jeep SSI Distributor

Courtesy of FORD MOTOR CO.

These patterns also apply to Motorcraft Dura-Spark II systems.
