4.2L Feedback Carburetor System
›
Component Testing
›
Test No. 12 - Basic Engine Test
Test No. 12 - Basic Engine Test

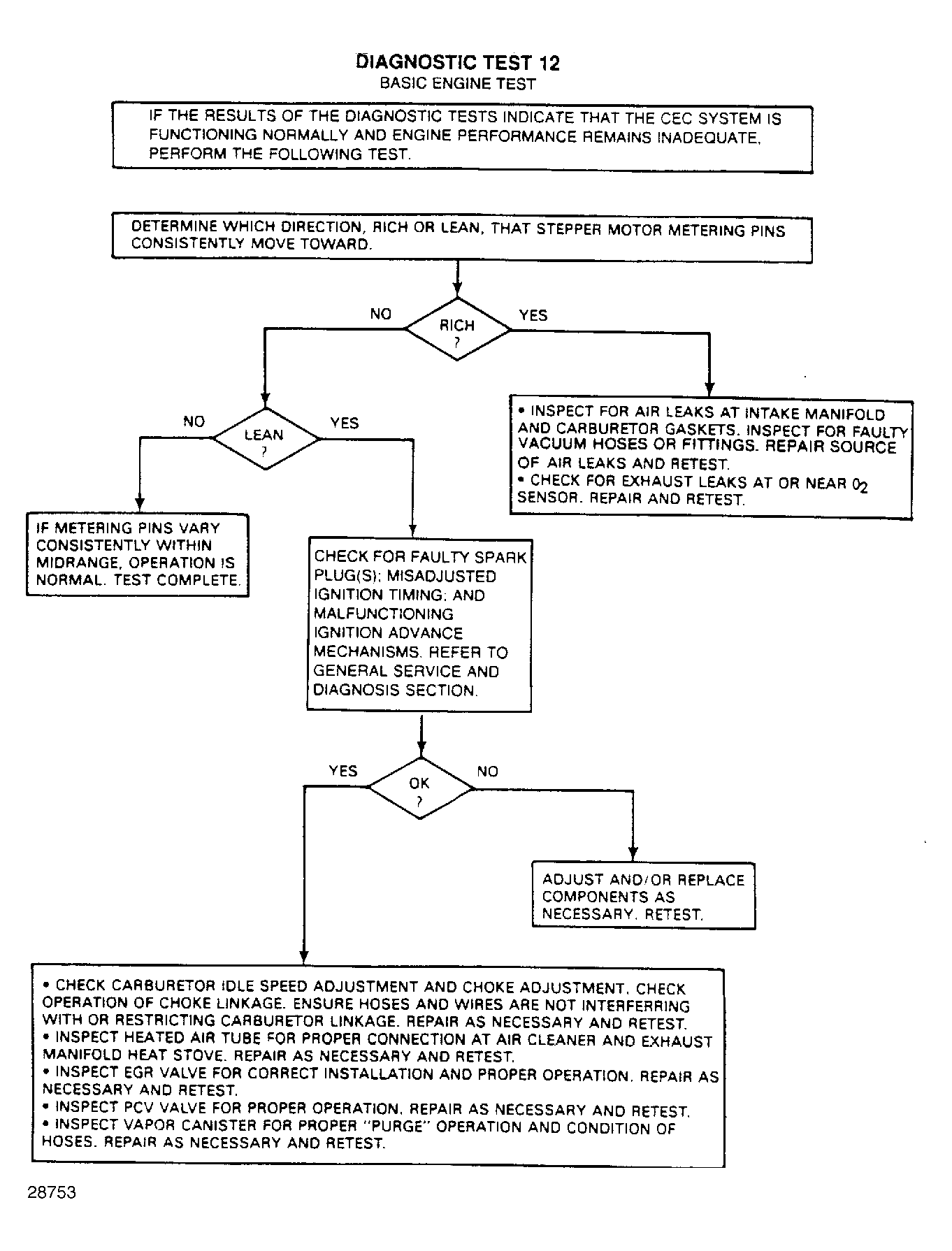

Fig 1: Test No. 12, Basic Engine Test
