Test No. 6 - O2 Sensor 7 Closed Loop Test

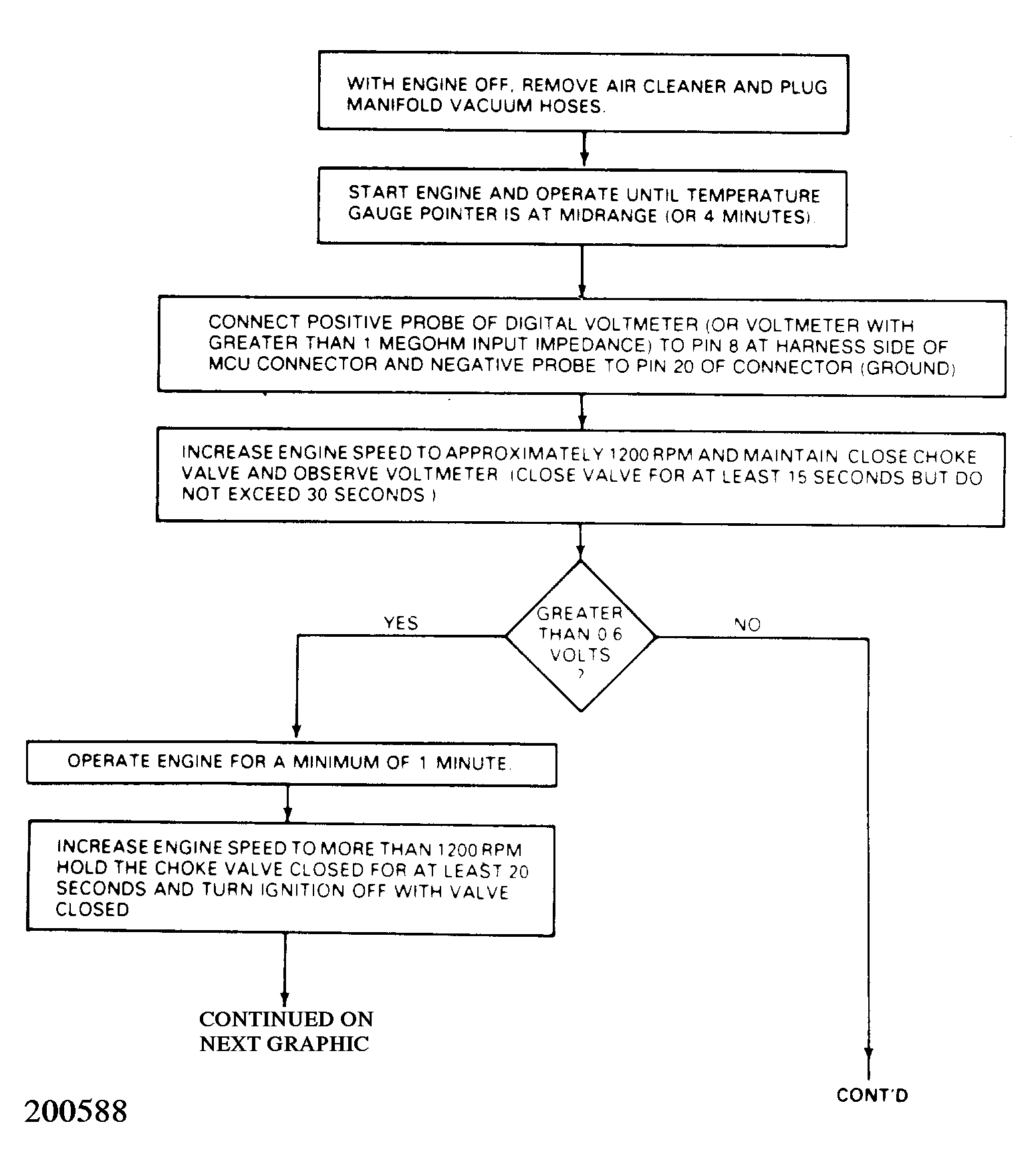

Fig 1: Test No. 6, Oxygen Sensor & Closed Loop Test (1 of 2)

G200588

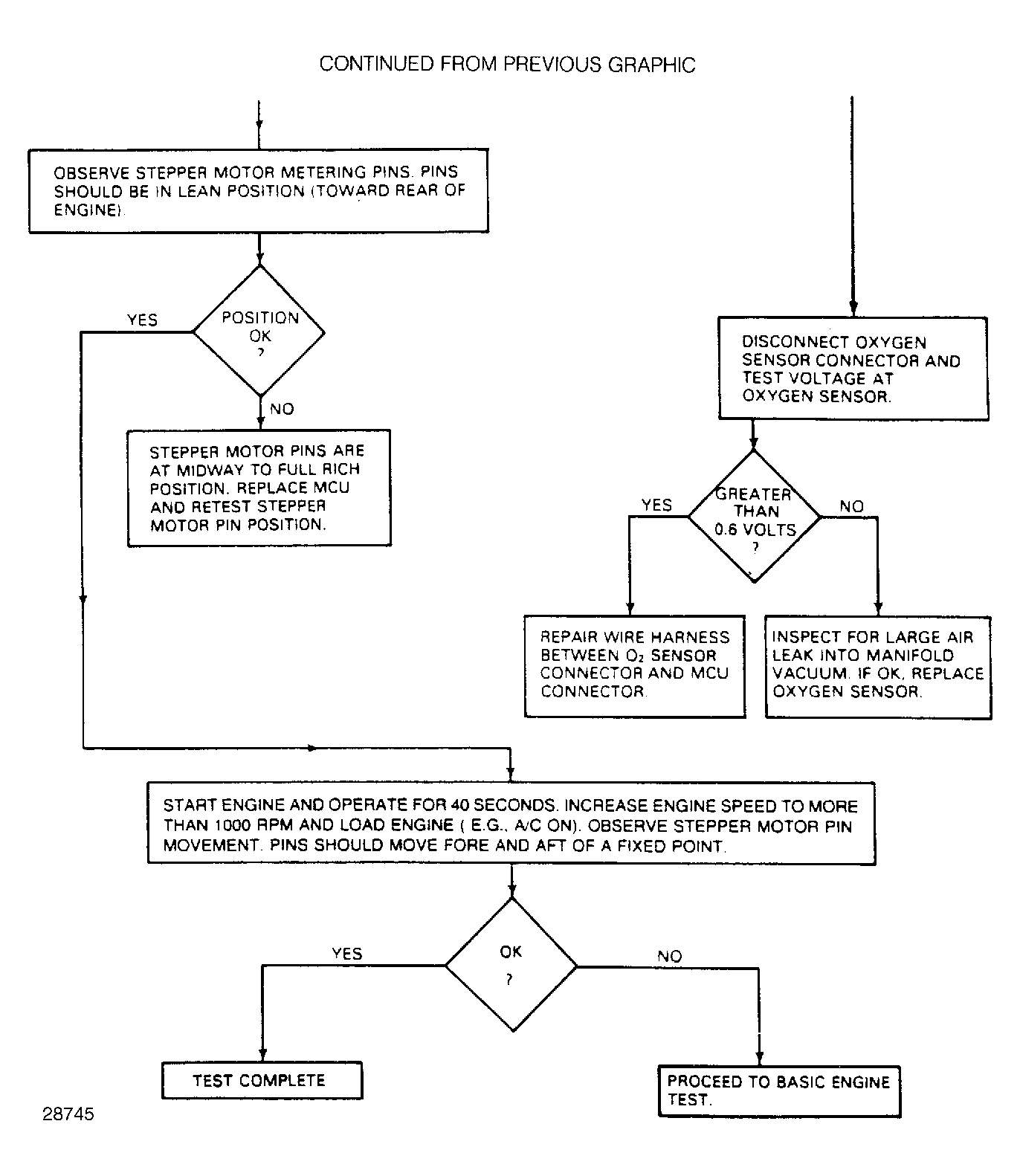

Fig 2: Test No. 6, Oxygen Sensor & Closed Loop Test (2 of 2)

G28745
