Test No. 7 - Downstream Solenoid Test

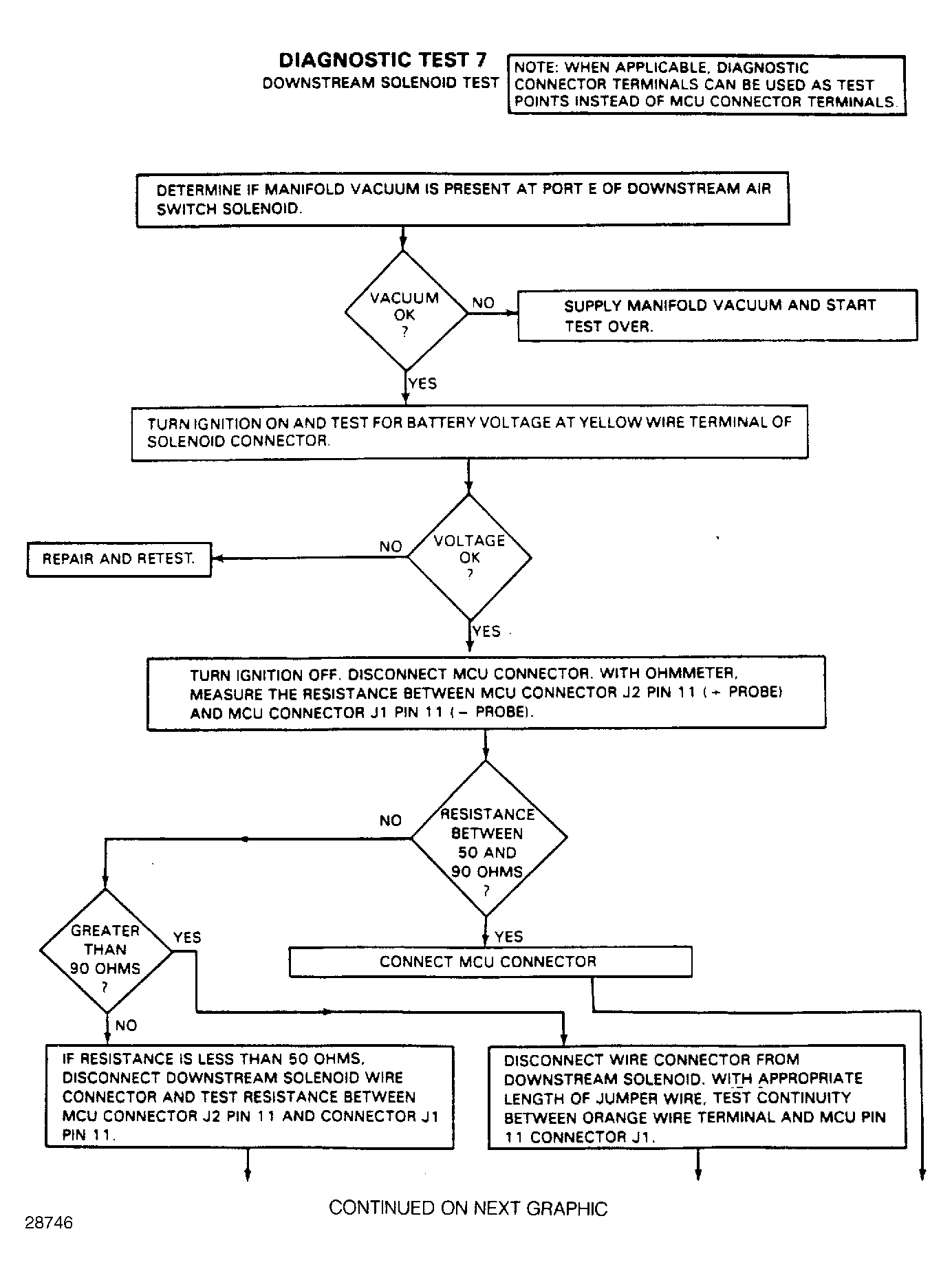

Fig 1: Test No. 7, Downstream Solenoid Test (1 of 2)

G28746

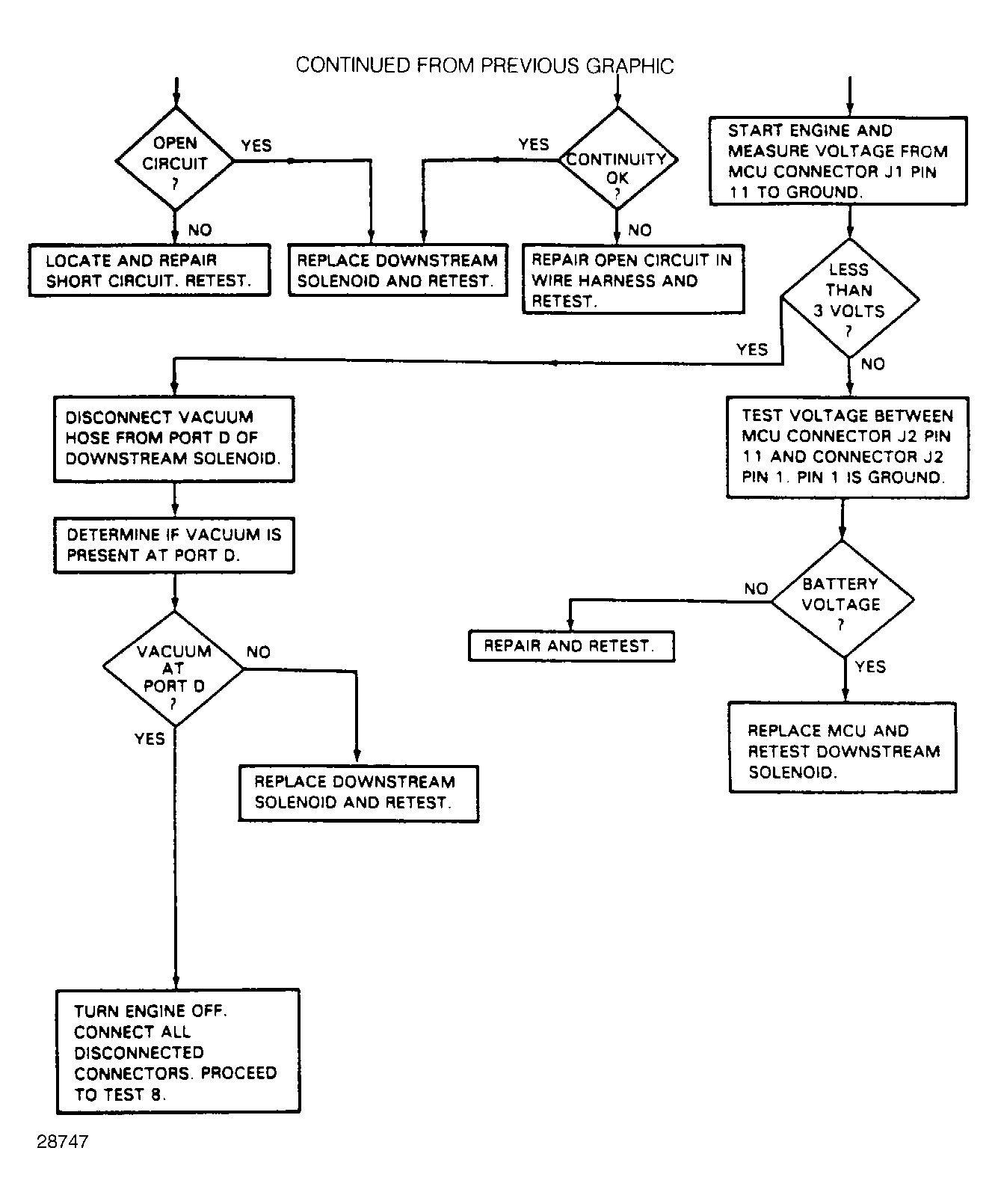

Fig 2: Test No. 7, Downstream Solenoid Test (2 of 2)

G28747
