Test No. 8 - Upstream Solenoid Test

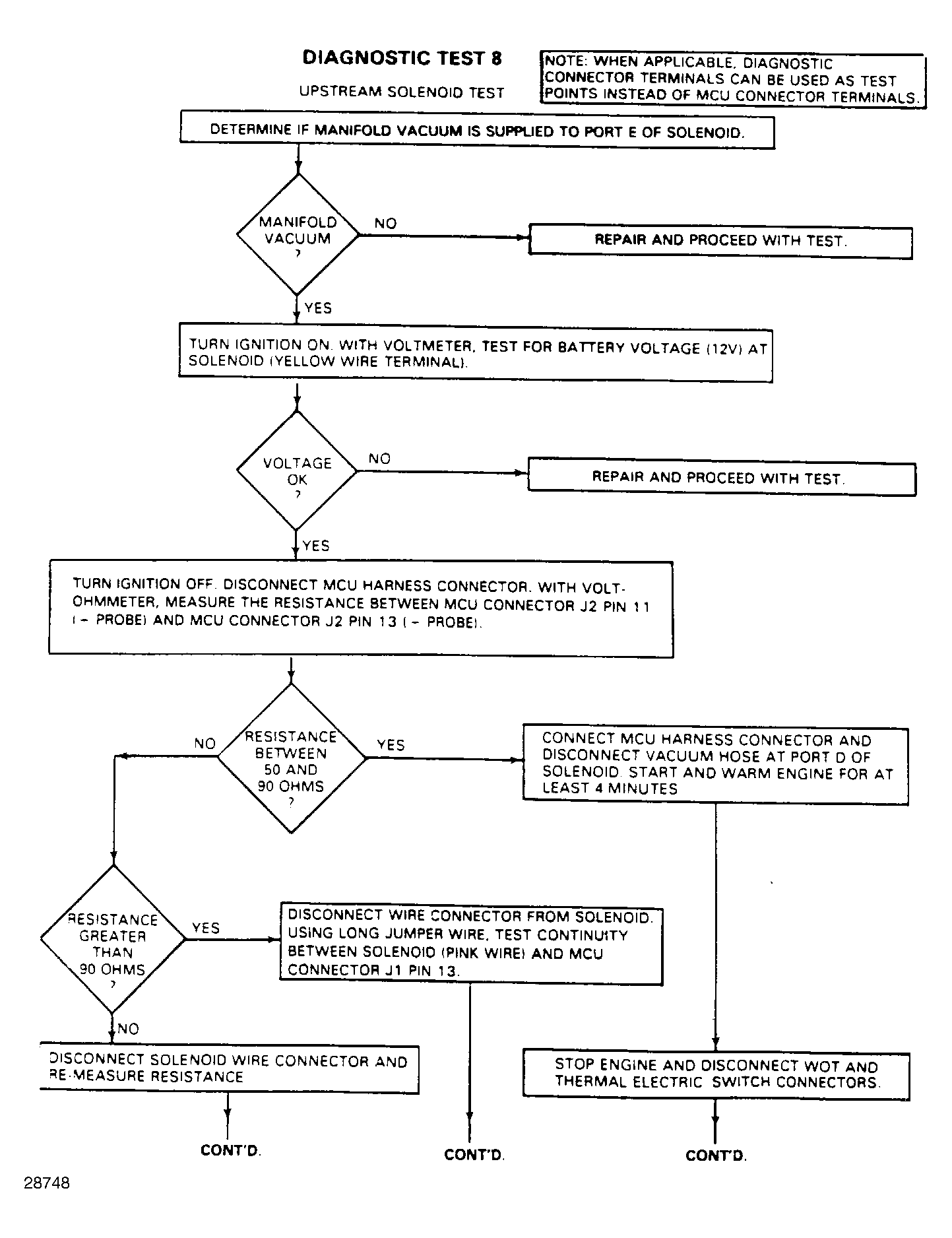

Fig 1: Test No. 8, Upstream Solenoid Test (1 of 2)

G28748

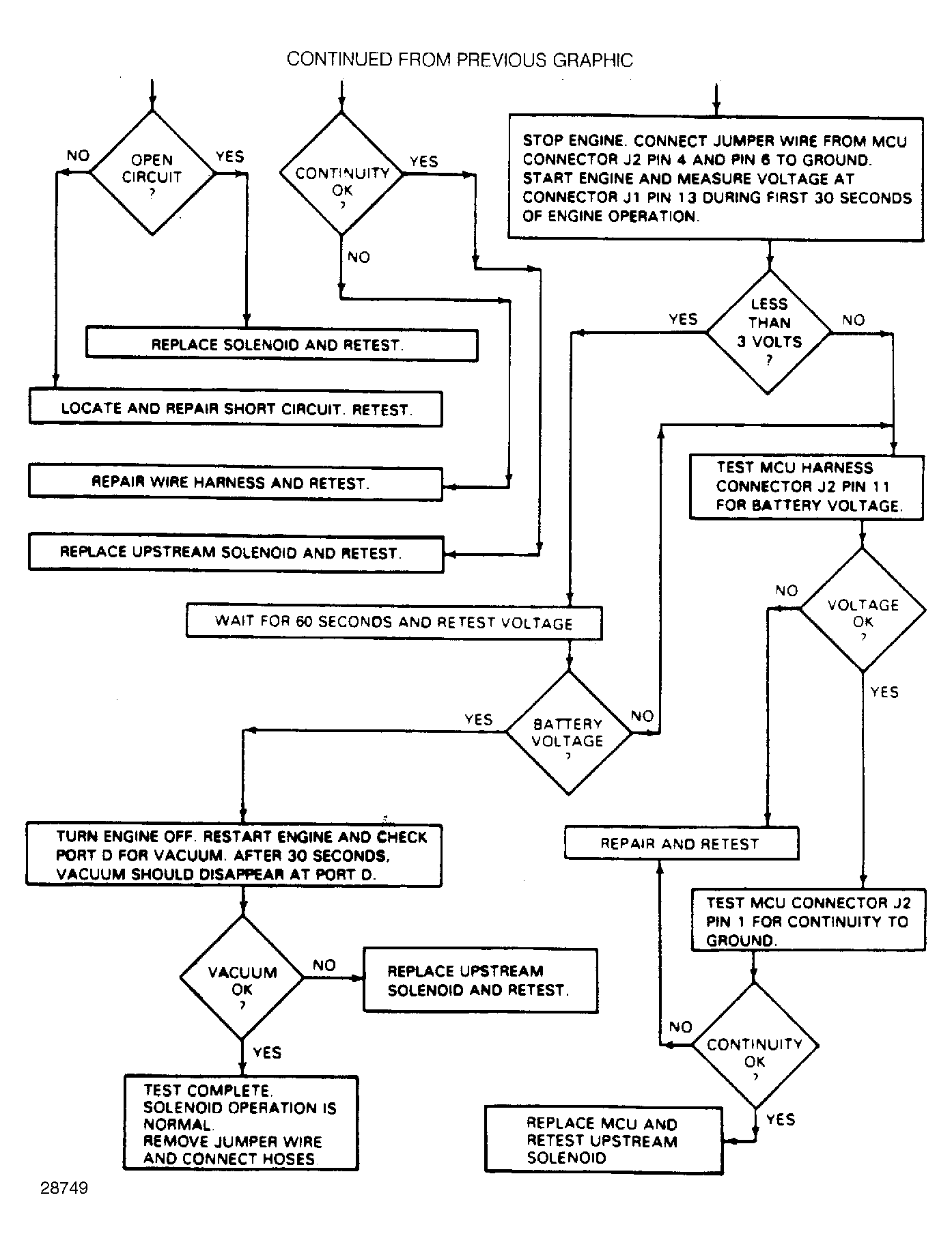

Fig 2: Test No. 8, Upstream Solenoid Test (2 of 2)

G28749
