FixVault
Home
›
Jeep
›
1983
›
Cherokee Base, 4.2 C, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
4.2L Feedback Carburetor System
›
Component Testing
›
Test No. 9 - Idle Speed Control System Test
Test No. 9 - Idle Speed Control System Test

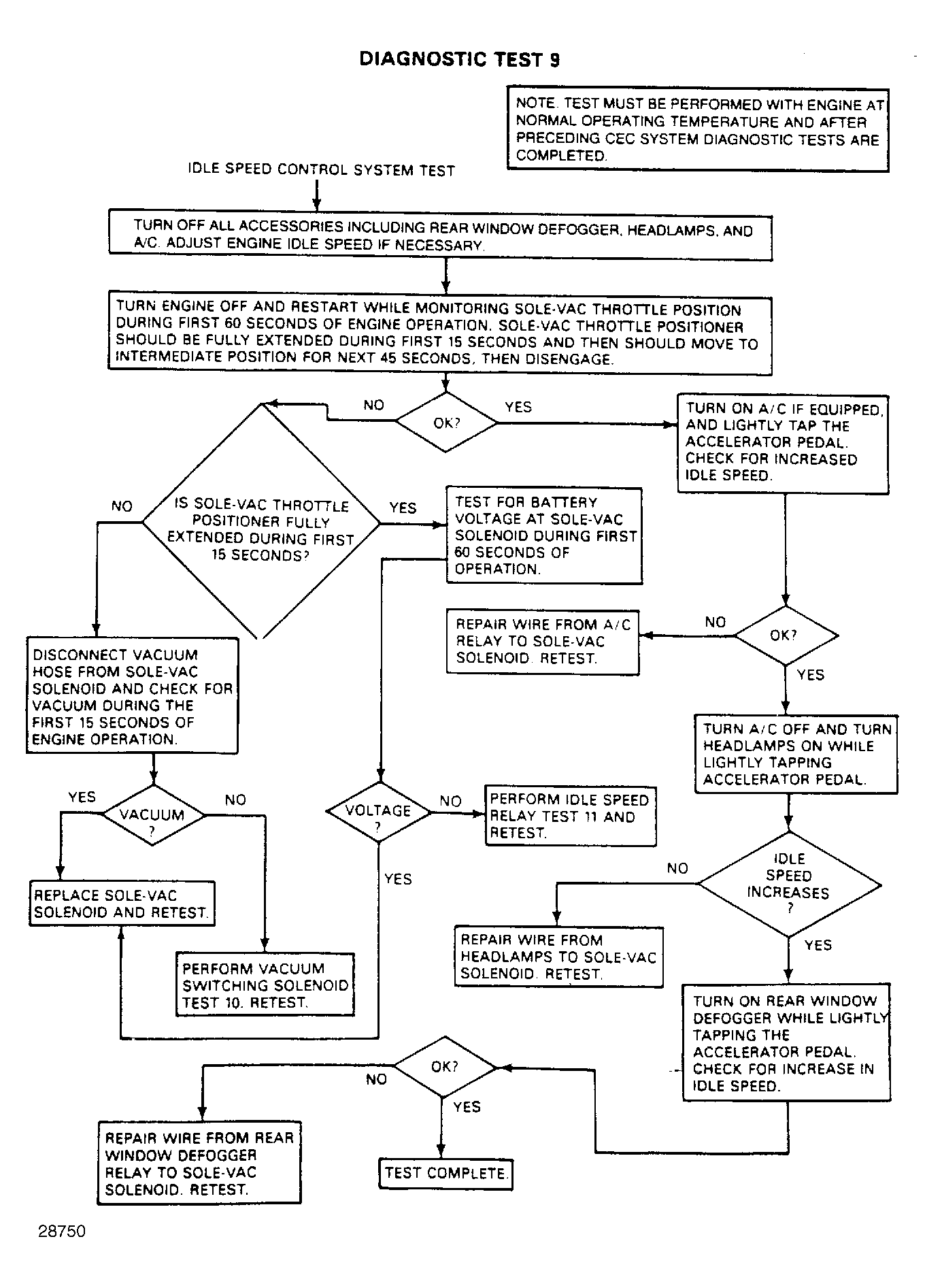

Fig 1: Test No. 9, Idle Speed Control System Test
