4.2L Feedback Carburetor System
›
Component Testing
›
Test No. 11 - Sol-Vac Idle Speed Relay Test
Test No. 11 - Sol-Vac Idle Speed Relay Test

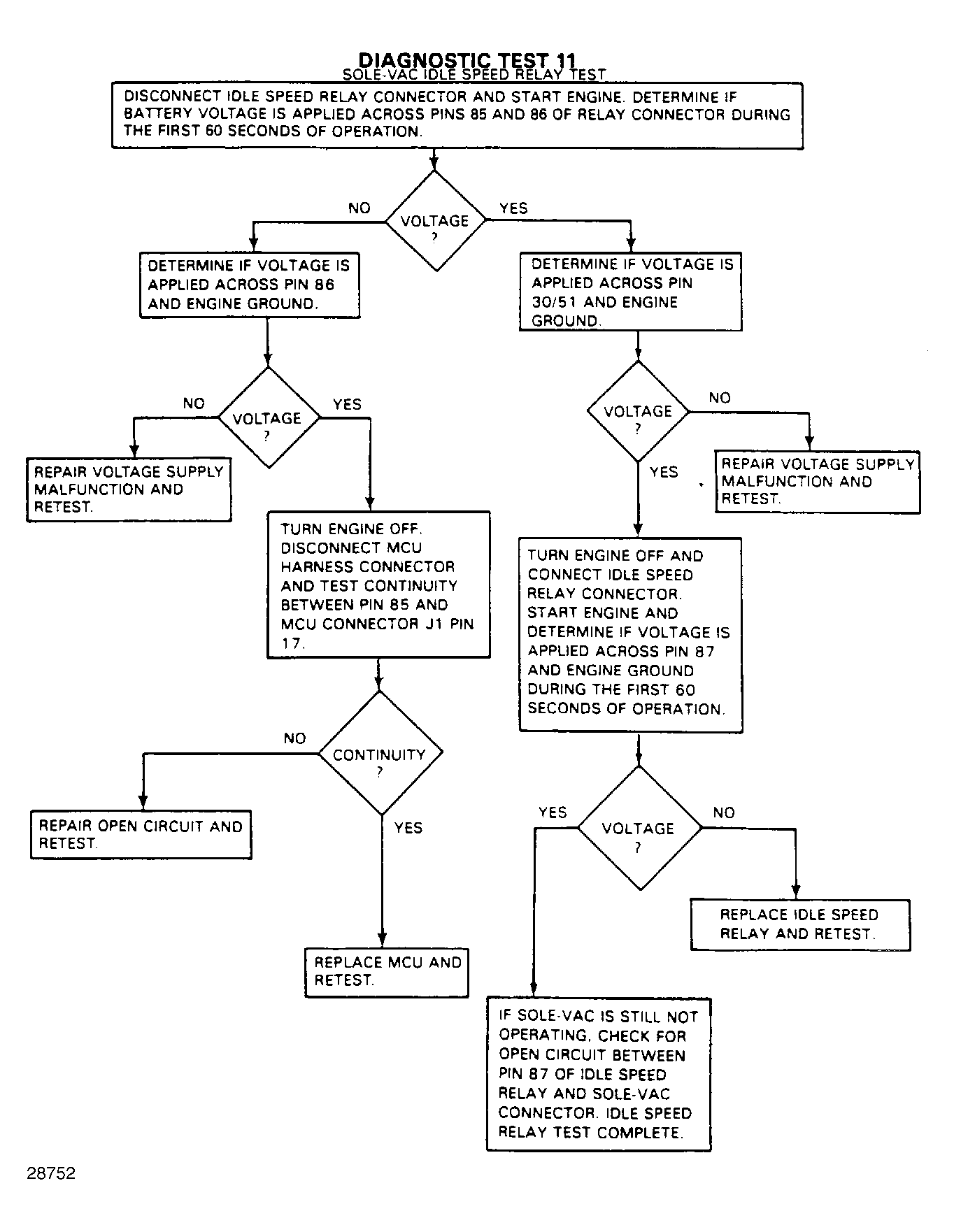

Fig 1: Test No. 11, Sole-Vac Idle Speed Relay Test
