System Control: Notes

On CJ and Scrambler, heater and defroster controls consist of a fan control switch and 3 push-pull knobs on instrument panel. On Cherokee, Truck and Wagoneer, control panel consists of fan control switch, vacuum control switch operated by 3 push buttons, and a slide lever controlling temperature.

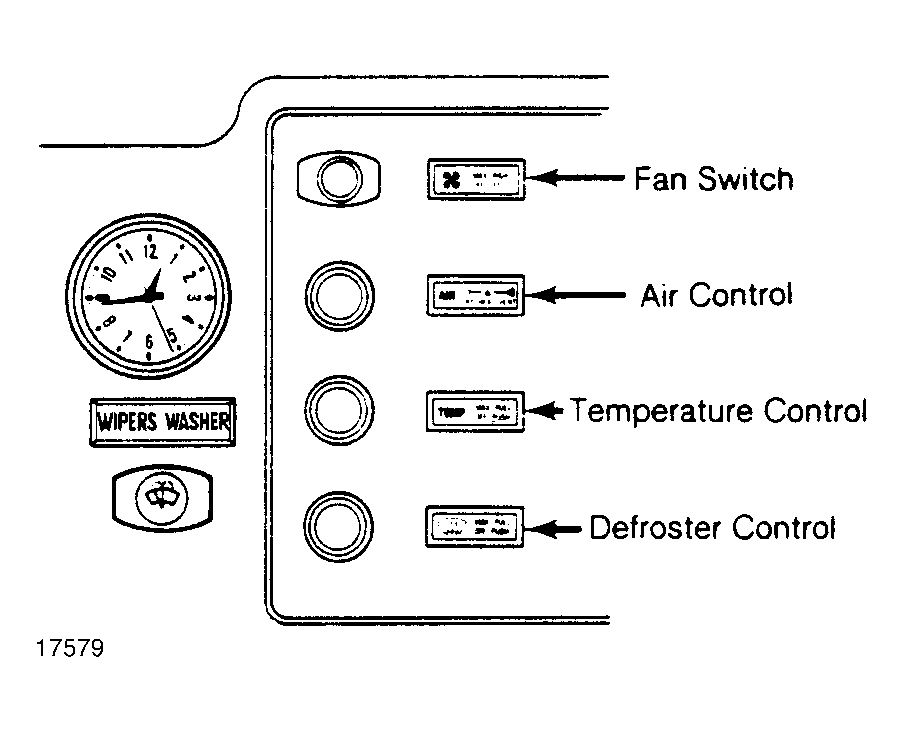

Fig 1: Heater Control Panel (CJ and Scrambler) Push-pull knobs are cable operated.
