2.8L Carburetor CEC System
›
Diagnosis & Testing
›
Intake Manifold Heater Test
Intake Manifold Heater Test

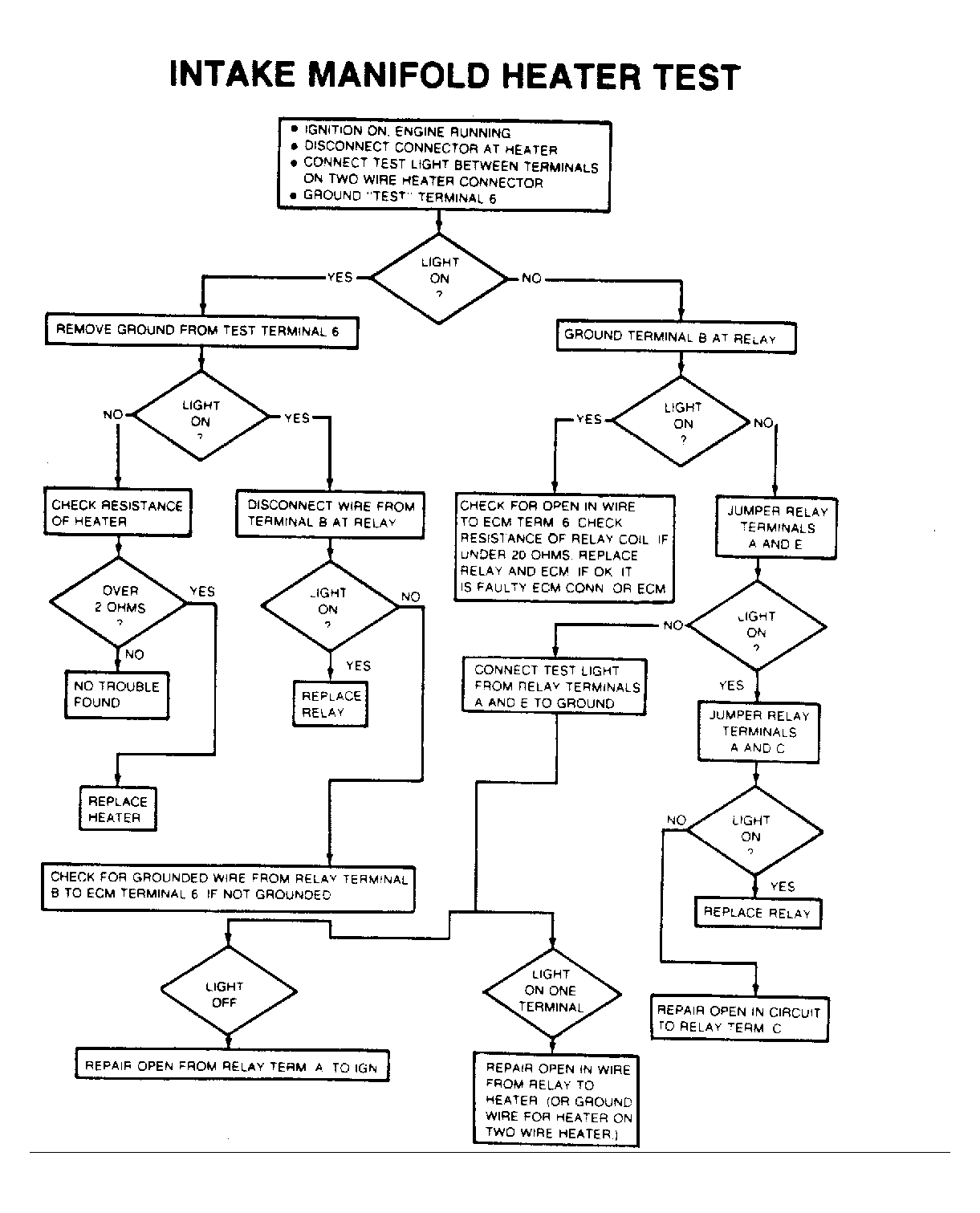

Fig 1: Intake Manifold Heater Test
