Test No. 1 - Operational Test

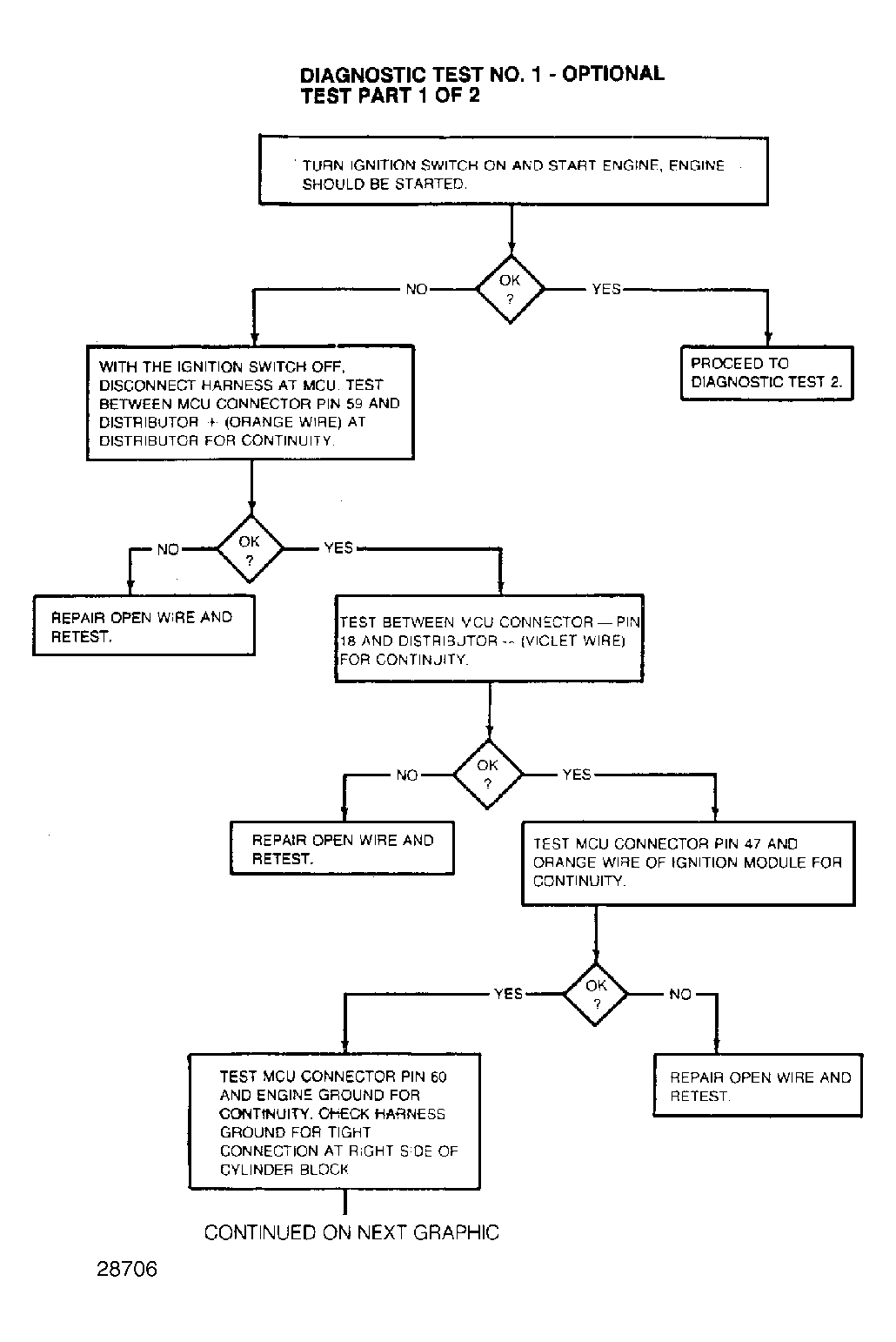

Fig 1: Test No. 1, Operational Test (1 of 2)
G28706

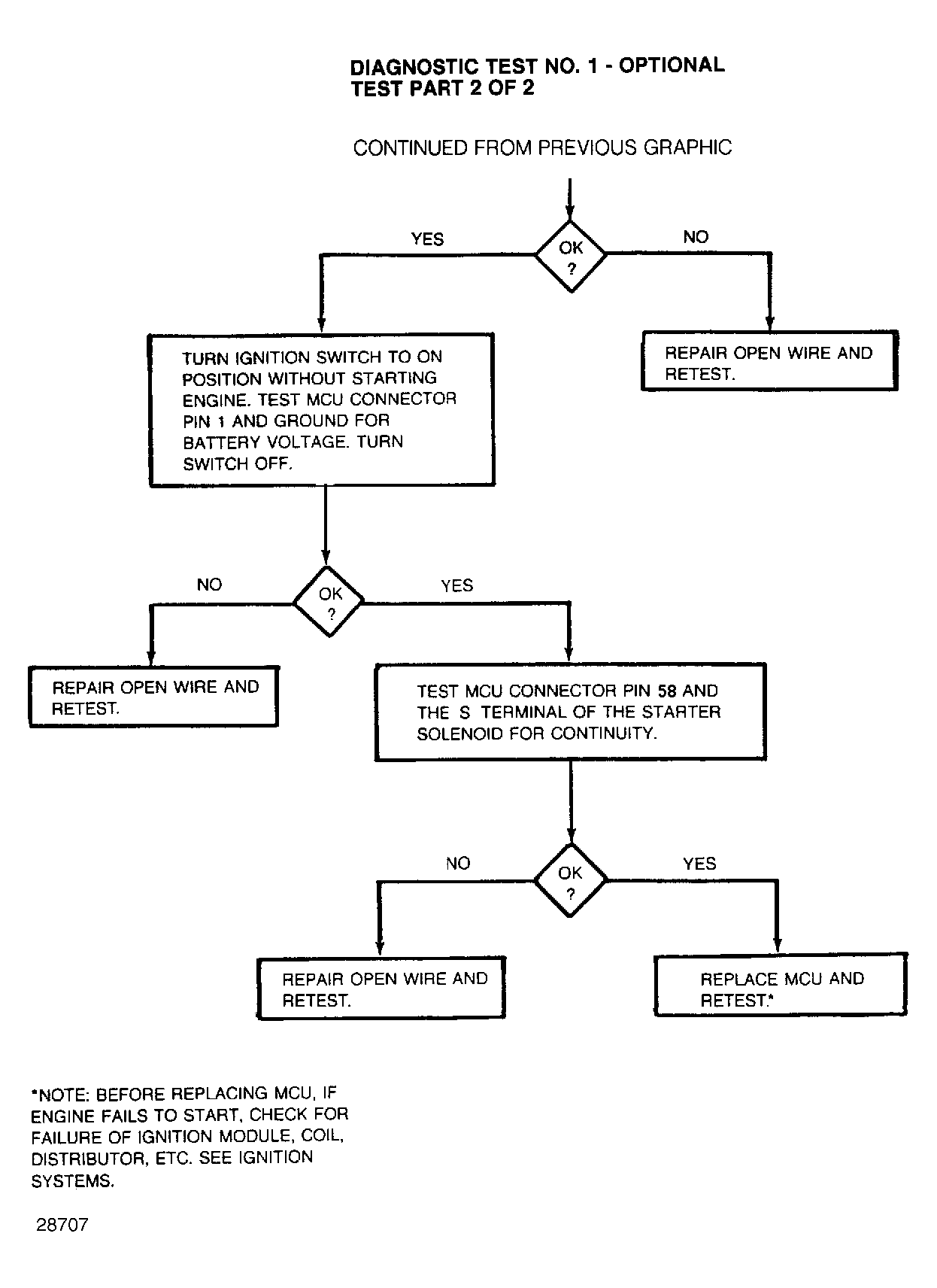

Fig 2: Test No. 1, Operational Test (2 of 2)
G28707
