2.5L Feedback Carburetor Testing
›
Testing
›
Test No. 11 - Basic Engine
Test No. 11 - Basic Engine

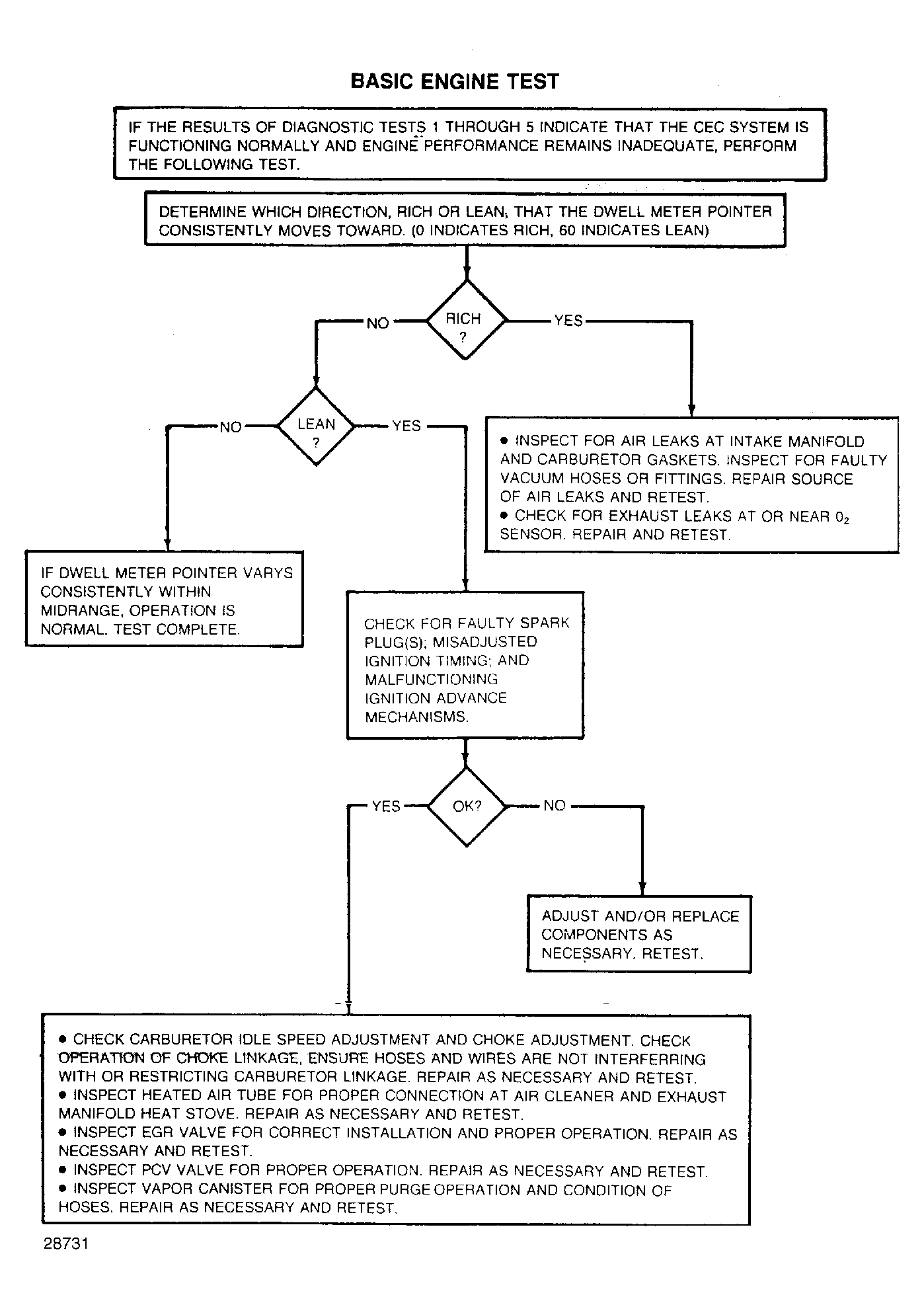

Fig 1: Test No. 11, Basic Engine Test
