Home › Jeep › 1985 › Pickup J20 › Repair and Diagnosis › Engine Performance › System › 2.5L Feedback Carburetor Testing › Testing › Test No. 3 - Closed Loop Test

Test No. 3 - Closed Loop Test

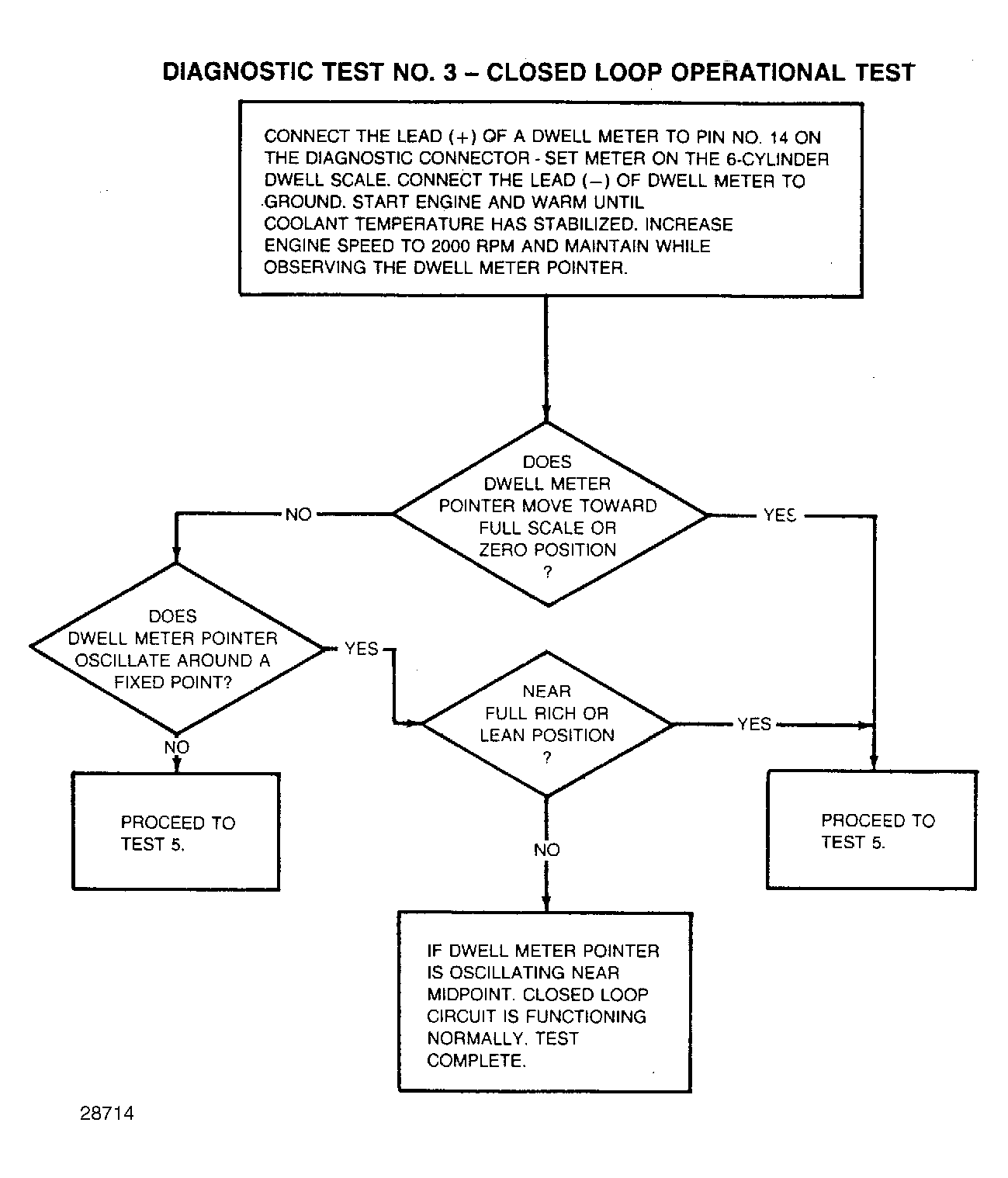

Fig 1: Test No. 3, Closed Loop Test
G28714
