2.5L Feedback Carburetor Testing
›
Testing
›
Test No. 8C - Anti-Diesel System
Test No. 8C - Anti-Diesel System

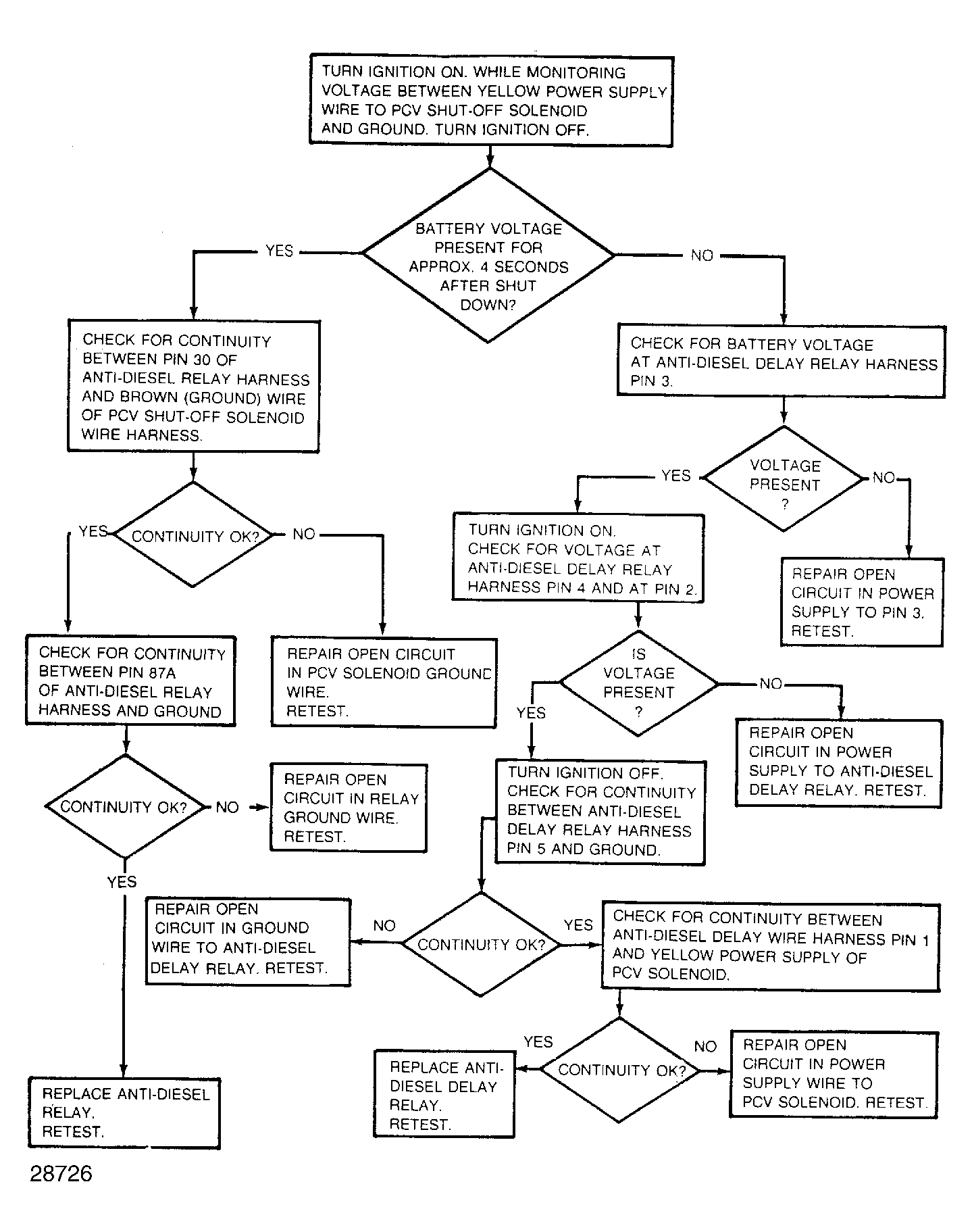

Fig 1: Test No. 8C, Anti-Diesel System Test
