2.5L Feedback Carburetor Testing
›
Testing
›
Test No. 9 - Idle Speed Control
Test No. 9 - Idle Speed Control

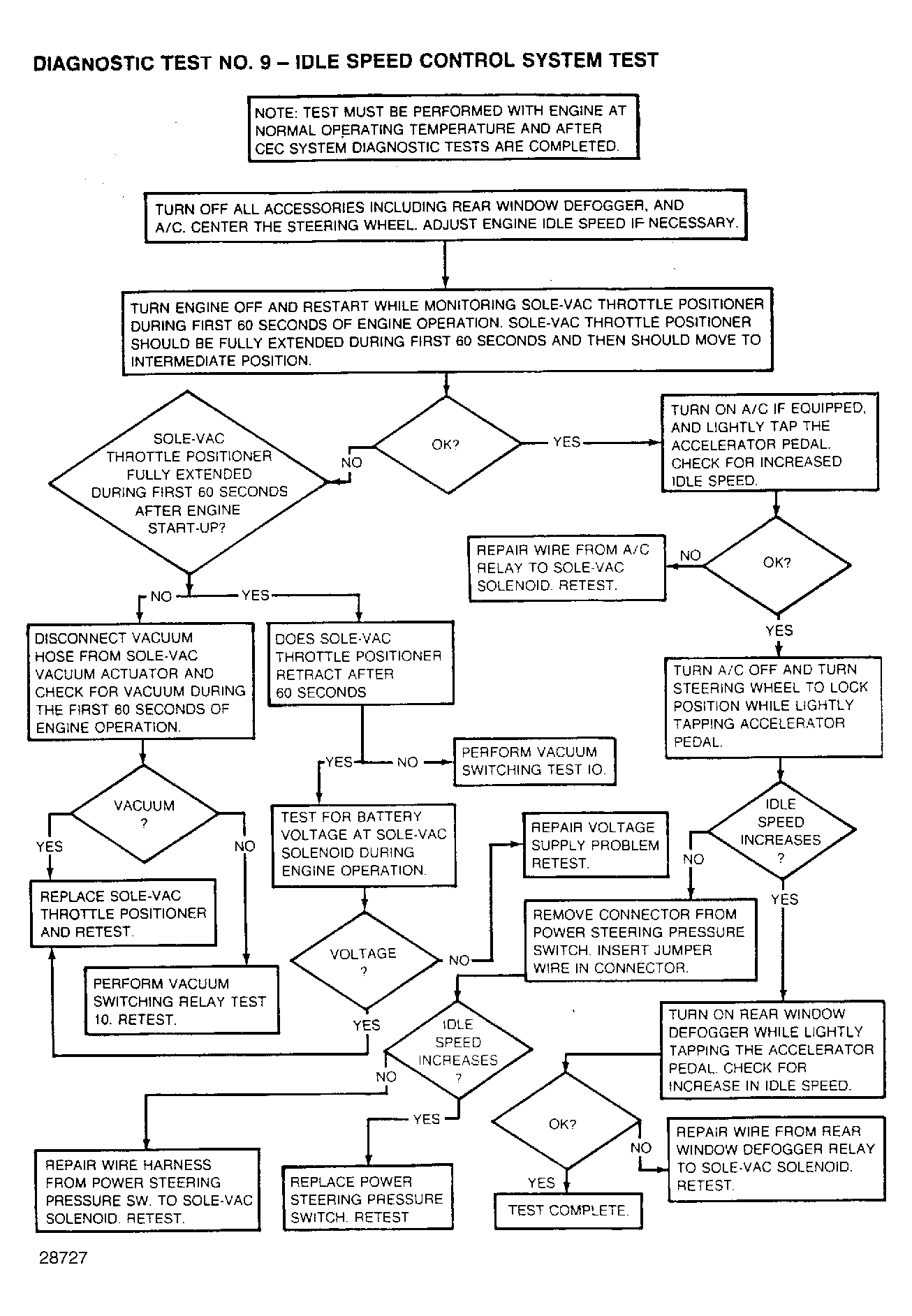

Fig 1: Test No. 9, Idle Speed Control System Test
