2.8L Feedback Carburetor System
›
Diagnosis & Testing
›
Trouble Code 12
Trouble Code 12

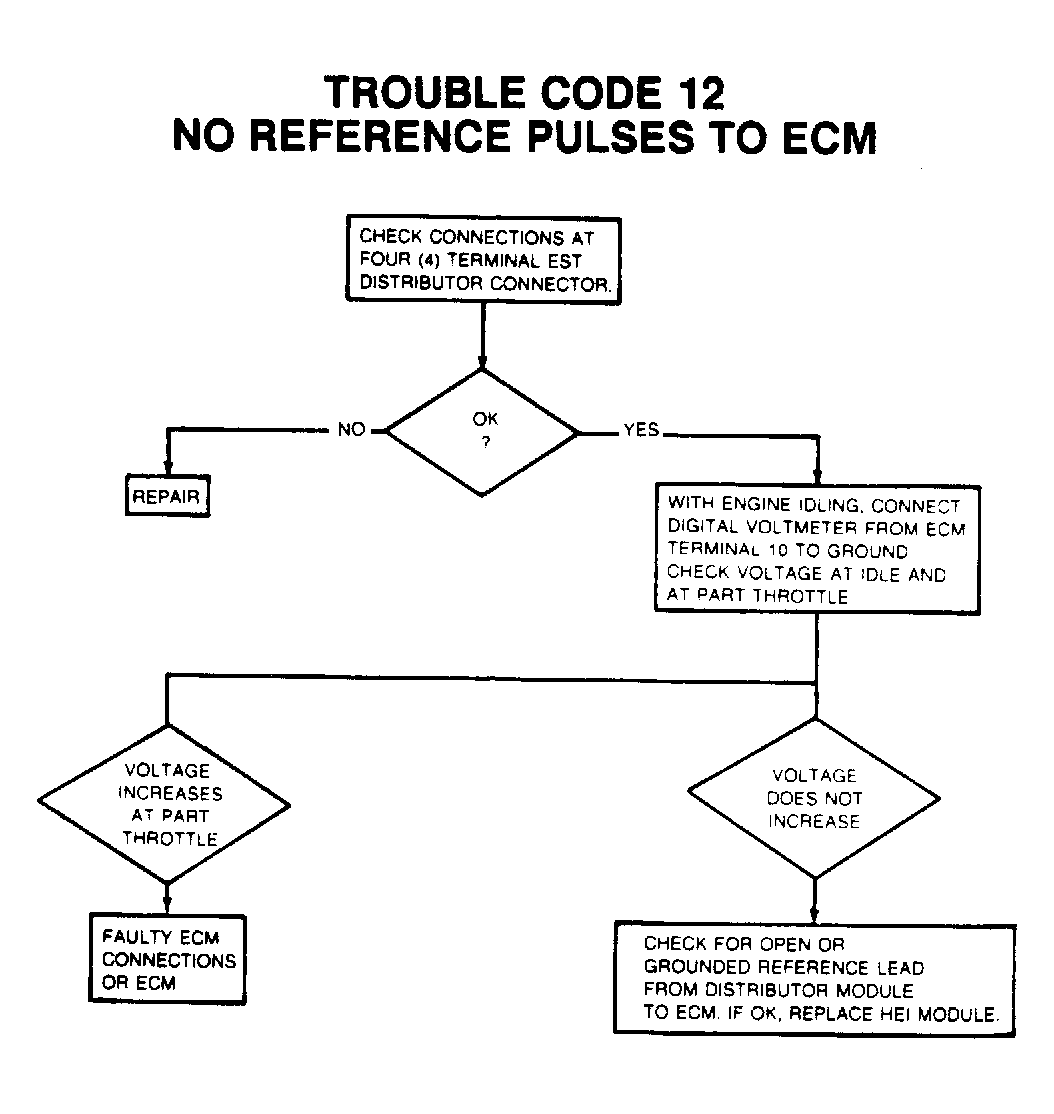

Fig 1: Trouble Code 12, No Reference Pulses to ECM
