Jeep
›
1986
›
Comanche Base, 2.8 W, RWD, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
2.8L Feedback Carburetor System
›
Diagnosis & Testing
›
Chart 7
Chart 7

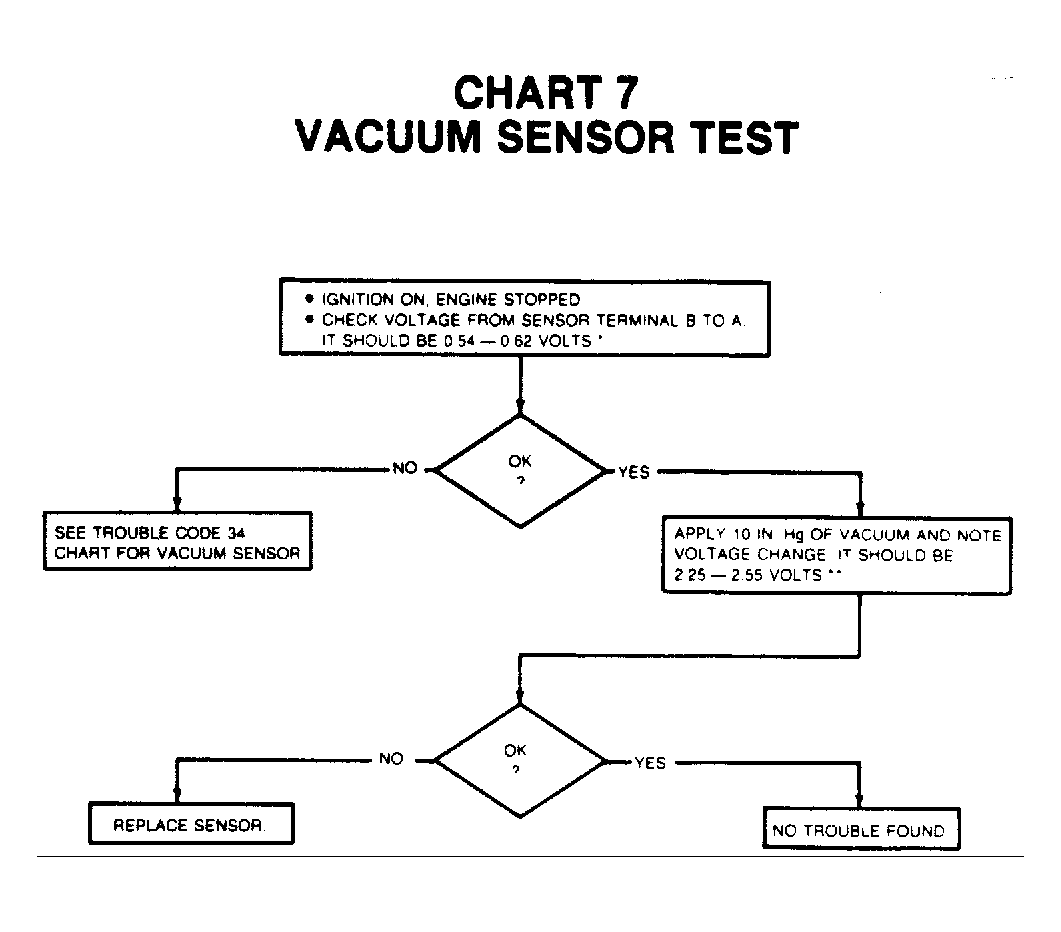

Fig 1: Chart 7, Vacuum Sensor Test
