2.8L Feedback Carburetor System
›
Diagnosis & Testing
›
Chart 1
Chart 1

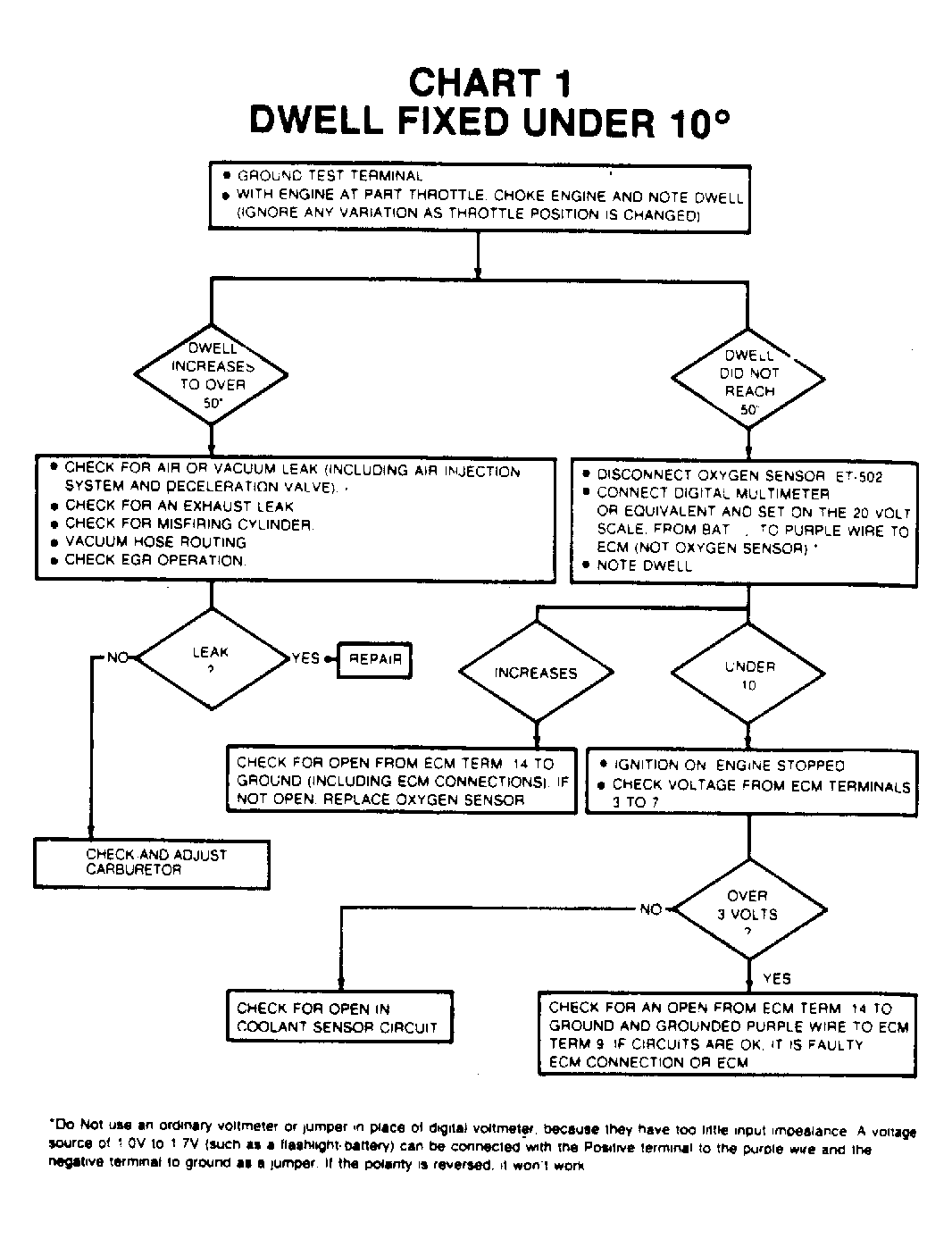

Fig 1: Chart 1, Dwell Fixed Under 10°
