2.8L Feedback Carburetor System
›
Diagnosis & Testing
›
Chart 8
Chart 8

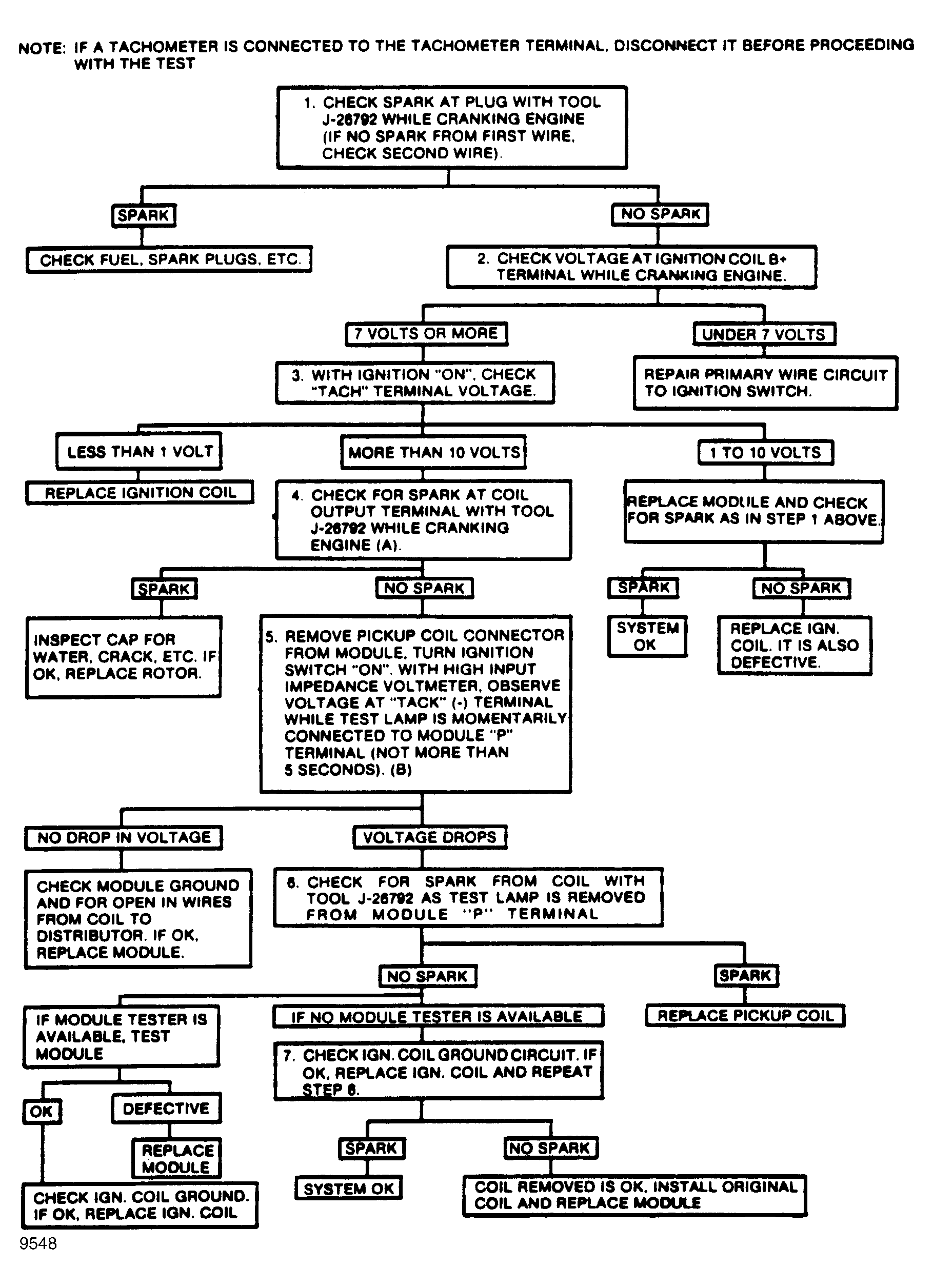

Fig 1: Chart 8, Engine Cranks But Won't Start
