2.8L Feedback Carburetor System
›
Diagnosis & Testing
›
Chart 9
Chart 9

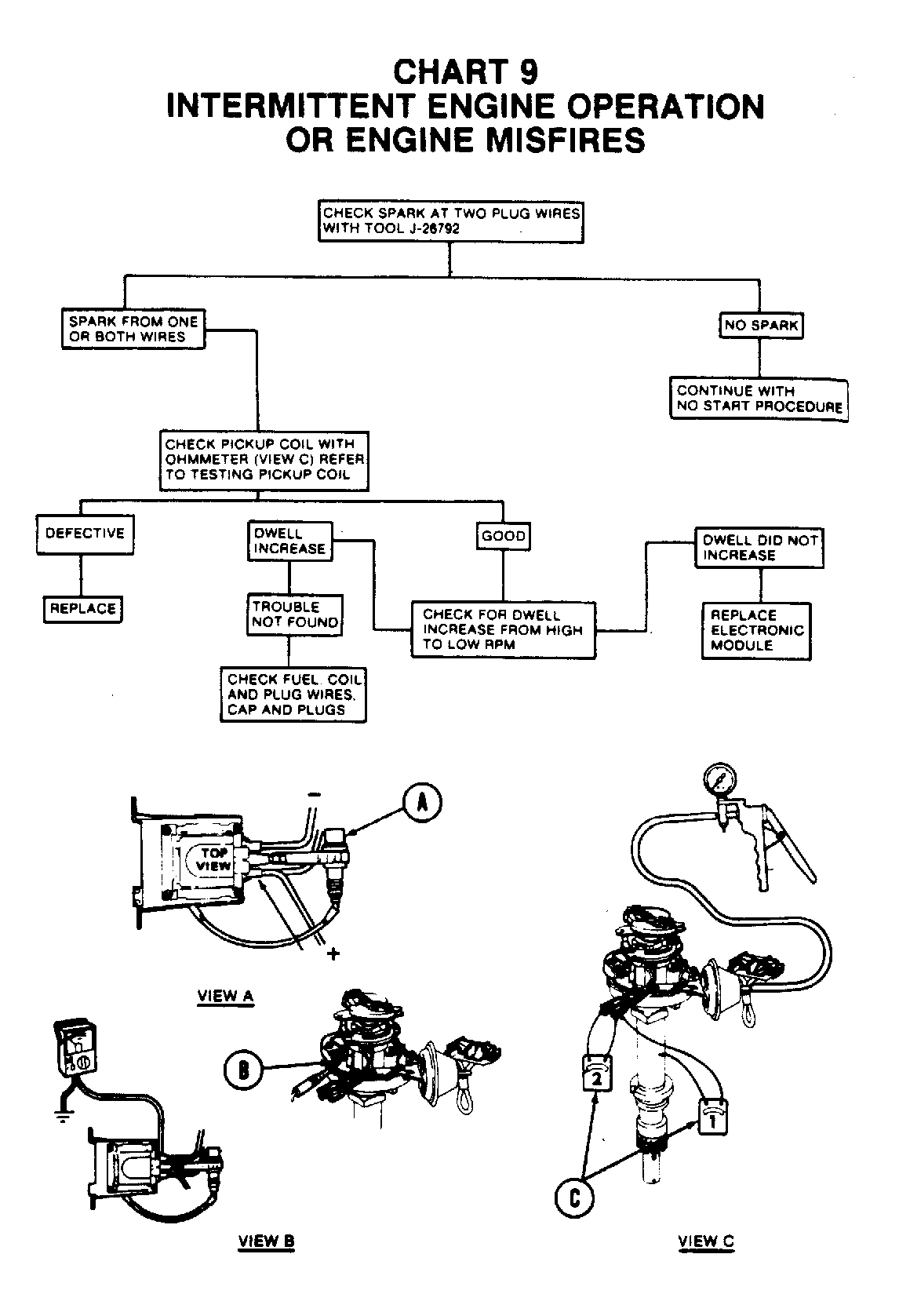

Fig 1: Chart 9, Intermittent Engine Operation Or Engine Misfires
