Test 2: Ignition On: Power
Test 2: Ignition On: Power

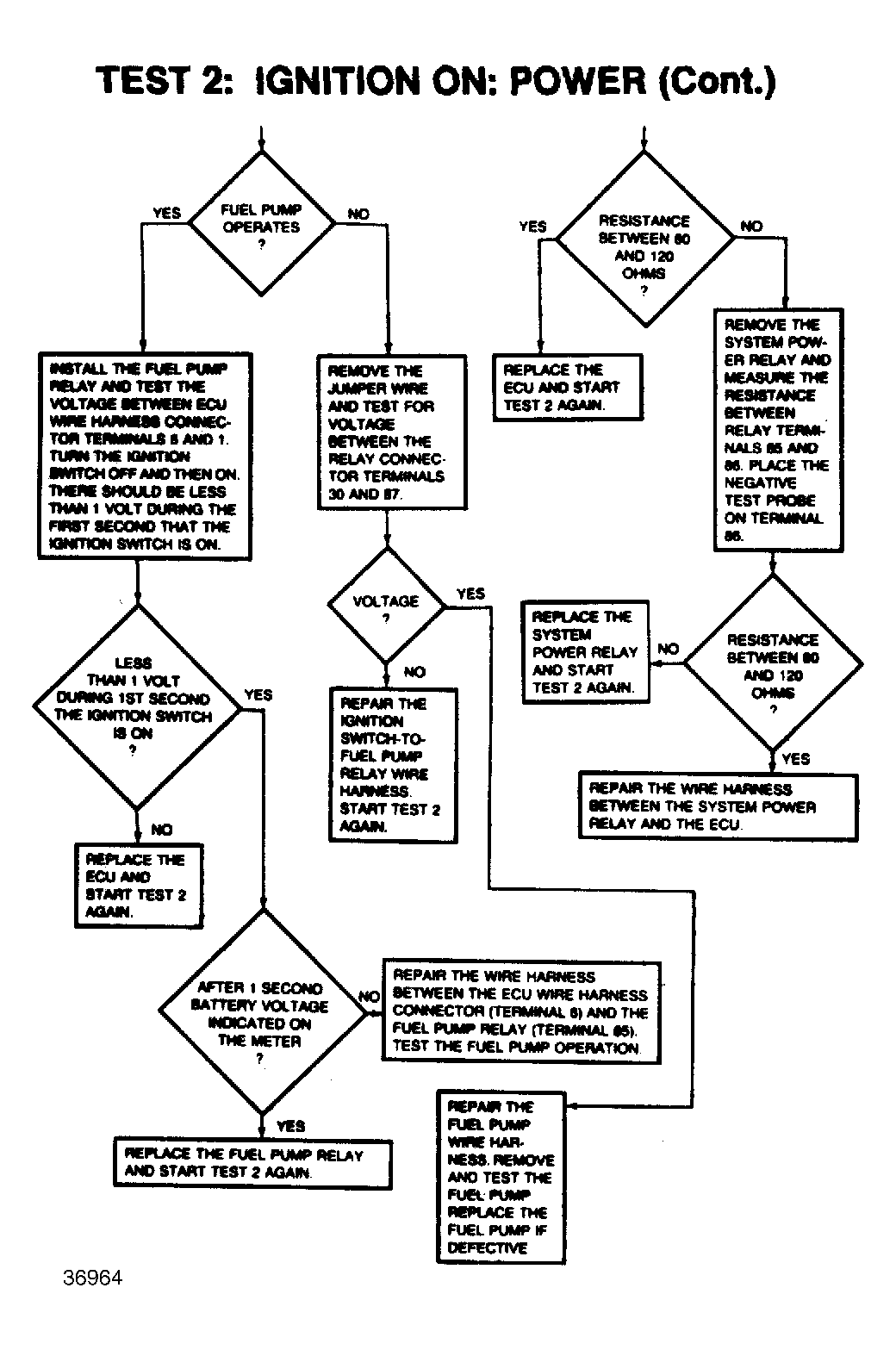

Fig 1: Test 2: Ignition On: Power (1 of 3)
Fig 2: Test 2: Ignition On: Power (2 of 3)
Fig 3: Test 2: Ignition On: Power (3 of 3)
