Test 3: Ignition On: Input

Fig 1: Test 3: Ignition On: Input (1 of 6)

G36965

Fig 2: Test 3: Ignition On: Input (2 of 6)

G36966

Fig 3: Test 3: Ignition On: Input (3 of 6)

G36967

Fig 4: Test 3: Ignition On: Input (4 of 6)

G36968

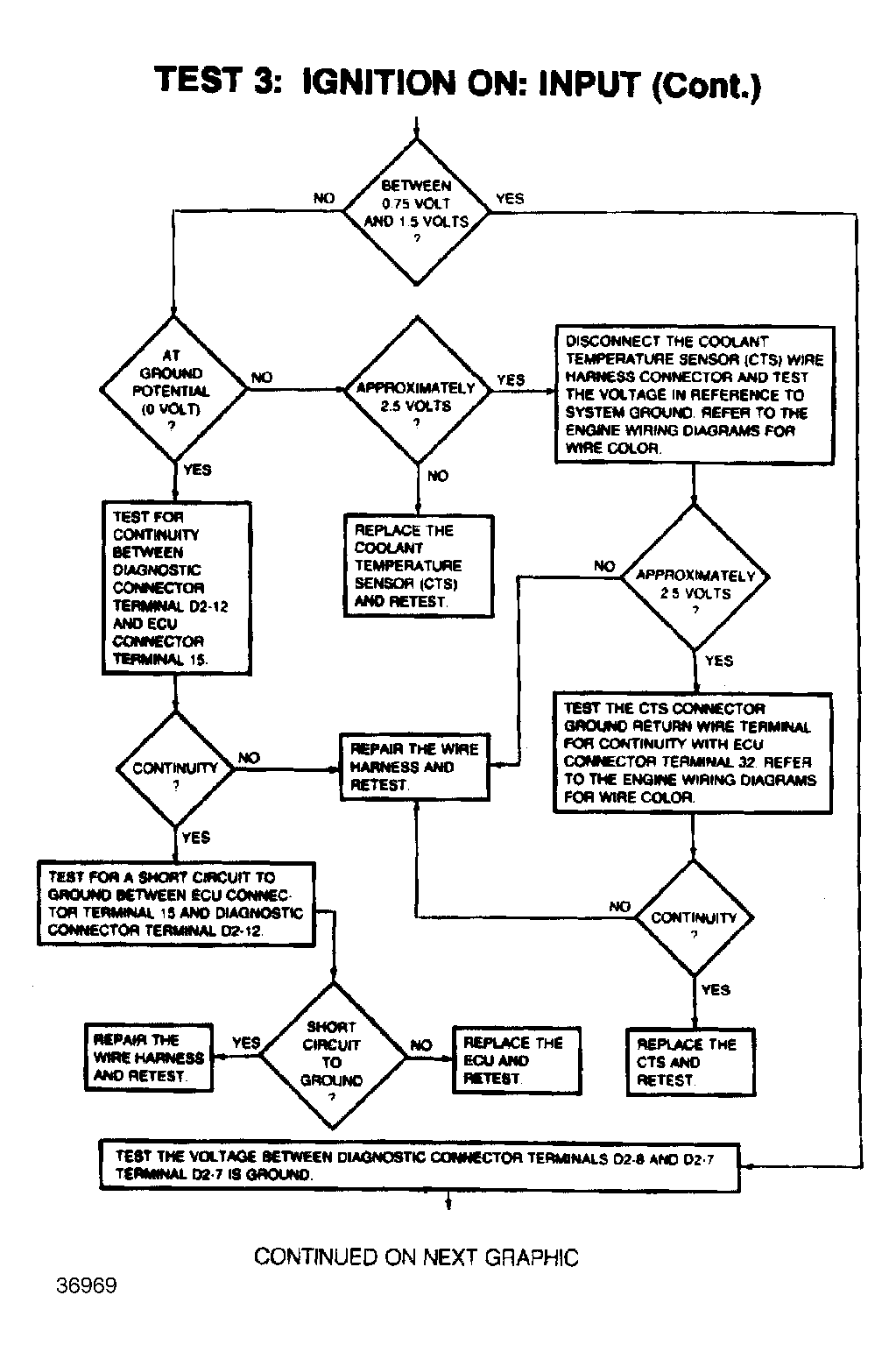

Fig 5: Test 3: Ignition On: Input (5 of 6)

G36969

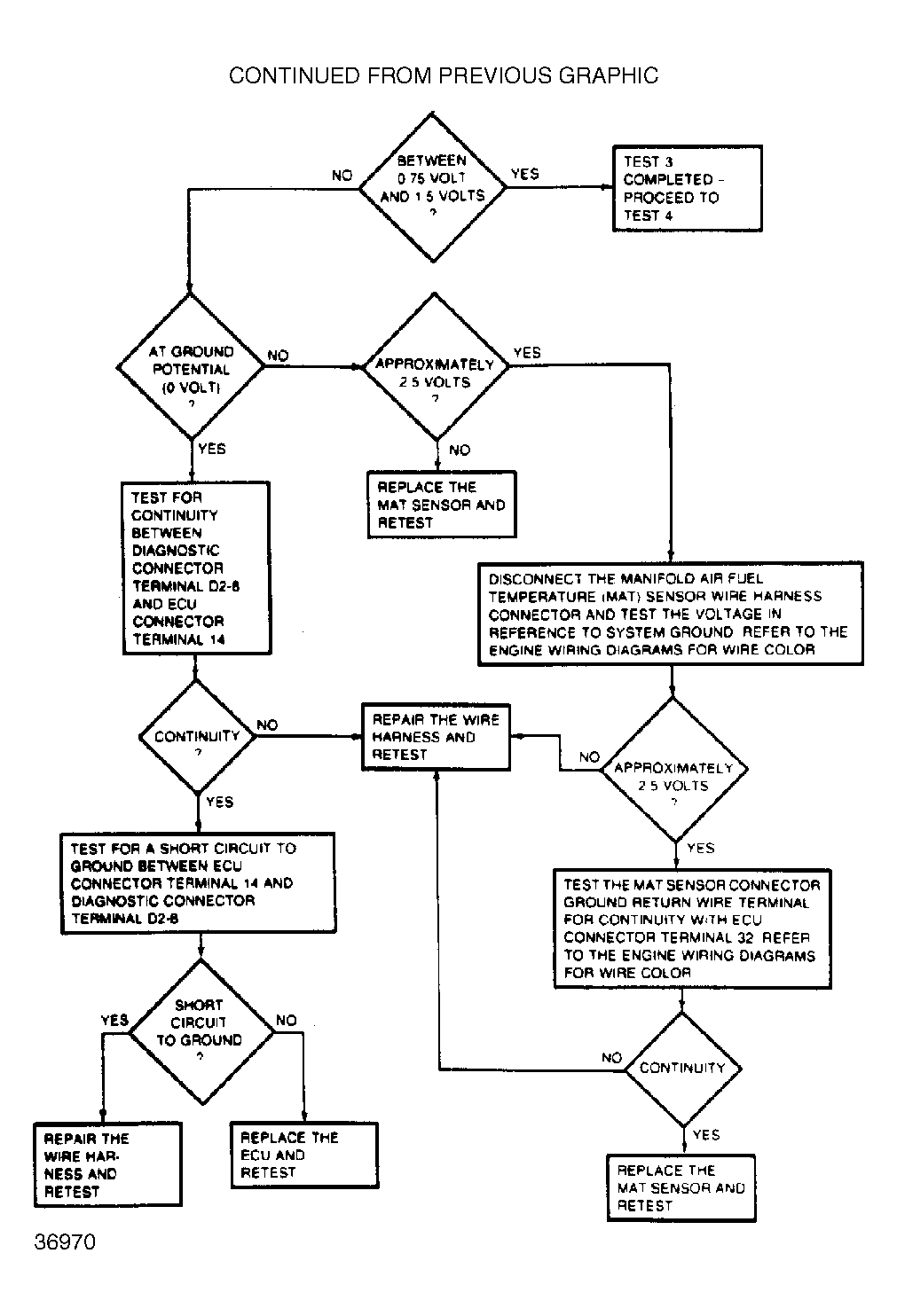

Fig 6: Test 3: Ignition On: Input (6 of 6)

G36970
