Alternator - PARIS-RHONE: Description

Alternating current is generated as the stator rotates. Alternator warning light on dashboard will remain on if a charging system problem is indicated. Starter is used in 2.1L turbo diesel models only.

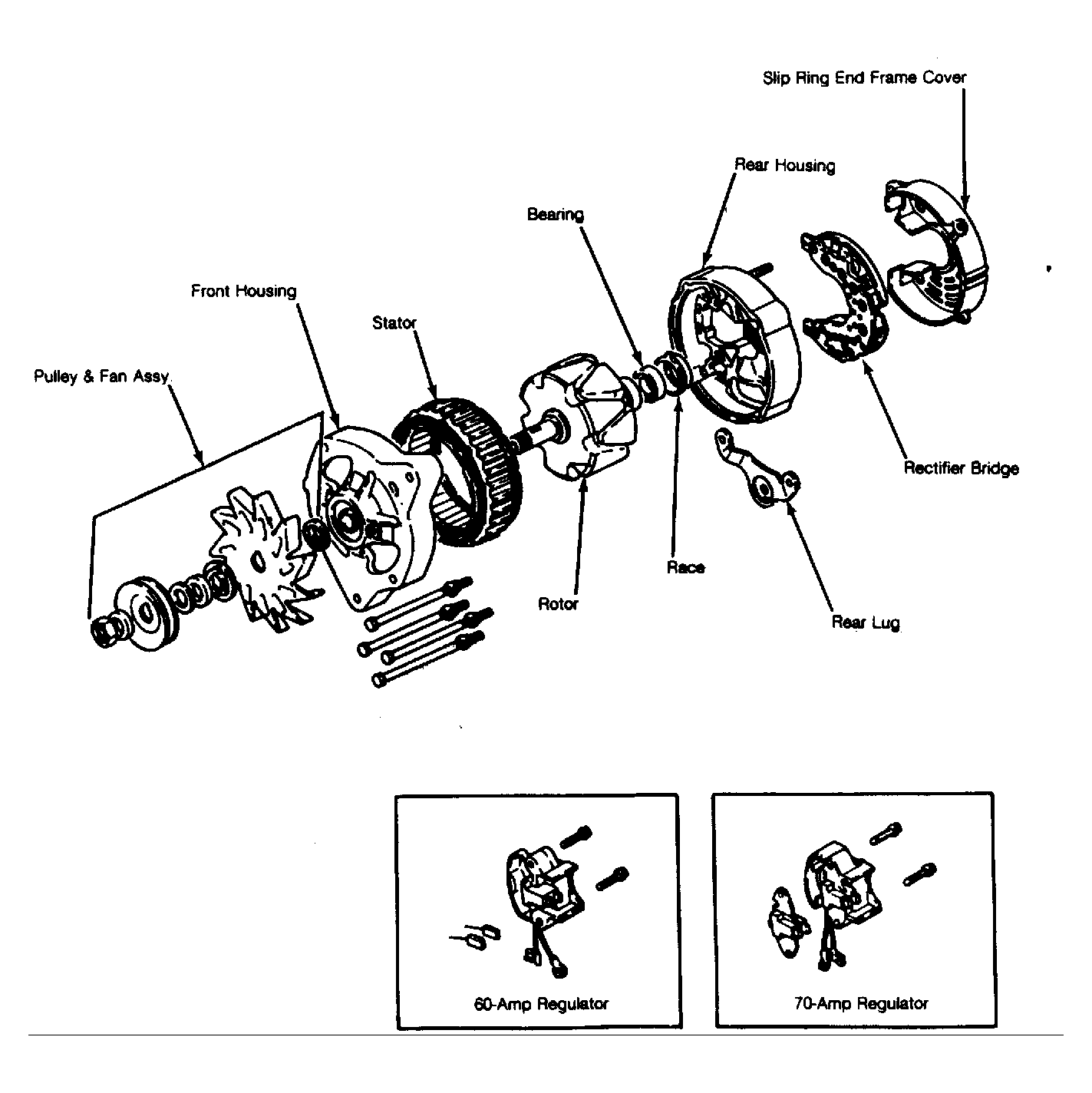

Fig 1: Exploded View of Paris-Rhone Alternator

Courtesy of AMERICAN MOTORS/JEEP CORP.
