2.5L TBI System
›
System Diagnosis
›
Chart 1, Ignition Switch Off
Chart 1, Ignition Switch Off

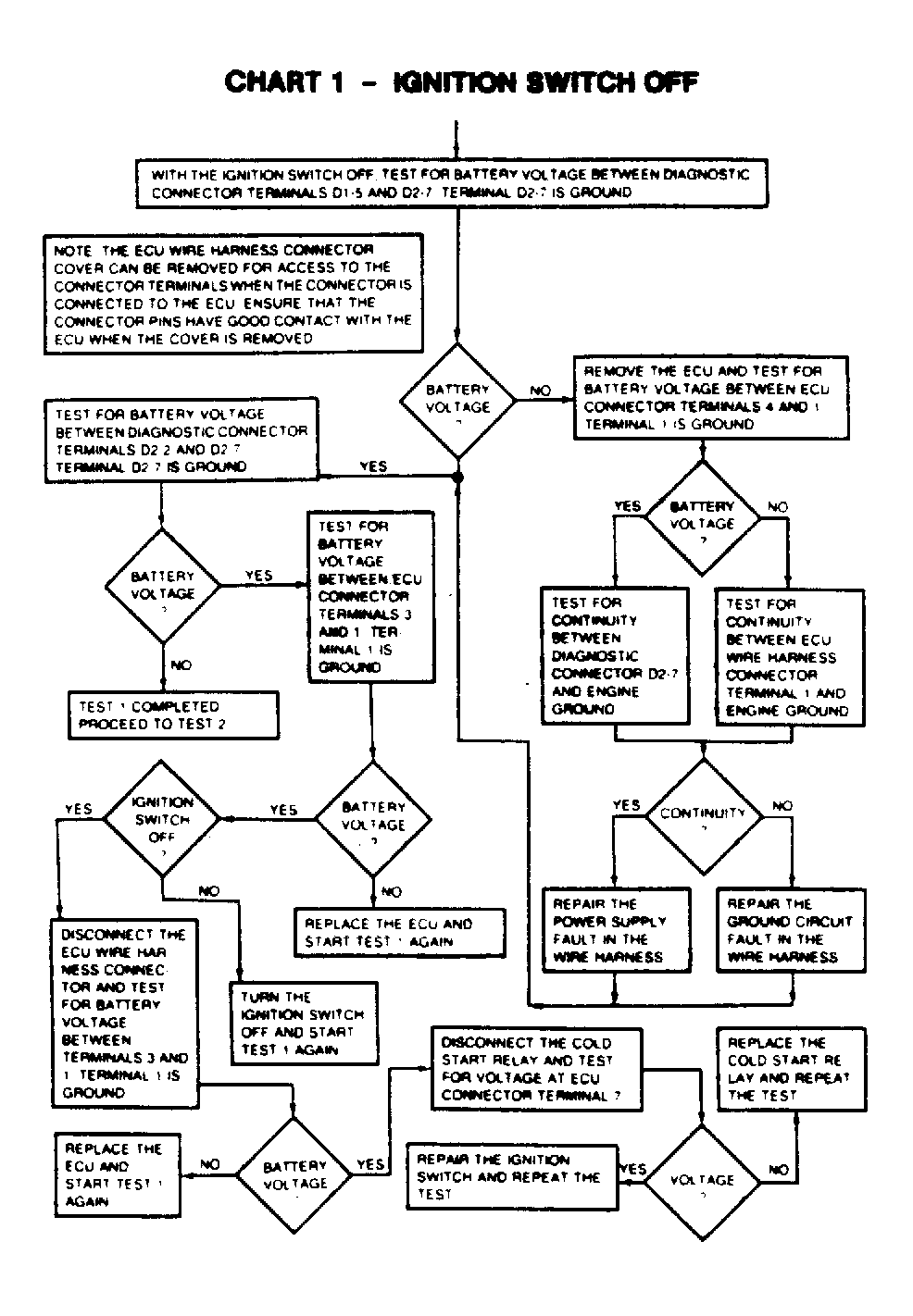

Fig 1: Chart 1, Ignition Switch Off
