Chart 3, Throttle Position Sensor Test
Chart 3, Throttle Position Sensor Test

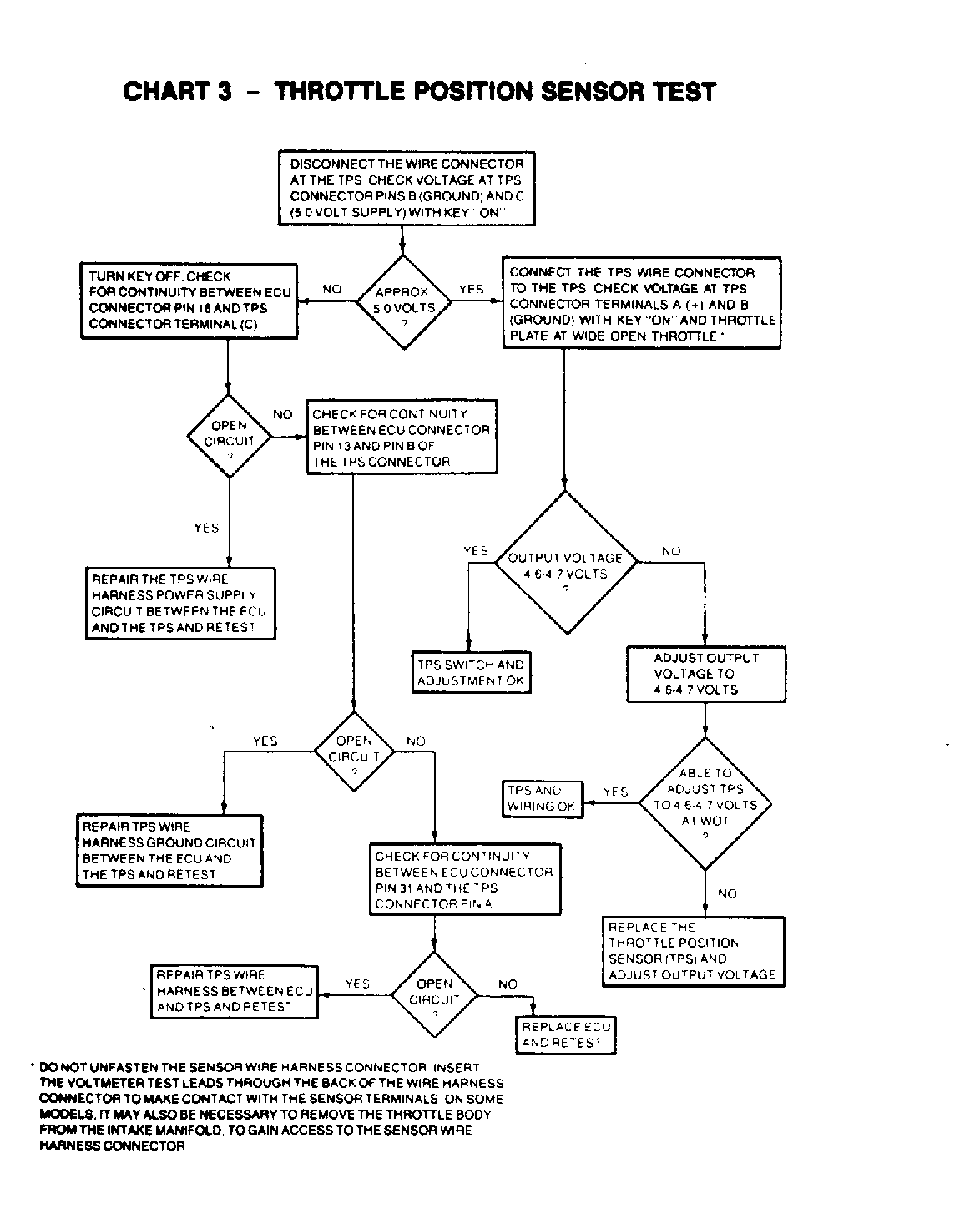

Fig 1: Chart 3, Throttle Position Sensor Test
