Home › Jeep › 1987 › Cherokee Limited › Repair and Diagnosis › Engine Performance › System › 2.5L TBI System › System Diagnosis › Chart 4-G, System Operational Test (Cont.)

Chart 4-G, System Operational Test (Cont.)

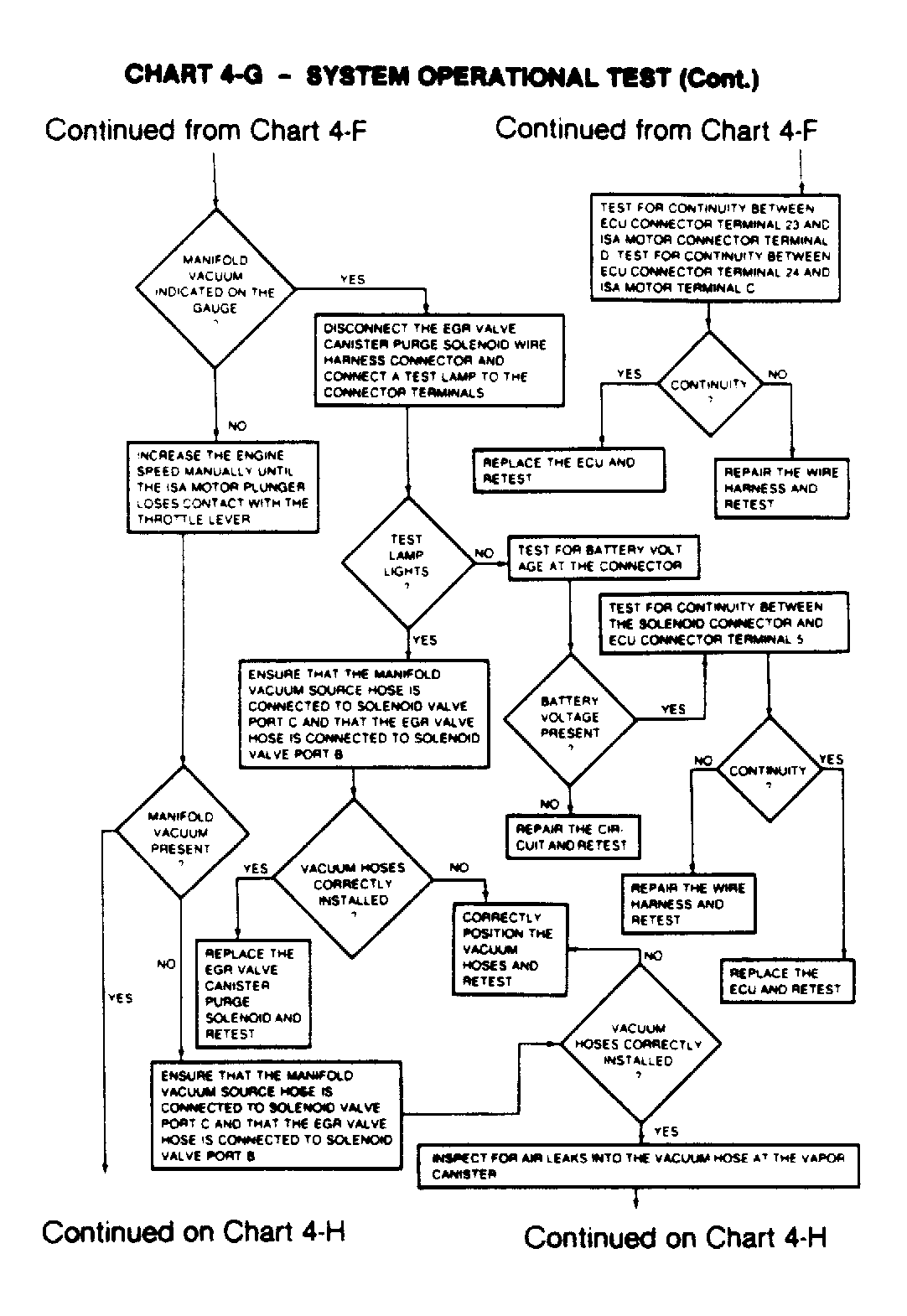

Fig 1: Chart 4-G, System Operational Test (Cont.)
G11227
