Wiring Diagrams

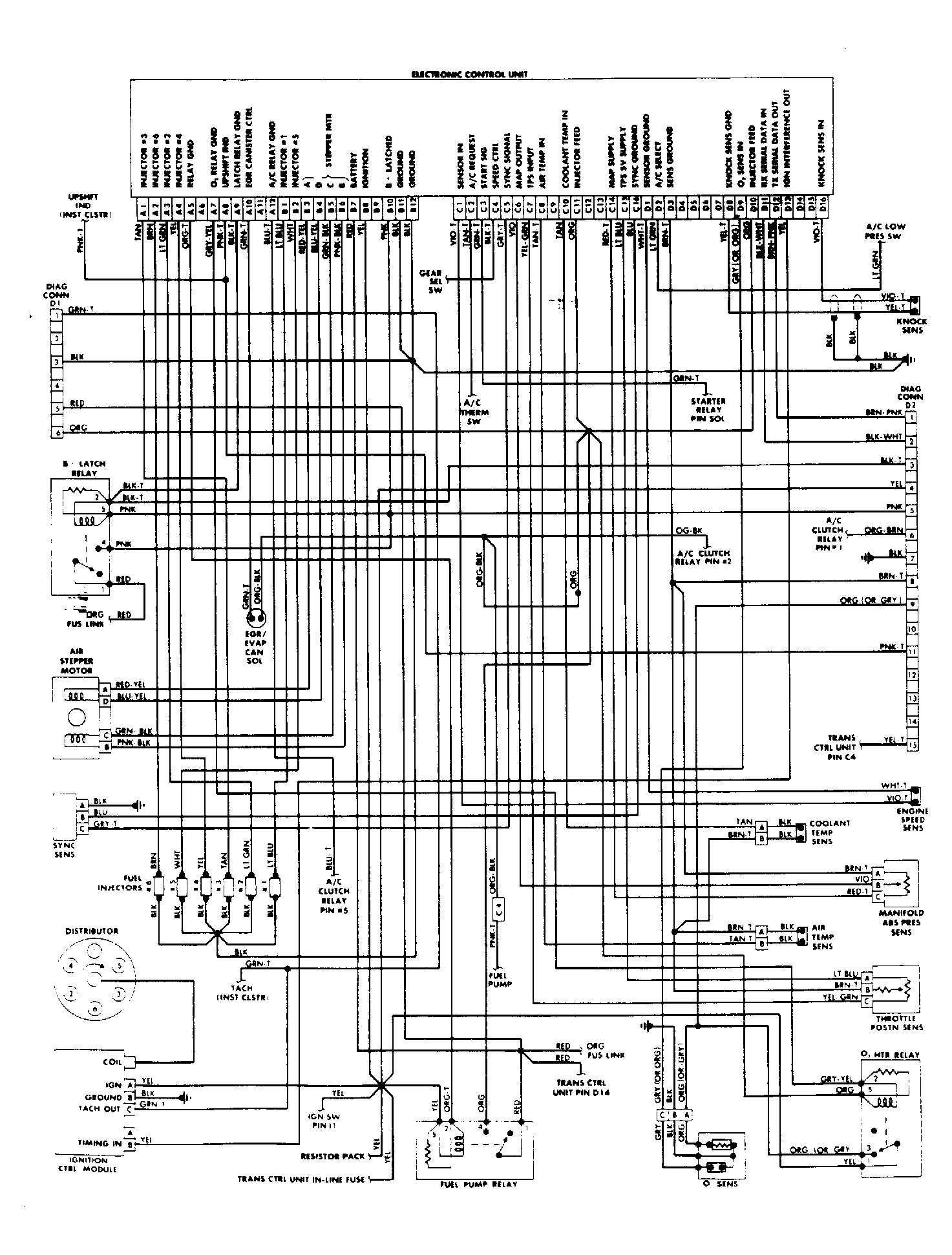

Fig 1: 1987 Comanche Engine Control System Wiring Diagram
G12425

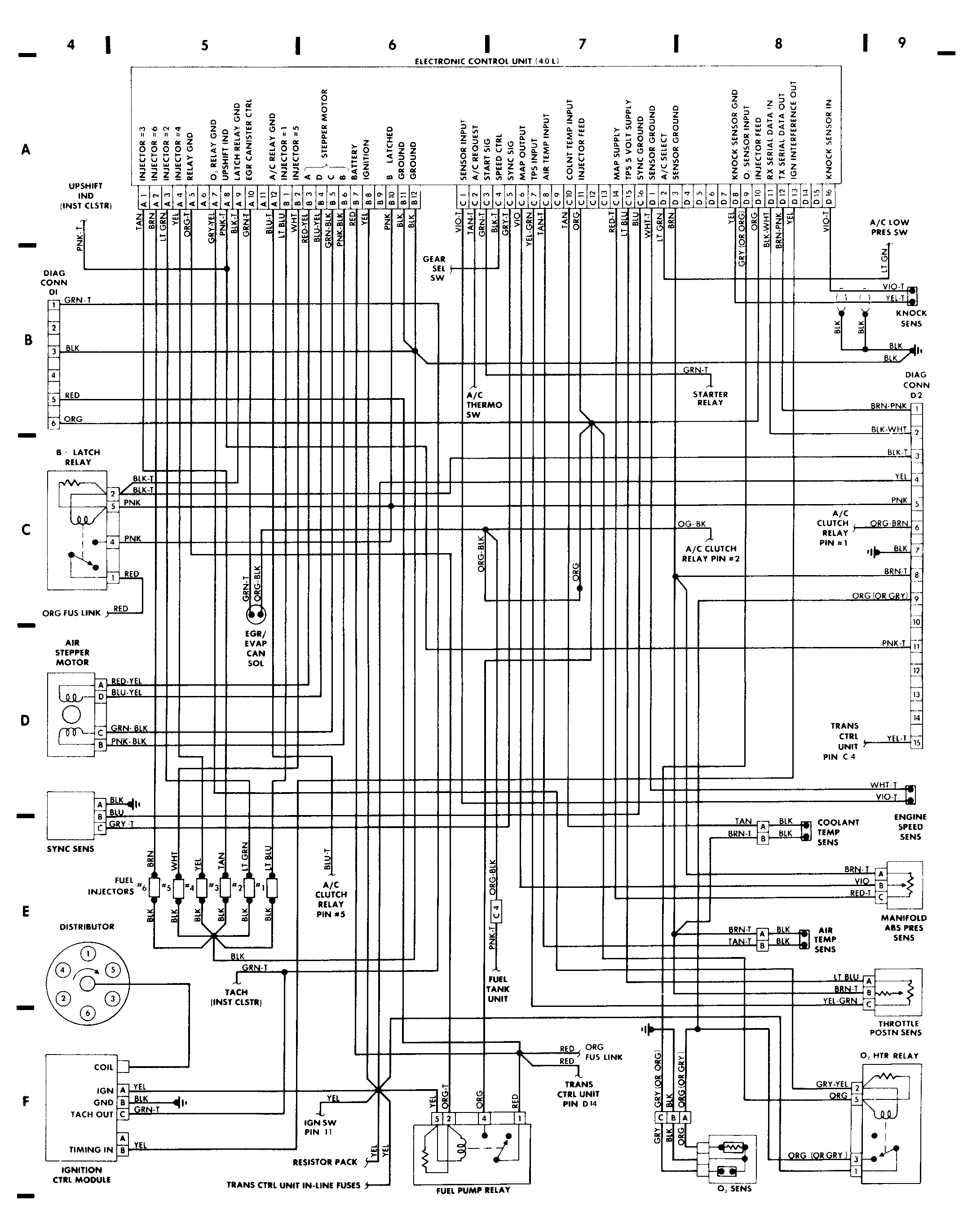

Fig 2: 1987 Cherokee Engine Control System Wiring Diagram
G95644
