Fuel Injection System - TBI
›
Diagnostic Flow Charts
›
Fuel Injection Ecu Connector
Fuel Injection Ecu Connector

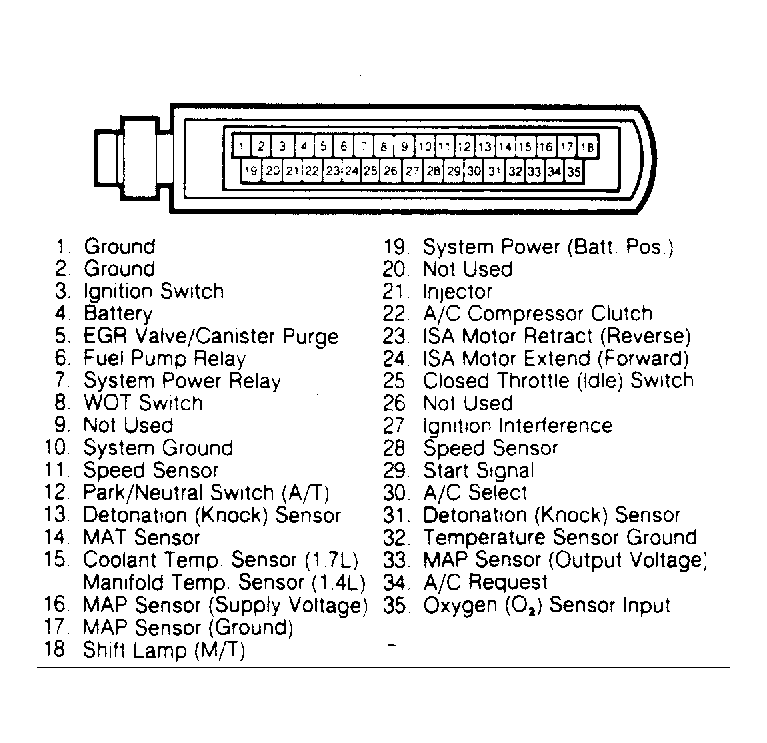

Fig 1: Jeep/Renix Fuel Injection ECU Connector
Courtesy of AMERICAN MOTORS/JEEP CORP.
Courtesy of AMERICAN MOTORS/JEEP CORP.
