Connector Identification

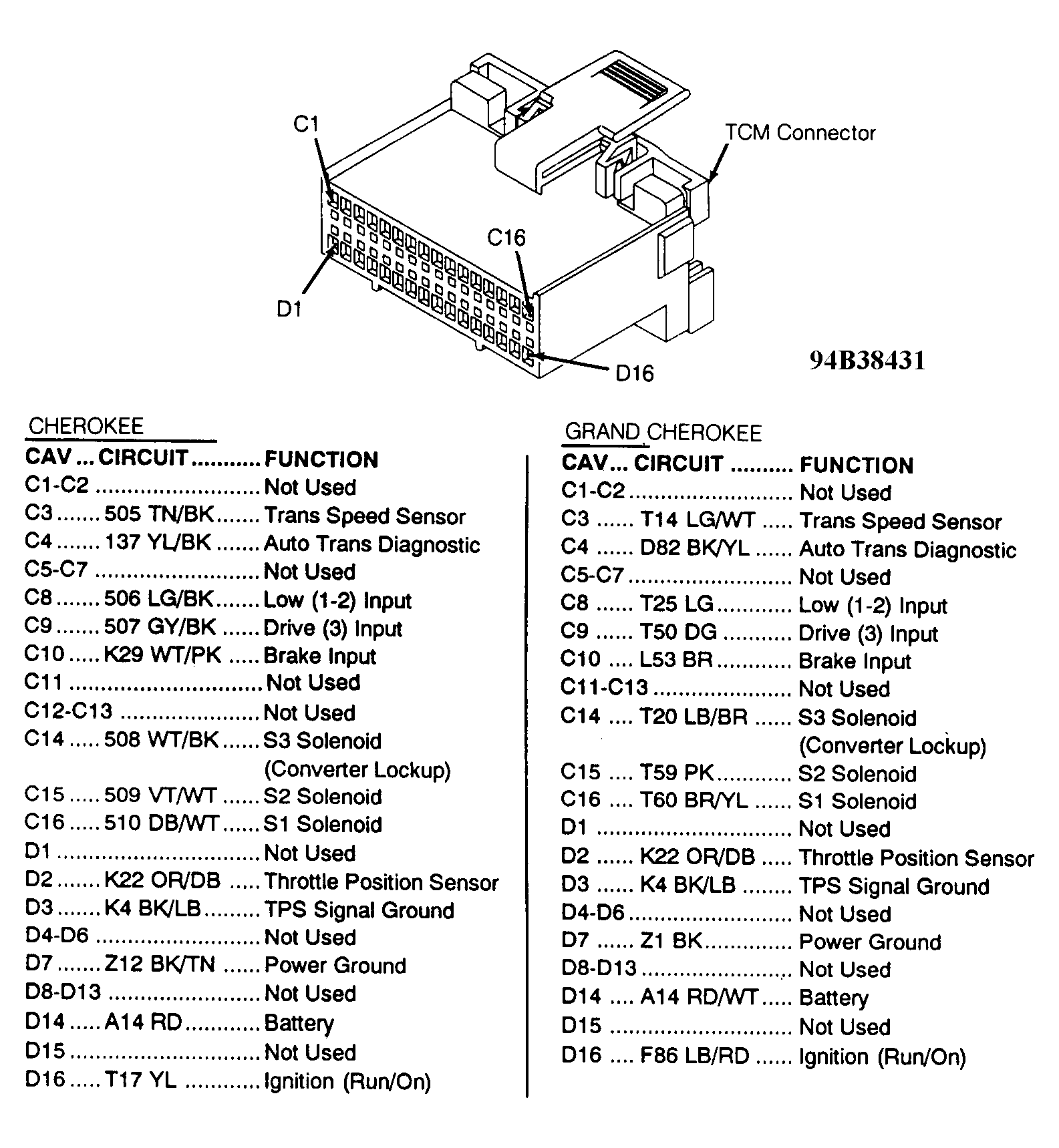

Fig 1: TCM Connector Terminals I.D., Circuits & Functions
G94B38431Courtesy of CHRYSLER CORP.
