Test No. 2 - Initialization Test

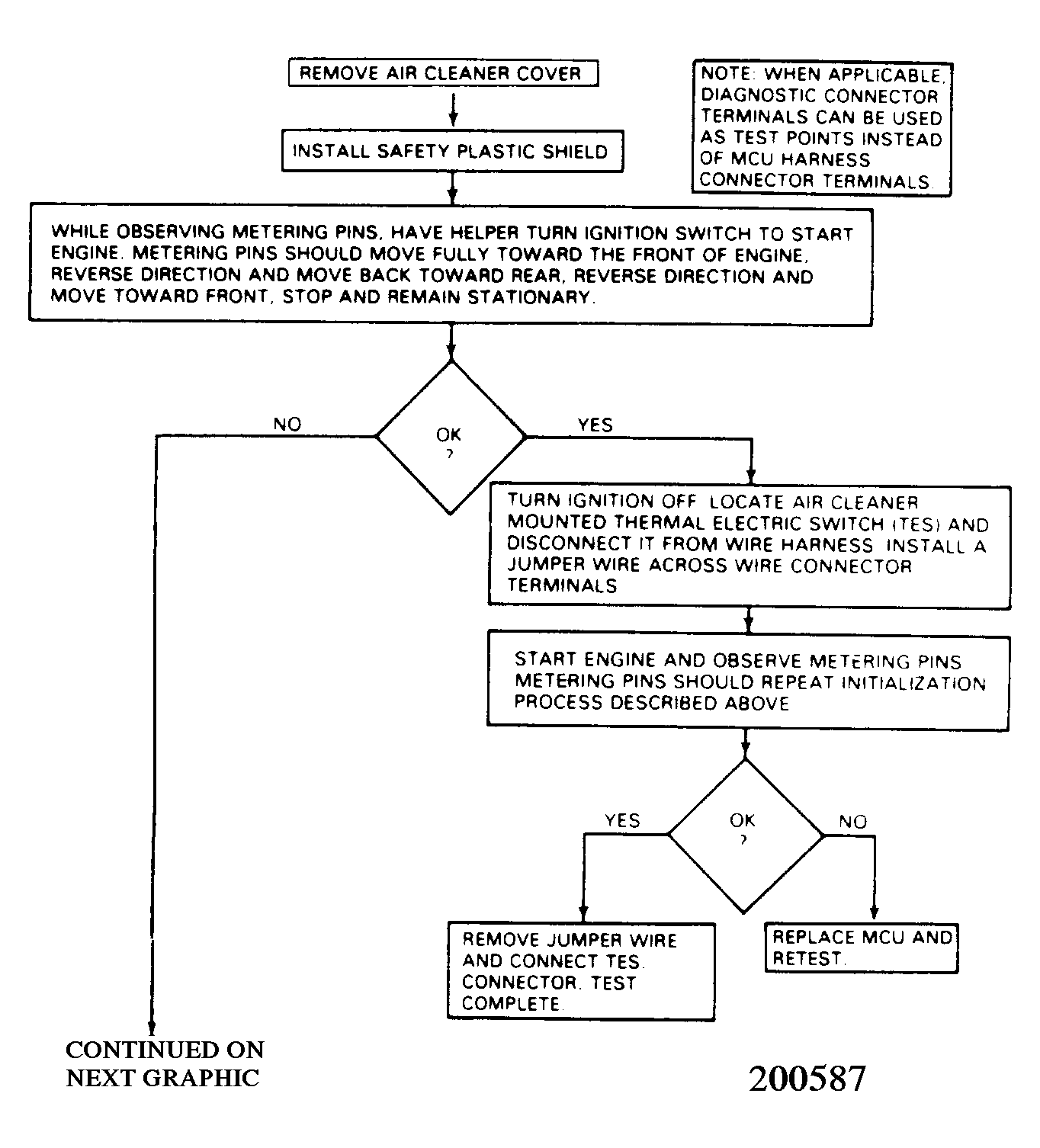

Fig 1: Test No. 2, Initialization Test (1 of 2)

G200587

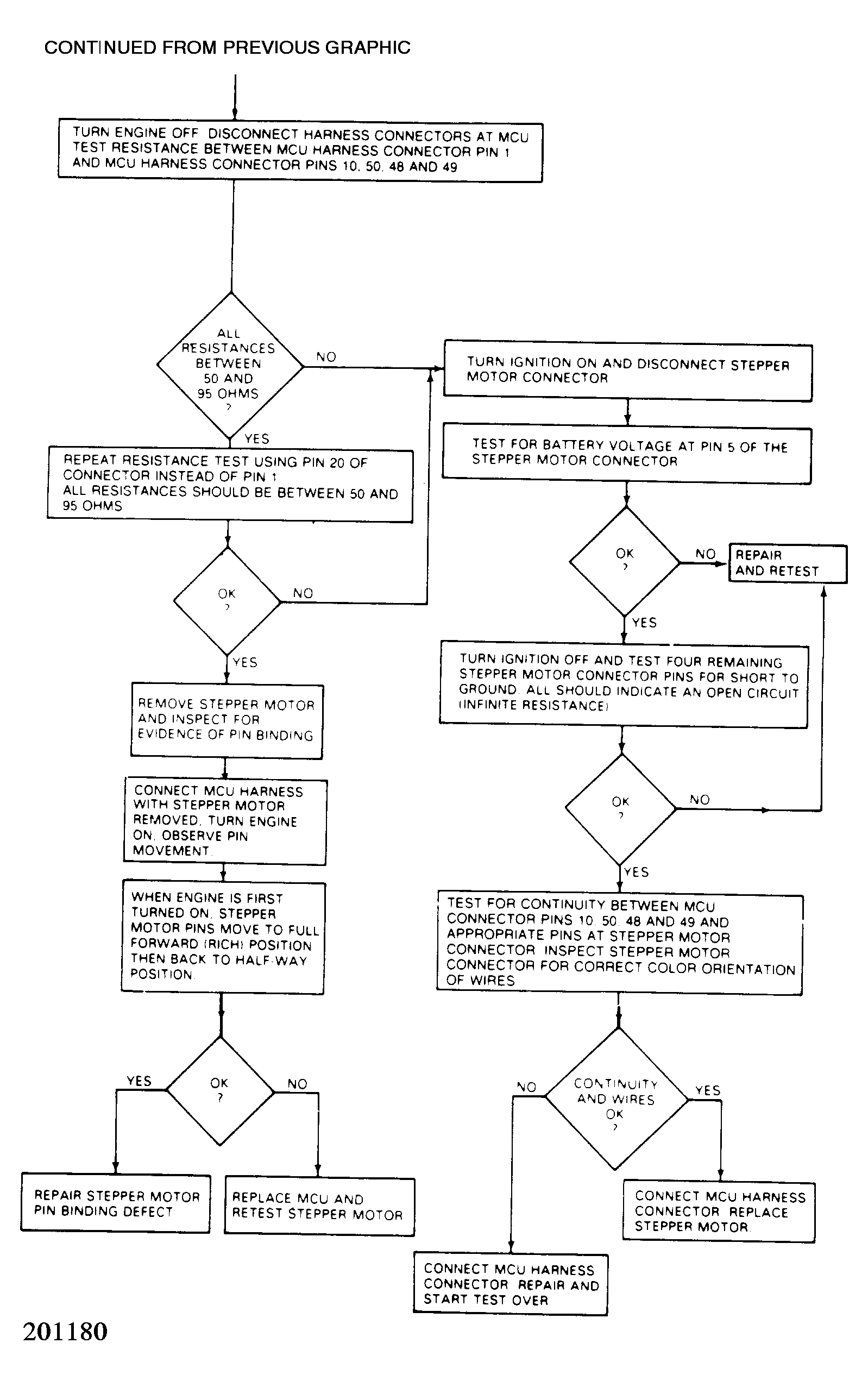

Fig 2: Test No. 2, Initialization Test (2 of 2)

G201180
