4.0L CEC System: Testing

NOTE: Refer to Fig 1 through Fig 3 for Testing information.

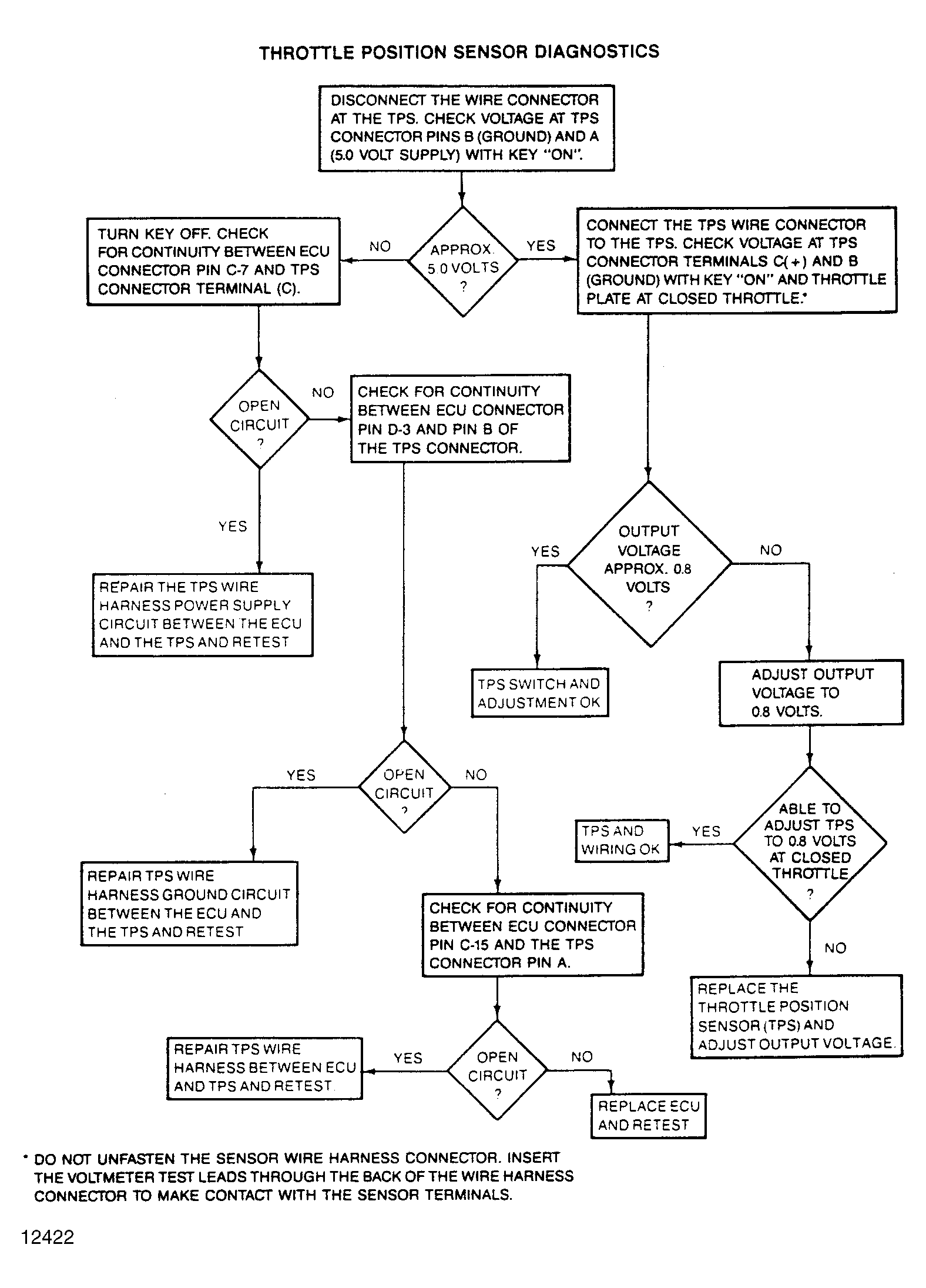

Fig 1: Throttle Position Sensor Diagnostics

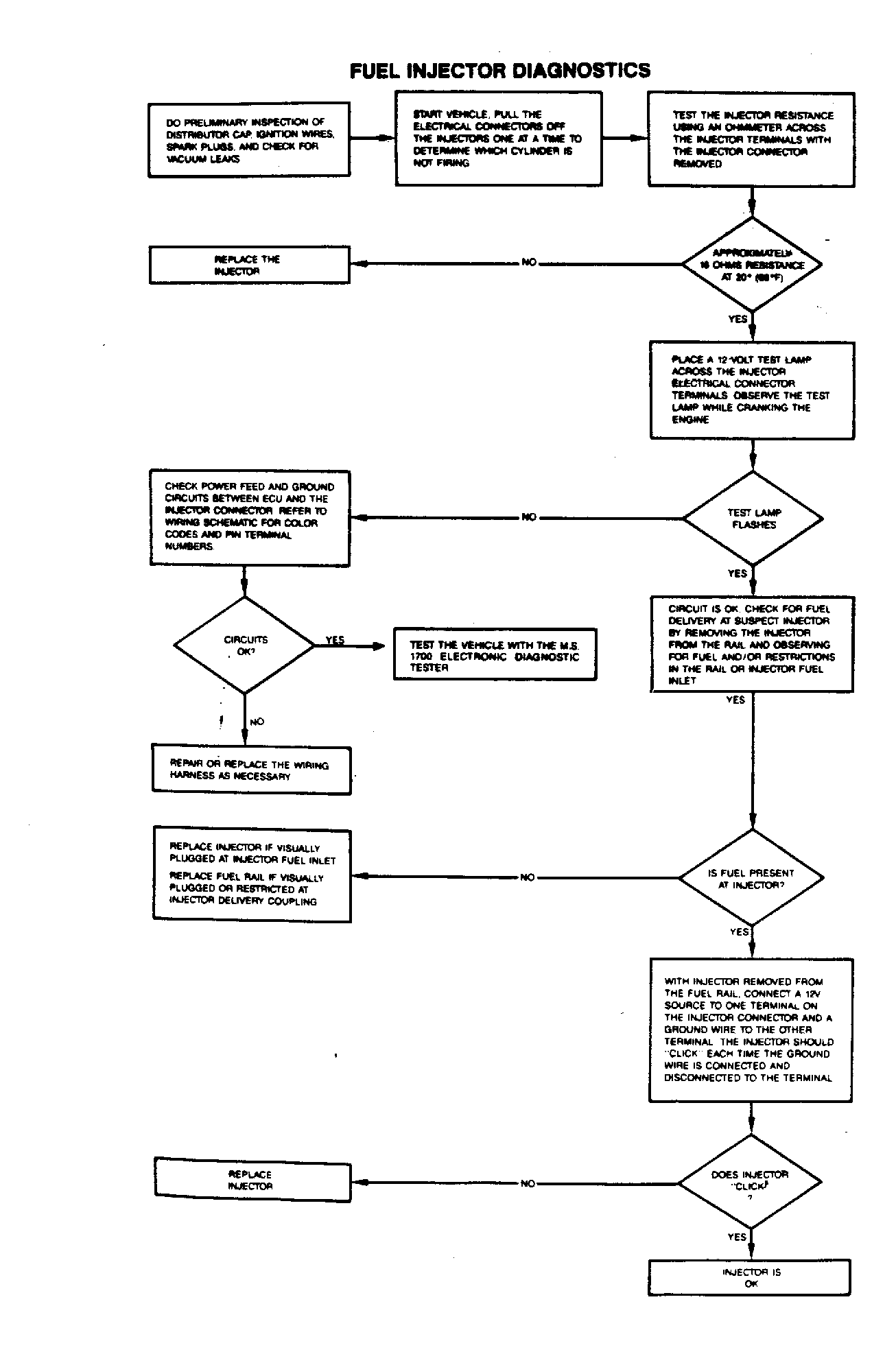

Fig 2: Fuel Injector Diagnostics

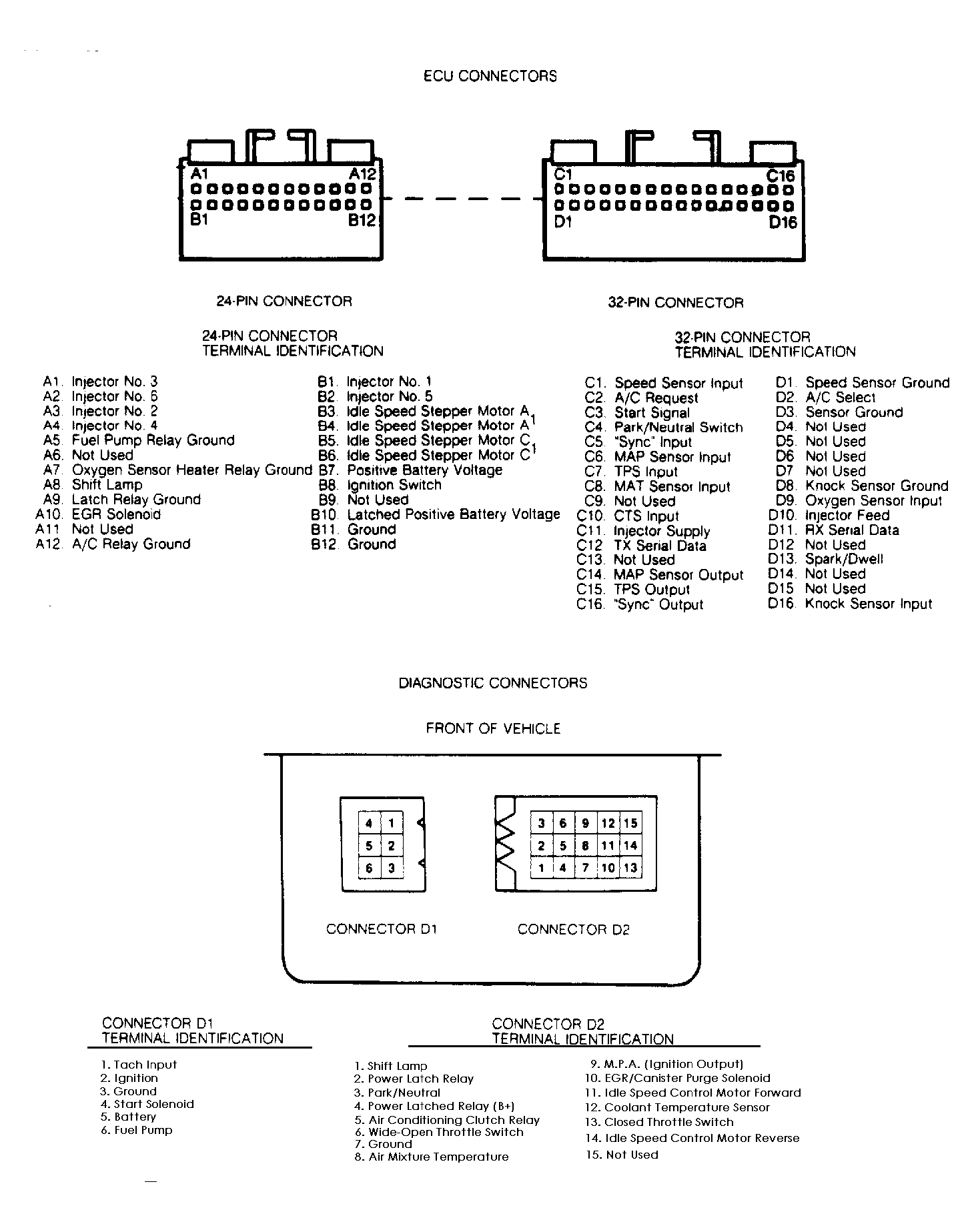

Fig 3: ECU Connector Pin & Diagnostic Connector Pin Identification
