Door Locks - Power: Testing: Switch

Using ohmmeter, test switches for continuity. Connect ohmmeter across terminals as shown. See Fig 1 . Continuity should exist between terminals in all positions.

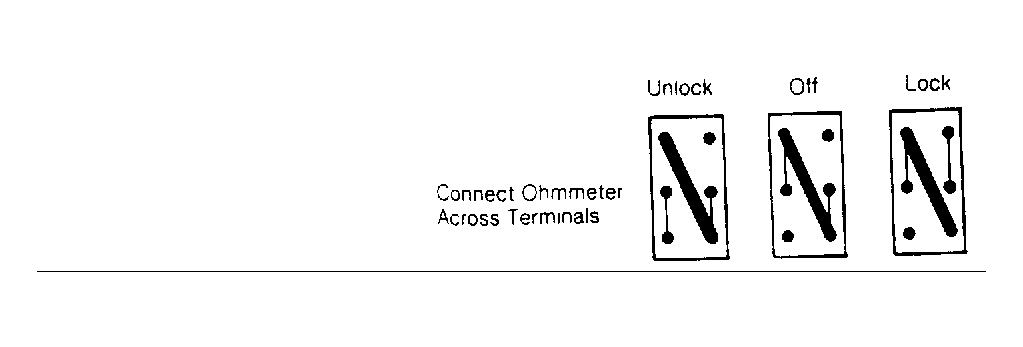

Fig 1: Checking Switch Continuity

Courtesy of CHRYSLER MOTORS.
