Fuel Injection System - TBI
›
Wiring Diagrams
Wiring Diagrams

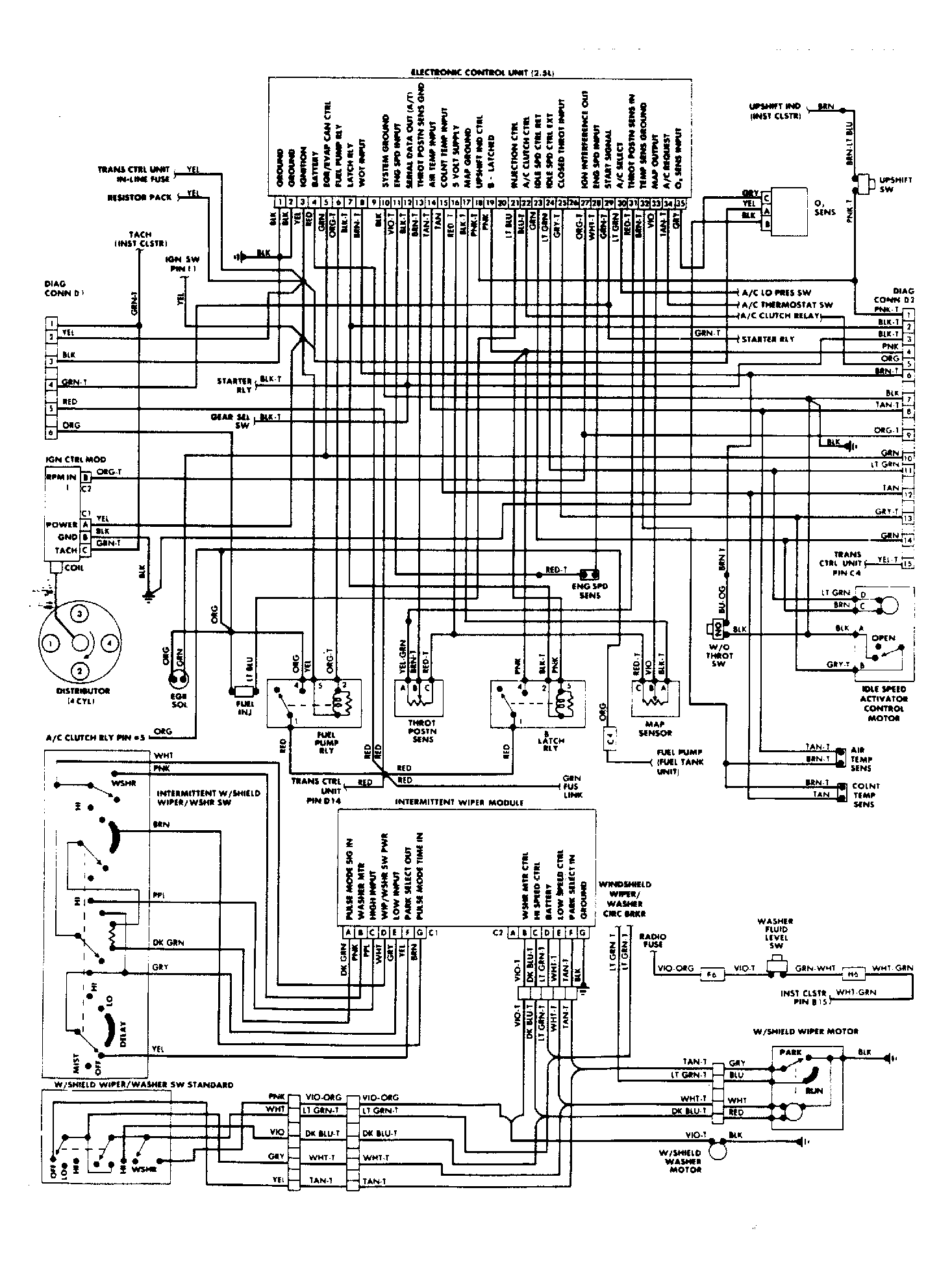

Fig 1: Cherokee, Comanche & Wagoneer Throttle Body Fuel Injection System Wiring Diagram

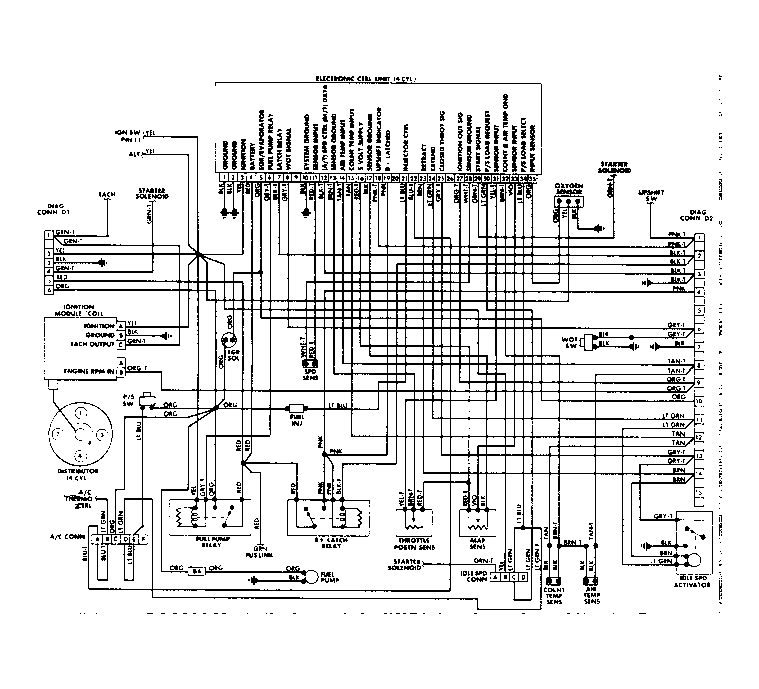

Fig 2: Wrangler Throttle Body Fuel Injection System Wiring Diagram
